Sakura Tissue-Tek Autowrite User Manual

3.6
Revised 3/04/11
SOFTWARE CONFIGURATION

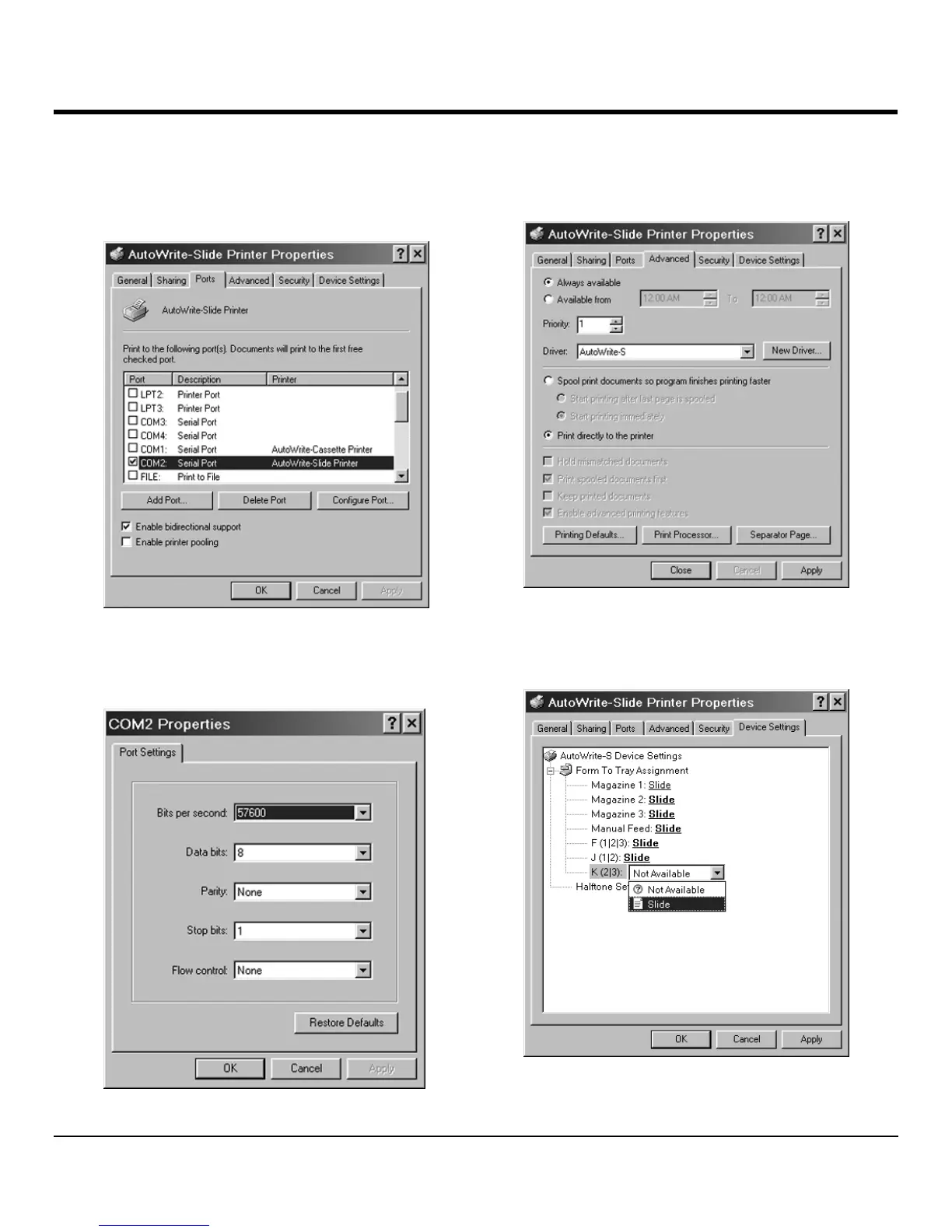

4. The port selected during installation (COM 2 shown
as example) must be highlighted. Select the box
Enable bidirectional support.
5. Click on Configure Port to open the COM2
properties. Set Baud Rate to 57600 . Leave all other
settings as shown and click on OK .
6. Select the Advanced tab and check Print directly to
the printer ; click Apply .
7. Click on the tab Device Settings and select the
slides as shown in the example, click on Apply and
then Close .

Sakura Tissue-Tek Autowrite Specifications

General

Brand	Sakura
Model	Tissue-Tek Autowrite
Category	Printer
Language	English
