INTRODUCTION
Print Sledge (Figure 1-E)
The print sledge retrieves the slide from the transfer
point and moves it quickly back and forth under the print
head printing directly on the slide. The print sledge then
transports the printed slide to the drying station.
Drying Station (Figure 1-G)
The slide is deposited into the drying station by the
print sledge. Warm air is gently blown on the slide to dry
the printed surface which prepares the printing for the UV
light cure.

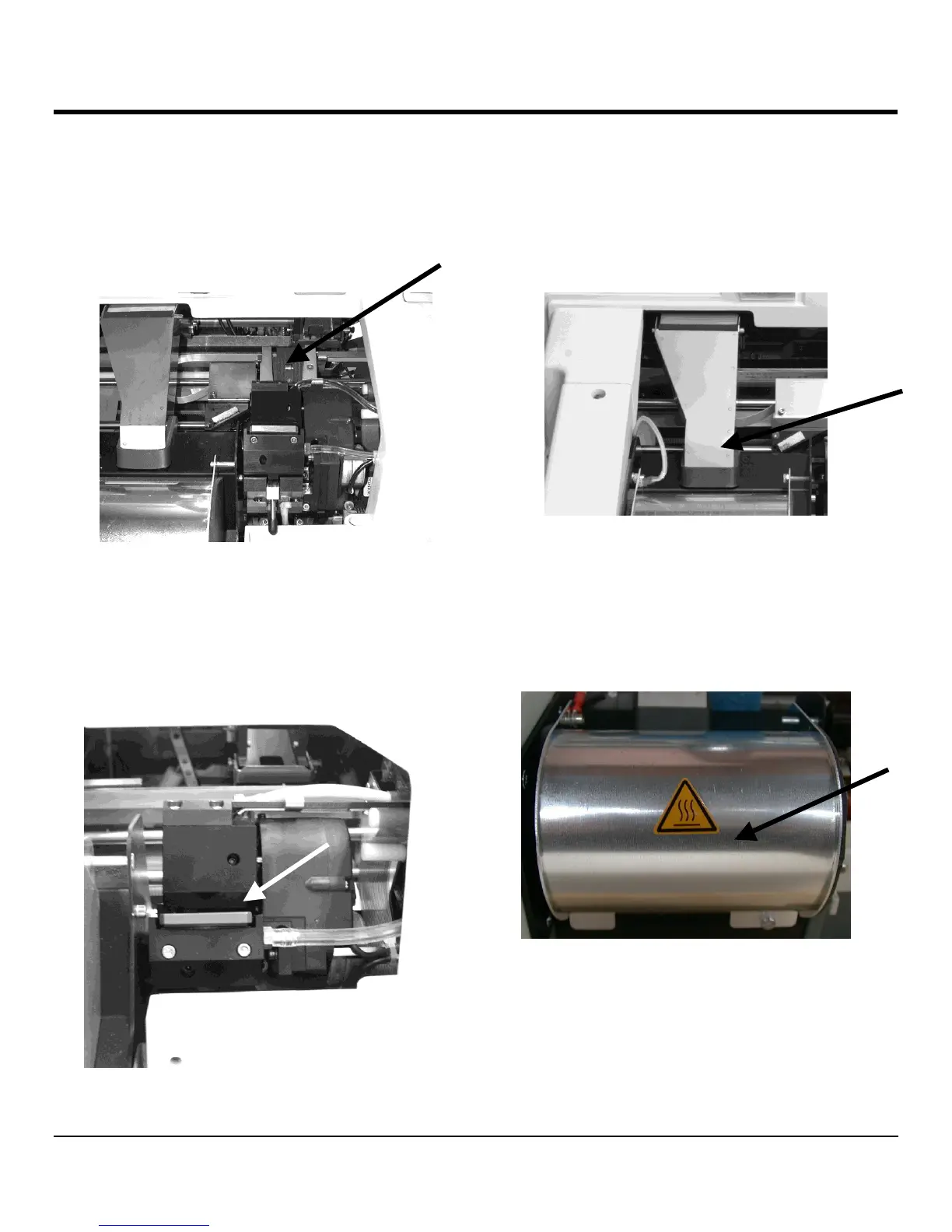

Figure 1-E
Print Head (Figure 1-F)
The print head delivers the ink by way of an ink jet,
producing clear, legible printing on the slide.
Figure 1-G
Reflective Cover (Figure 1-H)
The reflective cover protects the curing lamp from
damage and the operator from UV exposure.
Figure 1-H
Figure 1-F
