INSTALLATION & SETUP
2.8 Revised 3/30/2010
Exhaust Hose
By opening an adapter to connect an exhaust hose is
provided at the back of the system. A hose with a
diameter of 38 or 75 mm can be connected.
Options
• Exhaust hose set 1 (38 mm type): 38 mm hose (5
m), hose bands, cuffs (Figure 2-Y)
• Exhaust hose set 2 (75 mm type): 75 mm hose (5
m), hose bands, cuffs (Figure 2-Z)
Exhaust hose set 1
Exhaust hose set 2
Installing the Activated Carbon Filters
1. Press on the front of the fume control door to release
the lock, and then pull out the fume control door
(Figure 2-AA).
2. Place two new activated carbon cartridges in the
activated carbon cartridge storage area. If used
activated carbon cartridges are present, remove both
cartridges and replace them with new ones.
3. Push back the fume control unit door into the system
until it clicks into place.

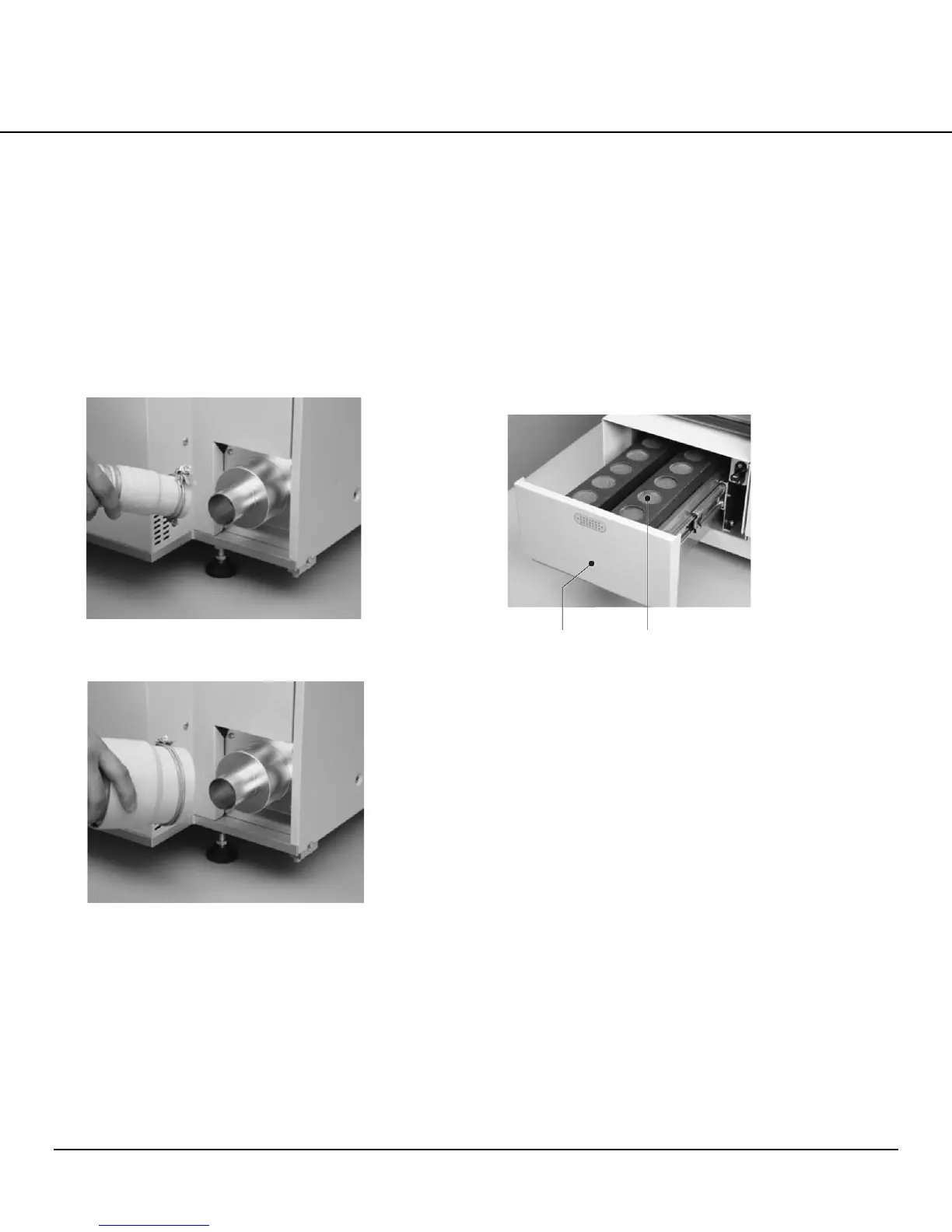

Figure 2-AA
Figure 2-Y
Figure 2-Z
Exhaust
part
Activated carbon cartridge and
storage area
