Sakura Tissue-Tek Glas g2 User Manual

Section 2
Revised 3/30/2010 2.7
Installation of Accessories and
Consumable Supplies
This section explains how to install the consumable
supplies.
Cover Glass Tray
1. Turn the power switch to OFF.
2. Open the cover.
3. Position the cover glass tray by aligning it with the
two pins provided on the side toward the front of the
instrument (Figure 2-U & 2-V).
NOTE: In certain situations such as when two cover
glasses are picked up together, the cover glass tray
prevents the cover glass or glasses that have dropped
during the retrieval operation from further dropping into the
system.
Slide Glass Sheet
1. Turn the power switch to OFF.
2. Open the cover.
3. Move the cover glass holder to the right.
4. Lift the receiving rack arm.
5. Place the sheet in the tray below the receiving rack
arm (Figure 2-W).
Link System
By opening the aperture provided in the right side
face of the system (Figure 2-X), it is possible to link the
system with the automatic stainer (Tissue-Tek
®
Prisma
™). For details on installing the link system,
consult the Sakura dealer.

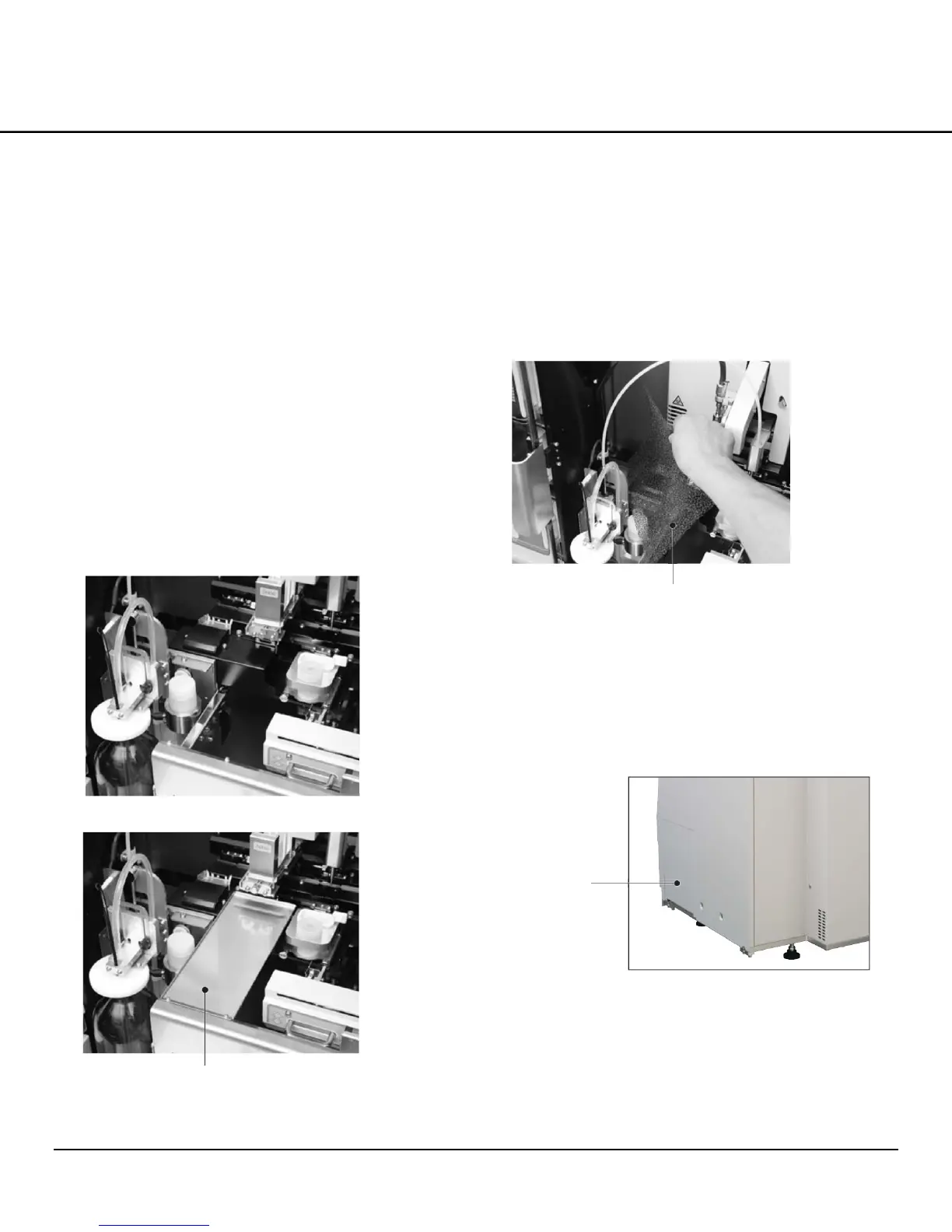

Figure 2-U
Figure 2-X
Figure 2-W
Figure 2-V
Cover glass tray
Aperture
Slide glass sheet
