Salda Smarty 2X V Series User Manual

16
Smarty 2X/3X V
www.salda.lt
• Installation should only be performed by qualied and trained sta󰀨.
• When connecting air ducts, consider the notices indicated on the casing of the unit.
• Before connecting to the air duct system, the connection openings of ventilation unit should be closed.
• When connecting the ducts , you should pay attention to the air ow direction indicated on the device housing.
• Do not connect the bends close to connection anges of the unit. The minimum distance of the straight air duct between the unit and the rst branch of
the air duct in the supply air duct must be 1xD, in air exhaust duct 3xD, where D is diameter of the air duct.
• It is recommended to use the accessories-holders. This will reduce vibration transmitted by the unit to the air duct system and environment.
• Enough space must be left for opening of the maintenance door and lter covers.
• If the installed ventilation unit is adherent to the wall, it may transmit noise vibrations to the premises. Though the level of noise caused by the fans is
admissible, it is recommended to mount the unit at the distance of 400 mm from the nearest wall. If it is not possible, the mounting of the unit is recom-
mended on the wall of the room where the level of noise is not important.
• Ducts are connected to the unit in such way that they could be easily disassembled and the heater could be removed from the unit when performing
service or repair works.
400 mm
L
2xL
Smarty 2X V Smarty 3X V
40
mm
c
b
90
90
d
a
10
mm
10
mm
a
10
mm
b
c
14 mm
40
mm
c
b
90
90
d
a
10
mm
10
mm
a
10
mm
b
c
14 mm
40
mm
c
b
90
90
d
a
10
mm
10
mm
a
10
mm
b
c
14 mm

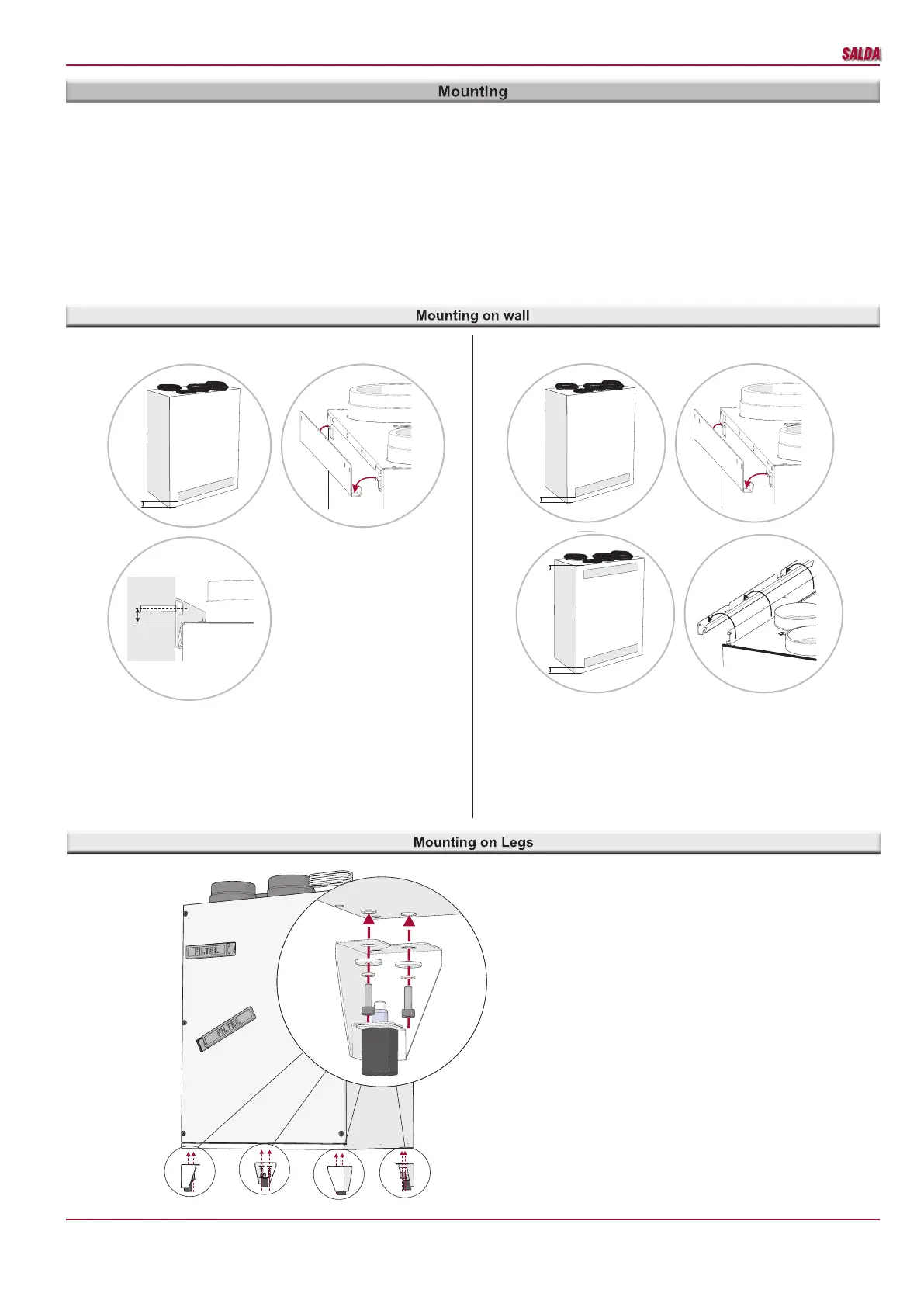

Unit mounting on wall:
a) To reduce the vibration stick the insulating tape on the unit‘s casing
side which touches the wall before mounting the unit on the wall.
b) The unit has to be mounted on the mounting brackets.
c) AHU mounting drawing.
Unit mounting on wall:
a) To reduce the vibration stick the insulating tape on the unit‘s casing
side which touches the wall before mounting the unit on the wall.
b) The unit has to be mounted on the mounting brackets.
c) AHU mounting drawing.
d) After the unit is mounted two wall bracket tabs has to be folded to 90
o
angle by pliers to avoid the accident fall of the unit.
Legs are optional and not included in standard package.
