Control board functions and logics are designed according to Standards DIN 1946-6:2009-05 and EN 12098-3.
MCB control board can be controlled by: Ptouch remote control panel, Stouch remote control panel or MB - GATEWAY web application. Description of
remote control panel functions is provided in the remote control panel technical documentation or on the website www.salda.lt.
1
2
3
3
II
IV
I
VI
III
V
VII
VIII

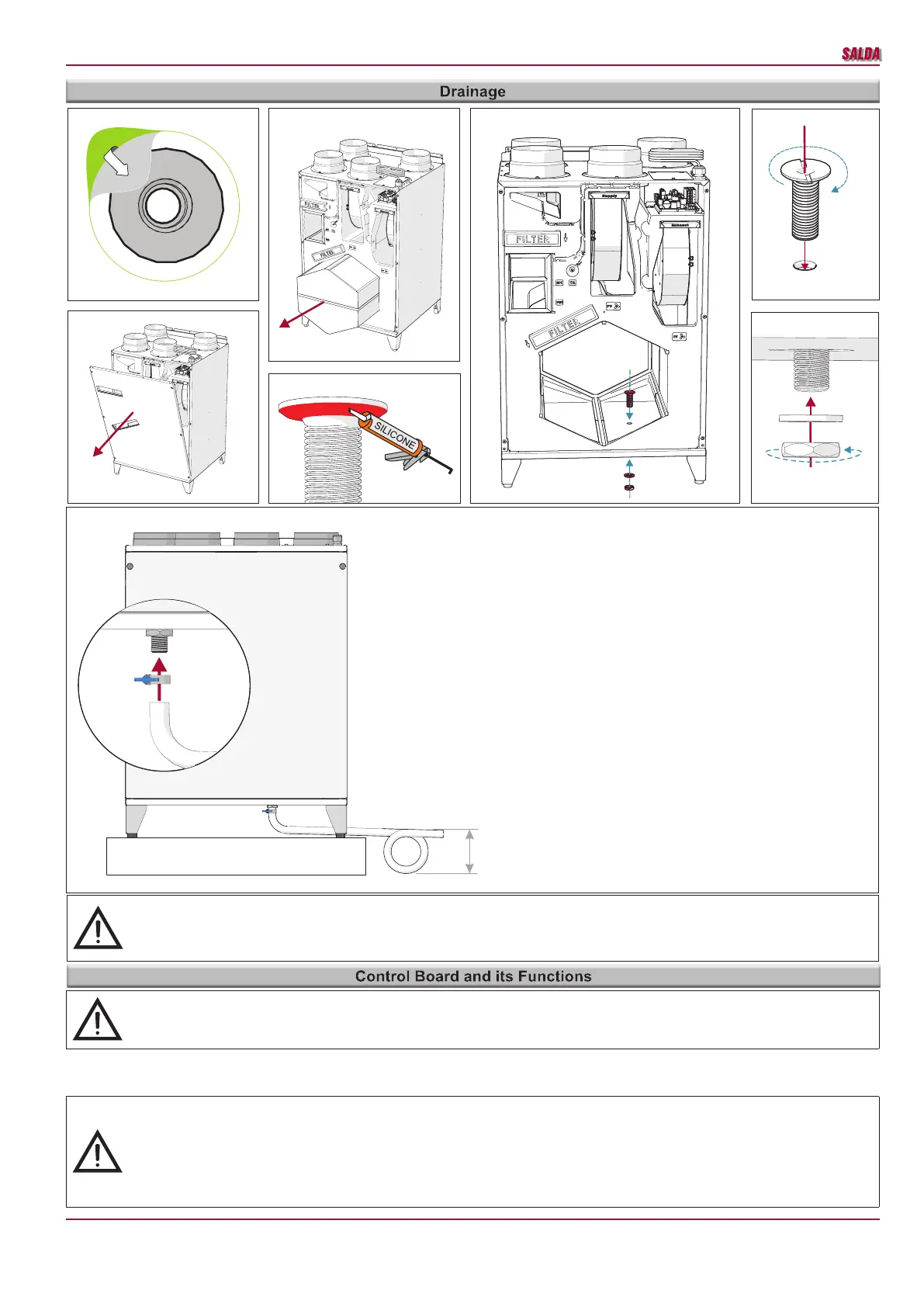

It’s required to connect condensate drainage system after hanging or placement of
air handling unit. Insert condensate draining into AHU. Condensate draining must
be lubricated with sealant (I-VII). Then place plastic washer on the bottom and tight-
en with counter nut (VII). Pipe (3) (metal pipe should be connected with G3/8 elbow,
plastic pipe – with G3/8 elbow or rubber hose – with strap if the unit is placed on
the legs, in other cases condensate hose can be connected in any direction) should
be connected by following order: AHU (1), pipe (2), and drainage system. Pipes (3)
should be bended not less than 3° degrees (1 meter of pipe must be bended 60 mm
downwards)! Before turning on AHU (1) the draining system should be lled up with
at least 0.5 l of water (pipe loop (3) must be always lled with water), also check if
water reaches sewerage system! In other case premise can be ooded during AHU
operation!
Draining system must be installed in the premise where the temperature is not lower
than 1°C. If temperature falls below 0°C the draining system should be isolated with
thermal isolation. The pipe loop 2) not necessarily must be mounted below the AHU
(1), but below the AHU (1) level.
Note. If the collector is situated upstream, install a system with a condensate pump
(o󰀨ered as an accessory).
D = min 150 mm
Before every heating season the condensate tube shall be
lled with water as indicated during the rst start-up! Before
every heating season the condensate tube shall be lled
with water as indicated during the rst start-up!
The unit can be congured only with Ptouch remote control
panel or MB-Gateway web application.
The following control board functions can be fully controlled
only with Ptouch remote control panel or MB-Gateway web
application. In case of Stouch remote control panel use the
description of remote control panel functions for MCB control
board.
Air Handling Unit uses two types of boards, depending on the
selected product version: miniMCB or miniMCB basic. Their
functionality is di󰀨erent, thus check the board name by the
product version.
