Salda Smarty 2X V Series User Manual

32
Smarty 2X/3X V
www.salda.lt
DRAWN BY
CHECKED BY
SIGNATUREDUTIES / NAME DATE
UAB"SALDA"
Drawing #
Book #
CHECKED BY
1 1 2 3 4 4 5 6 7 7
EI D. Aleksandravičius
EI A. Šklenikas
Aut. 219.1017E
219.1017.0.1.2-PS

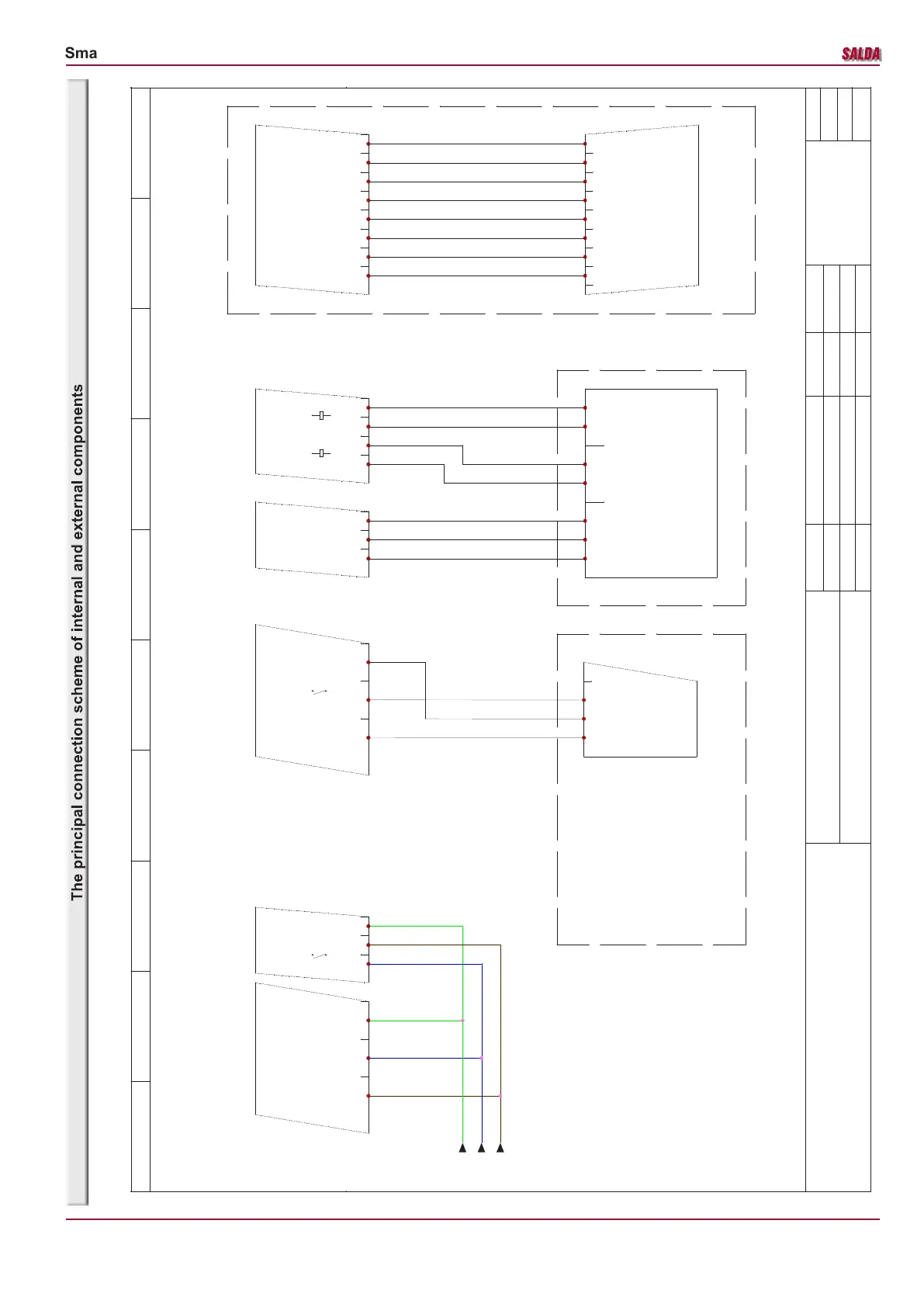

Principle connection scheme
1
02
2016-03-22
2016-03-22 2016-03-22
Punktyrine linija pažymėtus komponentus ir kabelius pajungia SALDA arba vartotojas.
Components and cables marked with the dash line connected by SALDA or customer.
PE
N
L
KE1
EKA ...-1F
Electrical heater max. 0,6kW
Power in
EX1 module power, control.
X22:1 - I2C_SCL
X22:2 - I2C_SDA
X22:3 - GND
X22:4 - 2.5VDC
X22:5 - 3.3VDC
X22:6 - 12VDC
X22:7 - 24VDC
X22:8 - GND
miniEX1 V0.2
Electrical preheater DI5 - automatic protection DI6 - manual protection
X17:1 - L(L2)
X17:2 - N(L1)
X17:3 - PE
-N1
miniMCB V0.3
X10:1 - PE
X10:2 - DO1(L(L2))
X10:3 - N(L1)
-N1
miniMCB V0.3
X11:1 -N(L1)
X11:2 - L(L2)
X11:3 - PE
-N1
miniMCB V0.3
X12:1 - PE
X12:2 - N(L1)
X12:3 - DO2(L(L2))
-N1
miniMCB V0.3
X5:1 - DI5
X5:2 - +12VDC
X5:3 - DI6
X5:4 - +12VDC
-N1
miniMCB V0.3
X8:1 - GND
X8:2 - 24VDC_P
X8:3 - 12VDC
X8:4 - 3.3VDC
X8:5 - 2.5VDC_REF
X8:6 - GND
X8:7 - I2C_CDA
X8:8 - I2C_SCL
-N1
miniMCB V0.3
PE
N
L1
AT1
AT1
RT1
RT1
-PE1
Internal or external preheater
Control ON/OFF
Power up to 2kW, 1f/230V
01-7 01-7 01-7
