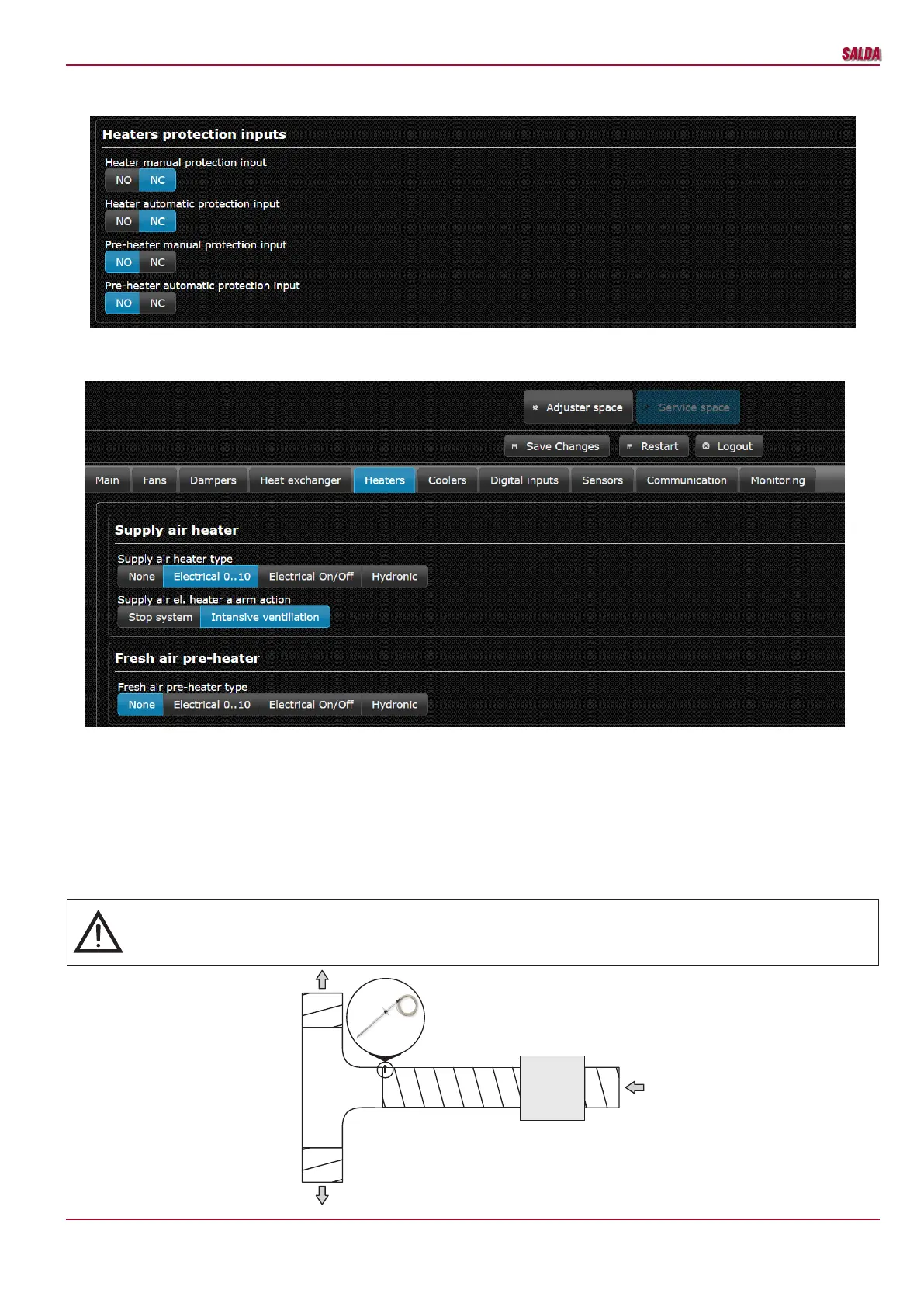

• Service -> Digital inputs -> Heaters protection inputs
Set the manual and automated protection statuses of the heater or pre-heater – according to the standards, it should be NC.
• Service -> Heaters -> Supply air heater or Fresh air pre-heater
Set whether it is a heater or pre-heater as well as the type of the heater or pre-heater and actions to be performed in case of the activation of a danger
signal.
Settings with the Ptouch control panel
1. Go to Menu/Service/Heaters. Enter the password (the initial password – 4444);
2. Select Control Position in the settings “Heater on basic” or “Pre-heater on basic”.
3. Go to Menu/Service/Heaters/Heater Set type “E010” 0-10 control, EONOFF On/O󰀨 control, NONE – heater switch-o󰀨, and also specify the
system’s response to danger.
4. Go to Menu/Service/Heaters/Preheater. Set type “E010” 0-10 control, EONOFF On/O󰀨 control, NONE – heater, pre-heater switch-o󰀨. Set the
system’s response to danger.
5. Go to Menu/Service/Digital inputs/Heater protection. Set the manual and automated protection statuses – according to the standards, it should
be NC.
6. Go to Menu/Service/Digital inputs/Preheater protection. Set the manual and automated protection statuses – as a standard, it should be NC.
EKA
TJ
When using the supply air heater, the supply air sensor
(SS) shall be installed downstream the heater (or cool-
er) as the sensor cable allows or until the rst branch-
ing, bend of the air transportation system.
