Salus RT510RF Installation Manual

Unscrew the backplate of the RXRT510 receiver in order to do the wiring connections. After that please
switch the receiver ON.
ON
AUTO
OFF
MANUAL
COMNO L N
COMNO L N
Terminal Description Receiver Terminals
NO
COM
L
N
Switch Terminal
Common Switch Terminal
Mains Live (230VAC)
Mains Neutral
1. RXRT510 Receiver
• 5/2 days or 24h programming flexibility
• Built-in start up programming for quick installation
• Volt free contacts
• Frost protection
• Large, easy to read LCD with blue backlight
• Burner on symbol
• User friendly
• Stylish casing
• Holiday Mode
• Boost Function
NO COM L N
L N

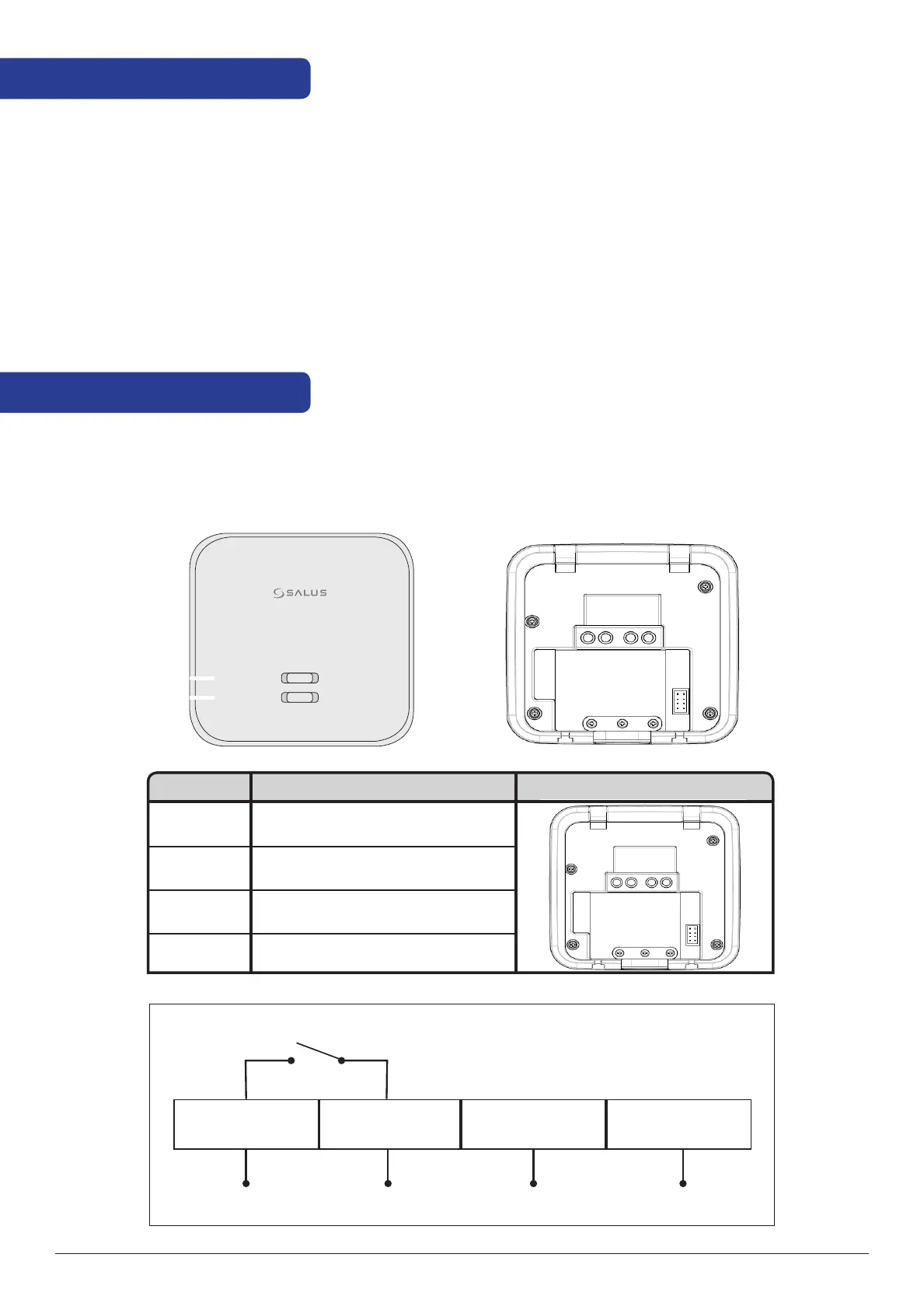

Electrical diagram
Installation
Features
RT510RF Installation Manual 05

Salus RT510RF Specifications

General

Power Supply	2 x AA batteries
Frequency	868 MHz
Temperature Range	5°C to 35°C
Display	LCD
Programming	7-day programmable
Temperature Control Accuracy	±0.5°C
Hysteresis	±0.5°C
Control Algorithm	TPI
Operating Modes	Manual, Holiday
Compatibility	Combi Boilers
Programmable Periods	6 periods per day
