Insert the batteries into the thermostat. Please use 2 AA batteries.
Power up
2. RT510RF Thermostat
Button Description for RXRT510 Receiver
Button Function
ON The receiver is enabled, ready for use.
OFF The receiver is disabled, will not function.
AUTO The receiver will switch on and o automatically,
as operated by the thermostat.
MANUAL Providing ON is selected,the receiver will switch
on continuously, overriding the thermostat.
ON
AUTO
OFF
MANUAL
Note: Please make sure to first wire up and turn on the receiver. After that insert the batteries into the
thermostat and follow the installation steps.

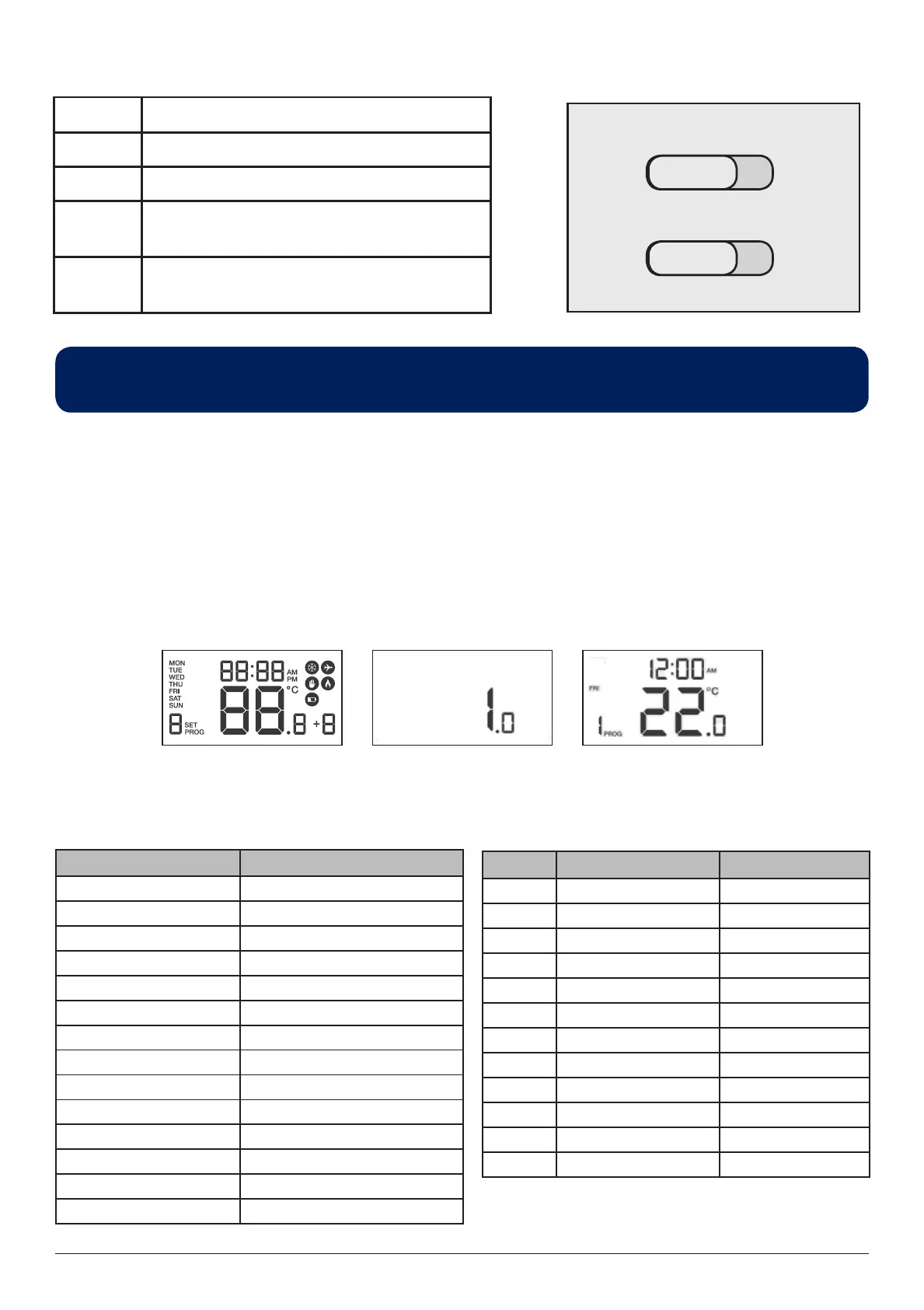

After power up, the thermostat is reset. During system reset, all LCD icons are displayed for 2 seconds and the
keys are locked. After that, all keys are unlocked and the thermostat is initialized. Then software version is shown.
The typical reset display is shown below.
The following tables show the default settings of the RT510 thermostat after Power on, or after Reset button is
pressed:
Function Status after Reset
Operation Mode Normal mode
Room Temperature 22.0°C, to be renewed within 5 seconds
°C indicator On
Clock 12:00
AM/PM indicator AM
Program Default factory setting
Setpoint Temperature Default factory setting
Program Number indicator 1
SET indicator Off
PROG indicator Off
Frost Protection indicator Off
Heat indicator Off
Low-Battery Warning indicator Off, to be renewed within 5 seconds
Output Relay Off
Program Weekday (M to F) Weekend (SA to SU)
1 Time: 6:00am Time: 8:00am
Setpoint Temp: 21.0°C Setpoint Temp: 21.0°C
2 Time: 8:00am Time: 10:00am
Setpoint Temp: 14.0°C Setpoint Temp: 19.0°C
3 Time: 12:00pm Time: 12:00pm
Setpoint Temp: 14.0°C Setpoint Temp: 19.0°C
4 Time: 2:00pm Time: 2:00pm
Setpoint Temp: 14.0°C Setpoint Temp: 19.0°C
5 Time: 6:00pm Time: 6:00pm
Setpoint Temp: 21.0°C Setpoint Temp: 21.0°C
6 Time: 10:00pm Time: 10:00pm
Setpoint Temp: 14.0°C Setpoint Temp: 14.0°C
06 RT510RF Installation Manual
