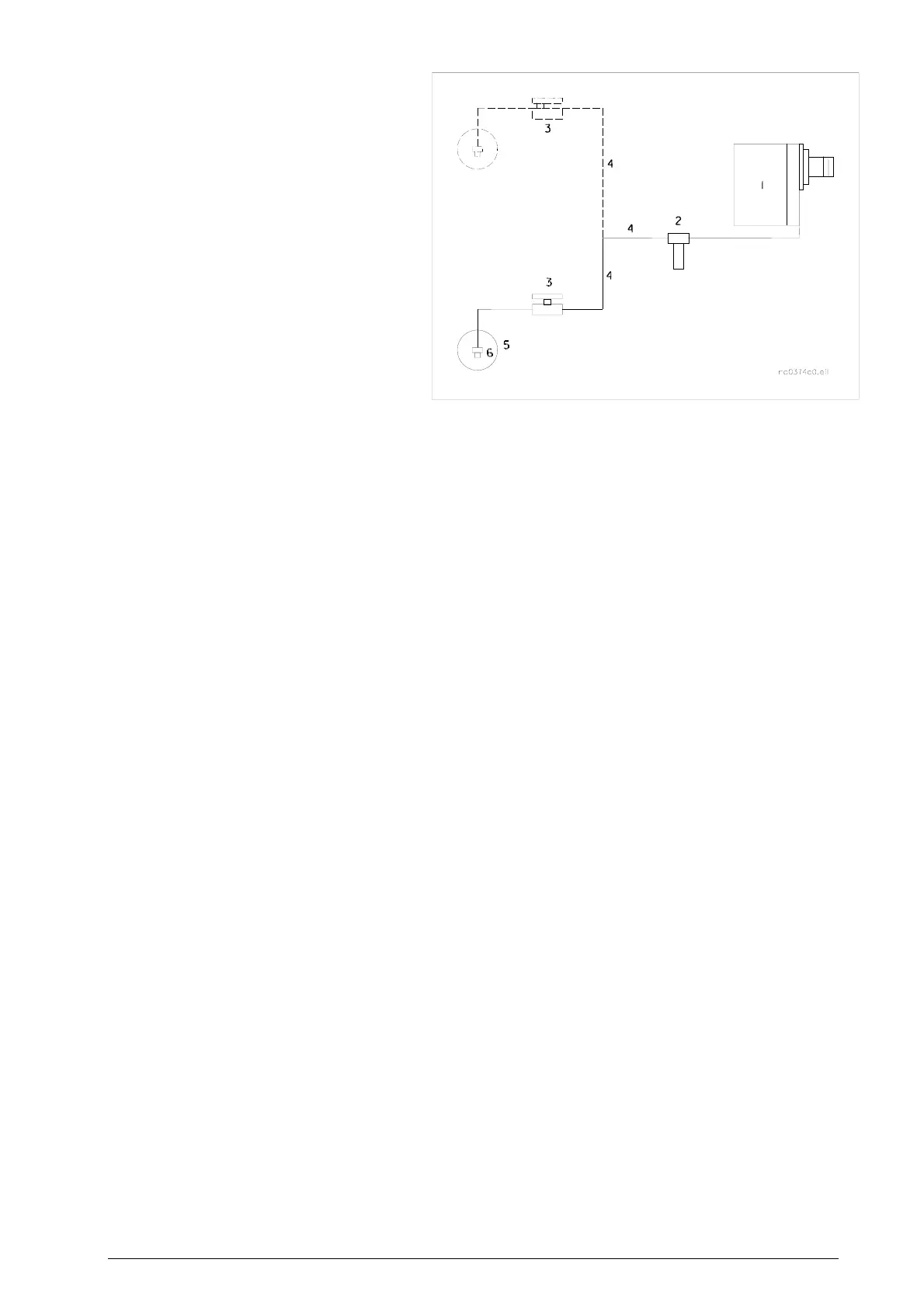

1.- Burner
2.- Filter
3.- Closing valve
4.- Vacuum pipe
5.- Diesel tank
6.- Vacuum valve
The diesel inlet into the oven is shown in Figs. 3 and 4, point 2.
The total length of pipes should be able of withstanding 1 lbs/ft2 (0.5 Kg/cm2) of loss of head during
the vacuum process. If the loss of head is higher, burner's pump might deteriorate.
NOTE: When dealing with pressurized gas-oil installations the maximum pressure supply must
be 0.5 kg/cm2. A pressure gauge must be fitted for the purpose.
