2.4 AIS 3410 in CHARTPILOT Stand-alone Systems

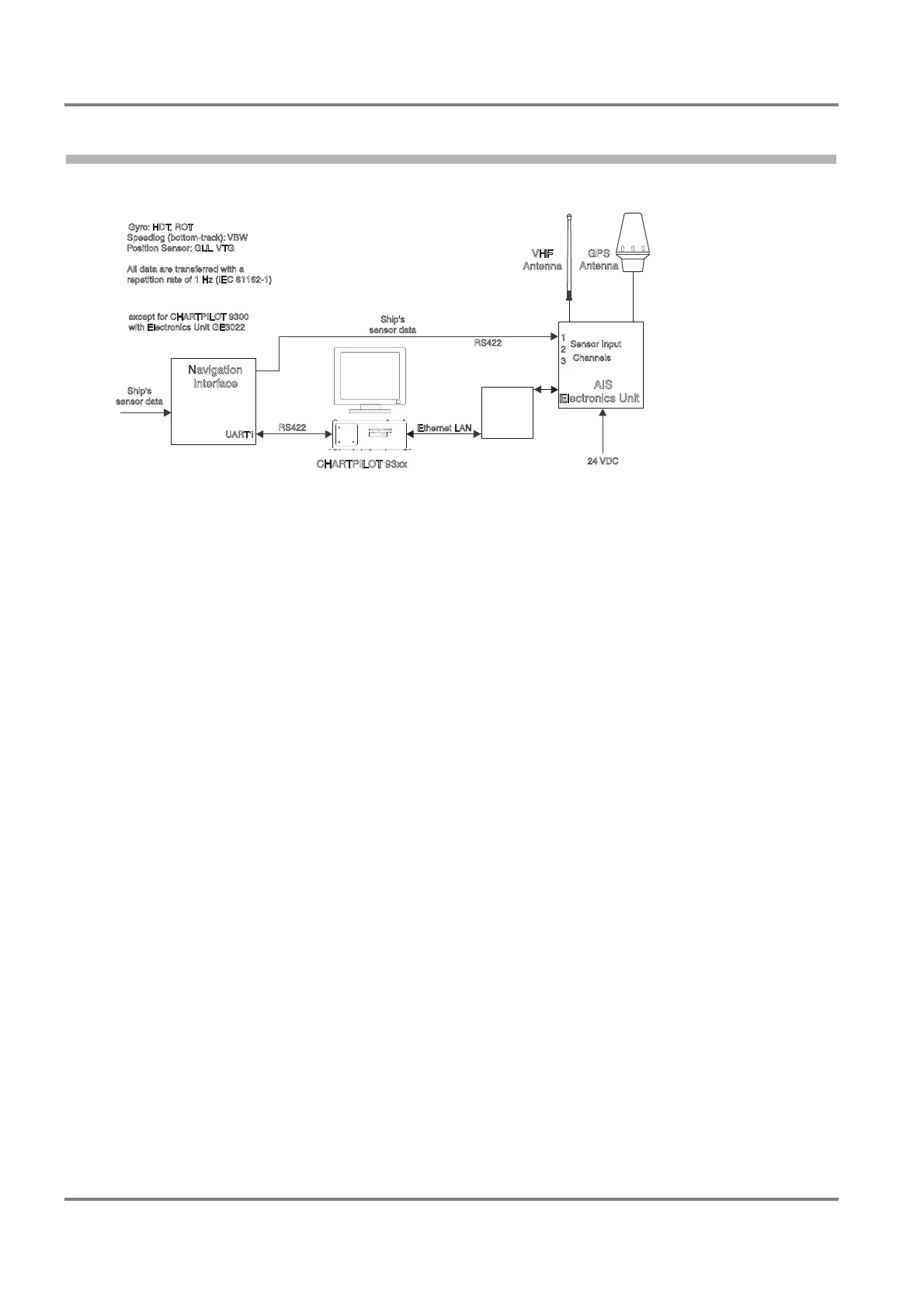

Fig. 2-3 AIS 3410 with CHARTPILOT stand-alone
The AIS 3410 is connected to the CHARTPILOT via Ethernet LAN. The ship’s sensors are connected to
the Navigation Interface. The sensor data are transferred to the CHARTPILOT via an RS422 interface.
NOTE:
If the AIS Electronics Unit receives the ship’s sensor data from Ship’s Interface, the output interfaces of
the Ship’s Interface must be configured as follows:
- Select "IEC 61162-1 edition 3, 04/2007 (NMEA0183 version 3.01)" as driver
- Set a repetition interval of 1 s for the following telegrams:
-GLL
-VTG
- HDT
-ROT
- VBW (if bottom-track log is available)
VHF
Antenna
CHARTPILOT 93xx
Ethernet LAN
Ship's
sensor data
Ship's
sensor data
RS422
RS422
UART1
AIS
Electronics Unit
Navigation
Interface
GPS
Antenna
Sensor Input
Channels
1
2
3
Gyro: HDT, ROT
Speedlog (bottom-track): VBW
Position Sensor: GLL, VTG
All data are transferred with a
repetition rate of 1 Hz (IEC 61162-1)
except for CHARTPILOT 9300
with Electronics Unit GE3022
24 VDC
Media
Converter
RJ-45
BNC
*
*
**
**
