3.2.2 Recommendations Concerning the Installation of the Electronics Unit
The Electronics Unit should be mounted on a vertical bulkhead. A distance of at least 300 mm from other
devices must be ensured around the housing for sufficient air circulation. See also
Section 10, Outline
Drawings .
3.2.3 Recommendations Concerning the Installation of the Antennas

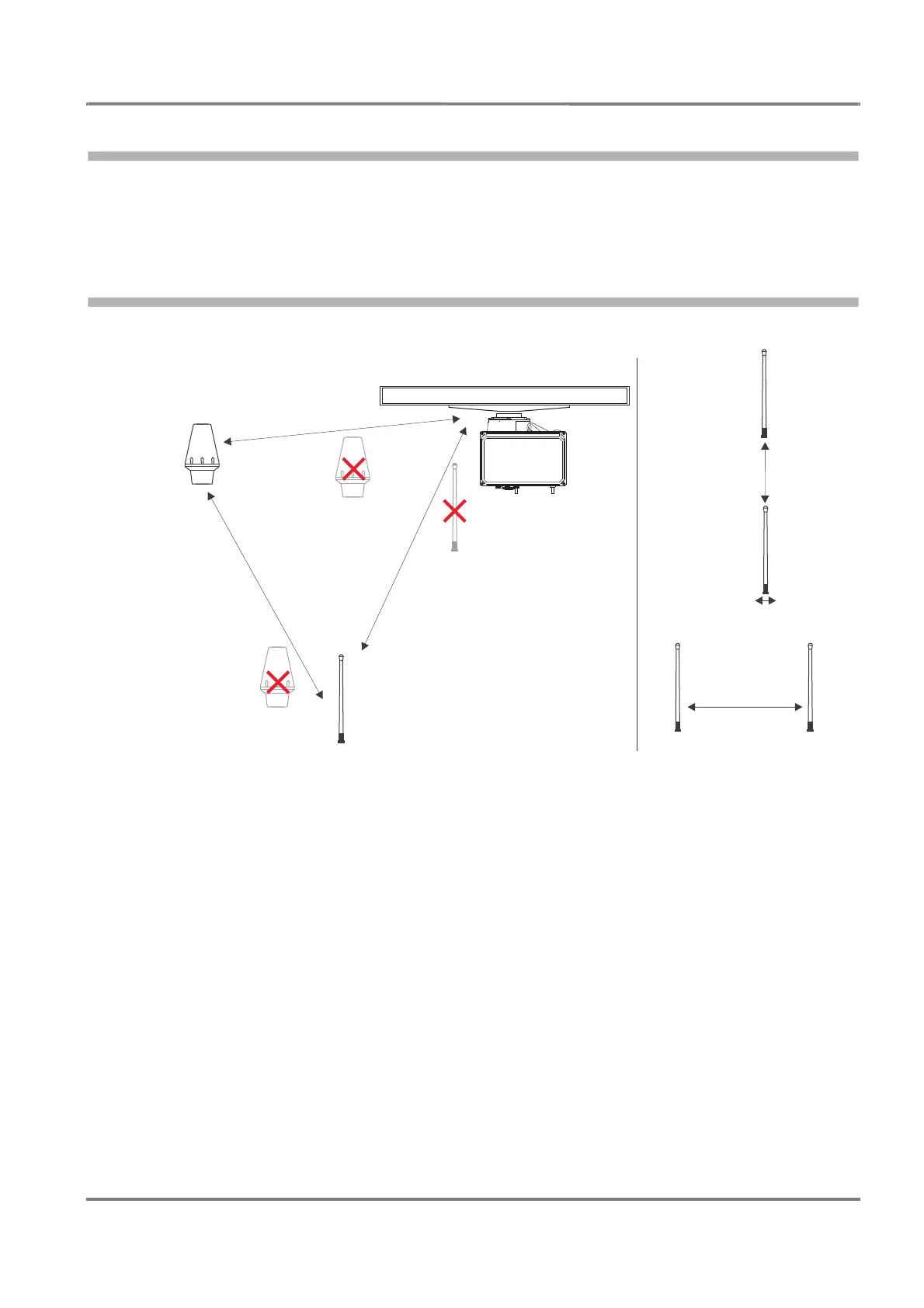

Fig. 3-2 Minimum distances for GPS and VHF Antenna
VHF
Antenna
VHF
Antenna
AIS VHF
Antenna
AIS VHF
Antenna
Primary
radiotelephone
VHF Antenna
Primary
radiotelephone
VHF Antenna
Primary
radiotelephone
VHF Antenna
Primary
radiotelephone
VHF Antenna
AIS
VHF Antenna
AIS
VHF Antenna
or
>3 m
>3 m
>2 m
0 m
>10 m
>3 m
GPS
Antenna
GPS
Antenna
