AIS 3410, Electronics Unit
ED3047G842 / 01 (2009-08)
Technical Manual
7 Technical Data
7.2 Performance
t_ue_e08.fm / 27.08.09
60

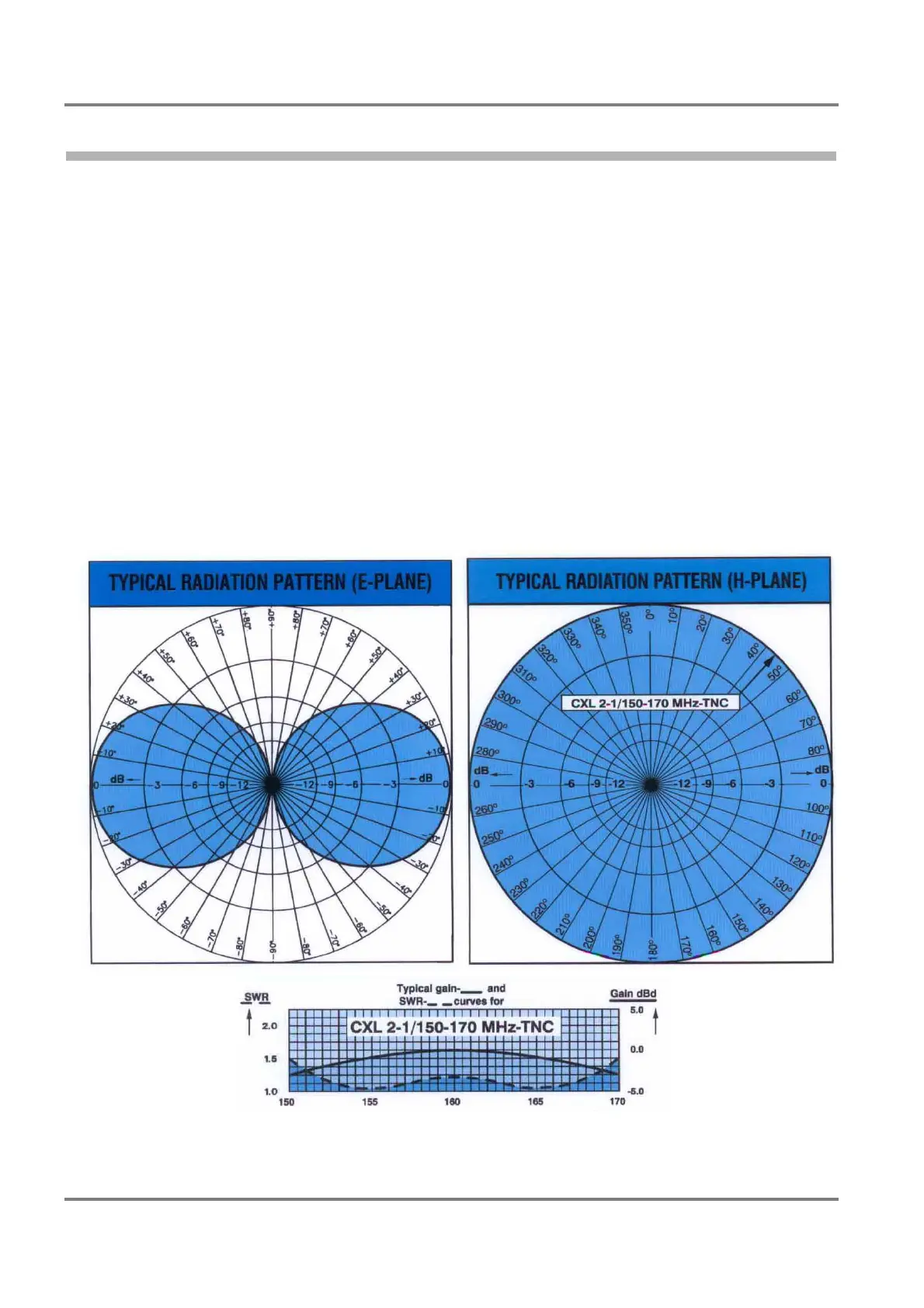

7.2.2 Performance Data of the VHF Antenna CLX 2-1/150-170 MHz
Antenna type: ½λ coaxial, broad band
Frequency: 150...170 MHz
Impedance: Nom. 50 Ω
Polarization: Vertical
Gain: 2 dBi, 0 dBd
Bandwith: 20 MHz
SWR: < 1.5
Max. power: 150 W
Connector: TNC female
Wind load: 21.8 (at 150 km/h)
Material: Whip = Glassfibre
Colour: Marine white
Total length: Approx. 1.2 m
Weight: Approx. 340 g
Mounting: 1" threaded mast tube
For the outline drawings see Section 10.
