AIS 3410, Electronics Unit
ED3047G842 / 01 (2009-08)
Technical Manual
10 Outline Drawings
t_ue_e12.fm / 27.08.09
79
10 Outline Drawings

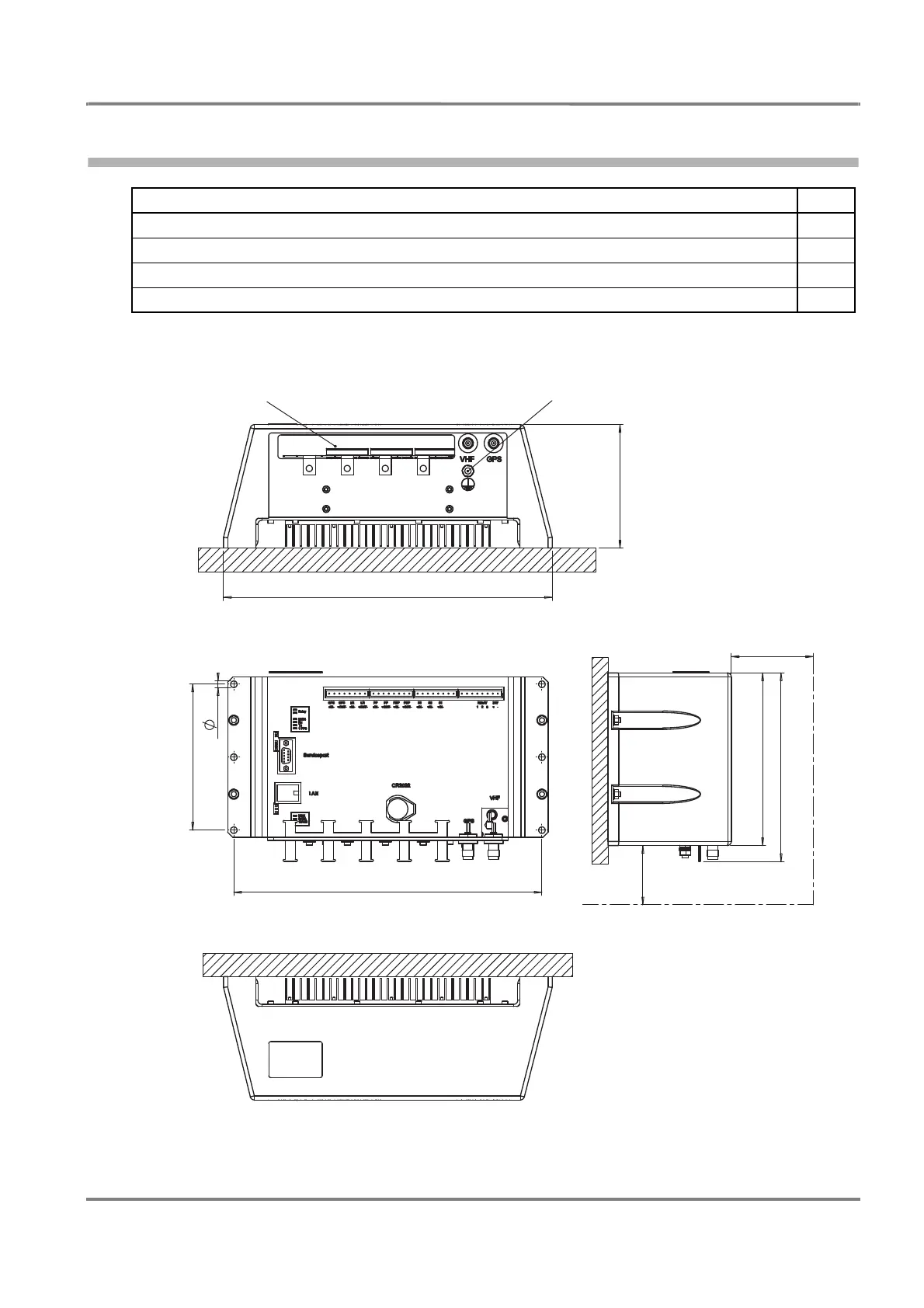

Fig. 10-1 AIS 3410 Outline Drawing
Title Page
AIS 3410 Outline Drawing 79
AIS GPS antenna, 1/2 80
AIS GPS antenna, 2/2 81
AIS VHF antenna 82
120
ca. 200
ca. 700
Area for cable inlet
Grounding M6
320
Space required for service
168
184
Cover not shown
142
6,5
300
Weight: 3kg
Steering compass: 0.3 m
Protection category: IP22
Min. distance from:
Standard compass: 0.4 m
ONLY BULKHEAD MOUNTING
