Sam4s ER-5200 Service Manual

2 Product Specifications
2-4 SAM4S ER-5200 Series
2-3 Thermal Printer Specifications
2-3-2 Paper Specification
Item Description Remark
Paper Type
• Single-ply Thermal Paper Roll
Paper Size
• 57.5 mm±0.5 mm (Width) ×80 mm or less
Table2-3 Paper Specification

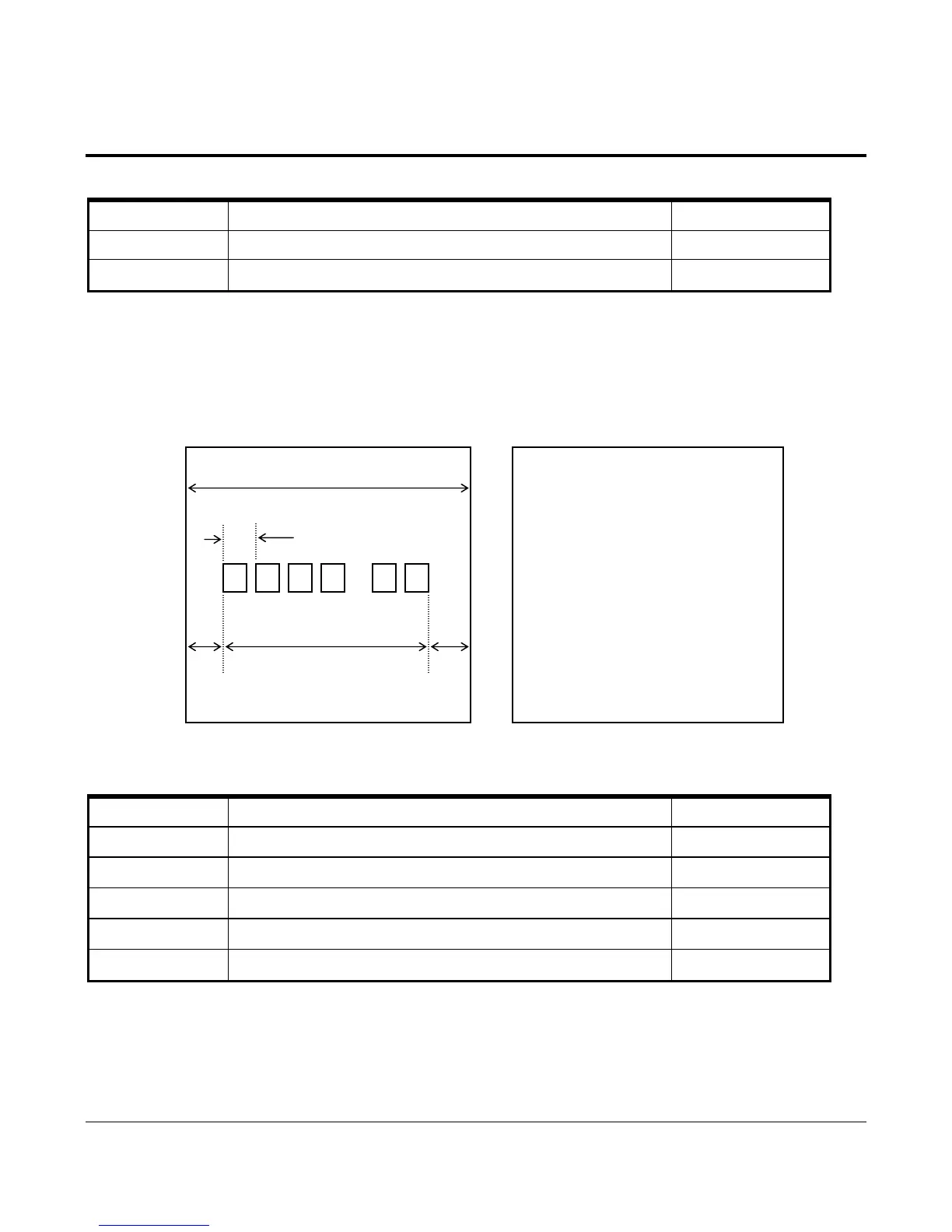

2-3-3 Printable Area
The Printable area of a paper with width of 57.5mm is 48mm(384 dots) and the space on the right and left sides are
approximately 4.75mm.
Figure2-3 Printable Area
2-3-4 Character Specification
Item Description Remark
Character Structure
• 12(W) × 24(H) Font (Including a horizontal)
Character Size
• 1.25 mm(W) ×3.0 mm(H)
Column Pitch
• 1.5 mm
Line Pitch
• 3.75 mm (Including 6-dot line spacing)
Number of Column
• 32 (12×24 Dots/Character)
Table2-4 Character Specification
b
c d e
a
a = 57.5±0.5 mm (Paper Width)
b = 0.125
mm ( 1 Dot )
c = 48
mm (384 Dots/Printable Area)
d = 4.75
mm (Left Space)
e = 4.75
mm (Right Space)
