Sam4s ER-5200 - Component Side

10 PCB Layout and Parts List
SAM4S ER-5200 Series 10-9

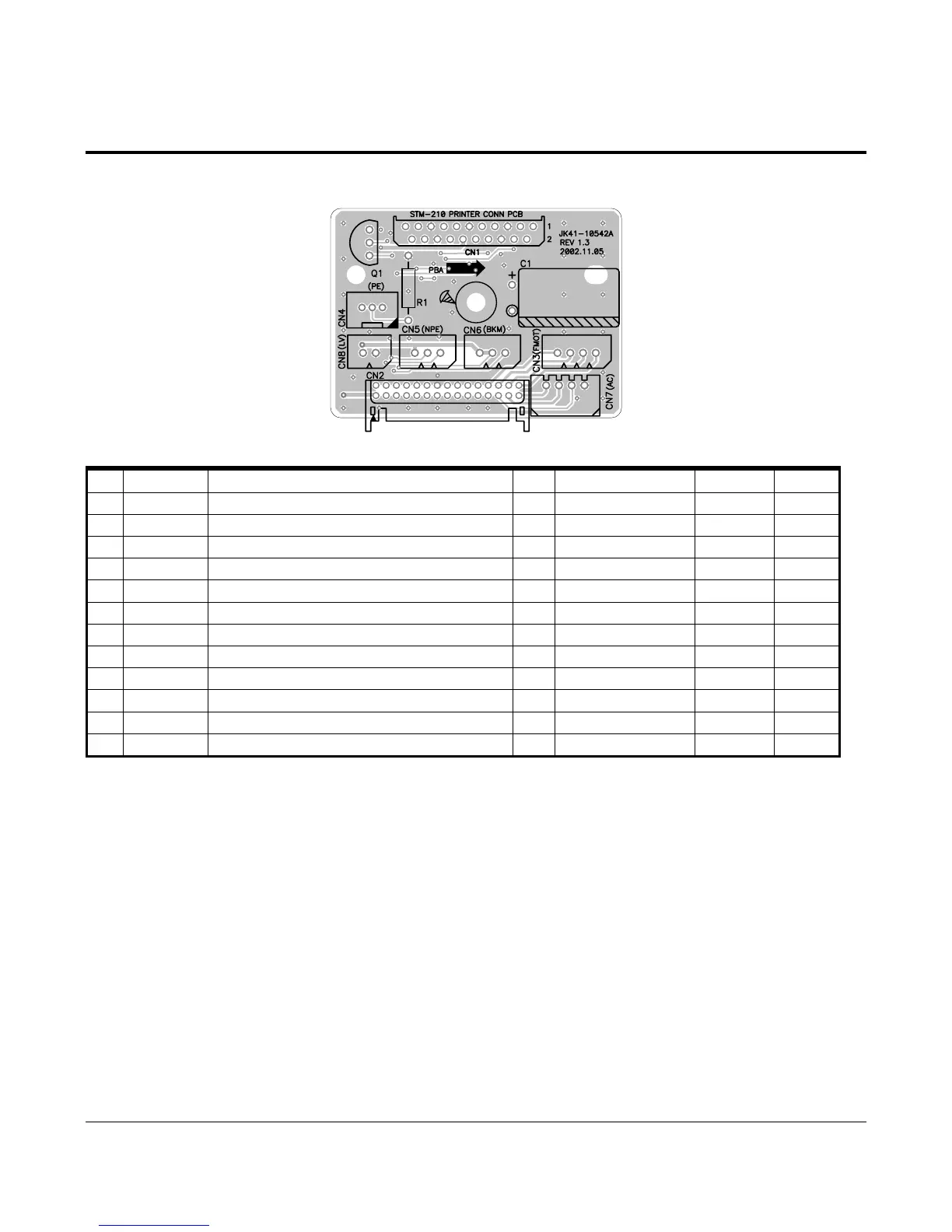

10-4 STM-210 Printer PCB Layout
10-4-1 Component Side
10-4-2 Parts List
No. Parts No. Description / Specification Q`ty Design- Location Serviceable Remark
- JK92-01225A PBA SUB-PRT CONN BOARD:STM-210,ER-5500 1 ASSY
Y
- 3708-001390 CONNECTOR-FPC/FFC/PIC:21P,2.54MM,STRAIGH 1 CN1 Y
- 3711-000961 CONNECTOR-HEADER:BOX,4P,1R,2.5mm,STRAIGH 1 CN3 Y
- 3711-003969 CONNECTOR-HEADER:BOX,2P,1R,2.5mm,STRAIGH 1 CN8 Y
- 3711-003409 CONNECTOR-HEADER:BOX,3P,1R,2mm,STRAIGHT, 1 CN4 Y
- 3711-004059 CONNECTOR-HEADER:BOX,30P,2R,2mm,ANGLE,SN 1 CN2 Y
- 3711-000965 CONNECTOR-HEADER:BOX,4P,1R,2.5mm,ANGLE 1 CN7 Y
- 3711-003968 CONNECTOR-HEADER:BOX,3P,1R,2.5mm,STRAIGH 1 CN5 Y
- 0501-000399 TR-SMALL SIGNAL:KSC945-G,NPN,250mW,TO-92 1 Q1 Y
- 2001-000395 R-CARBON:180KOHM,5%,1/4W,AA,TP,2.4X6.4MM 1 R1 Y
- 2401-000131 C-AL:1000uF,20%,16V,GP,TP,10x20,5 1 C1 Y
- JK41-10542A PCB-PRT CONN:STM-210,FR-4,2L,T1.6mm,57 1 PCB Y
