Sam4s ER-5200 Service Manual

10 PCB Layout and Parts List
SAM4S ER-5200 Series 10-11

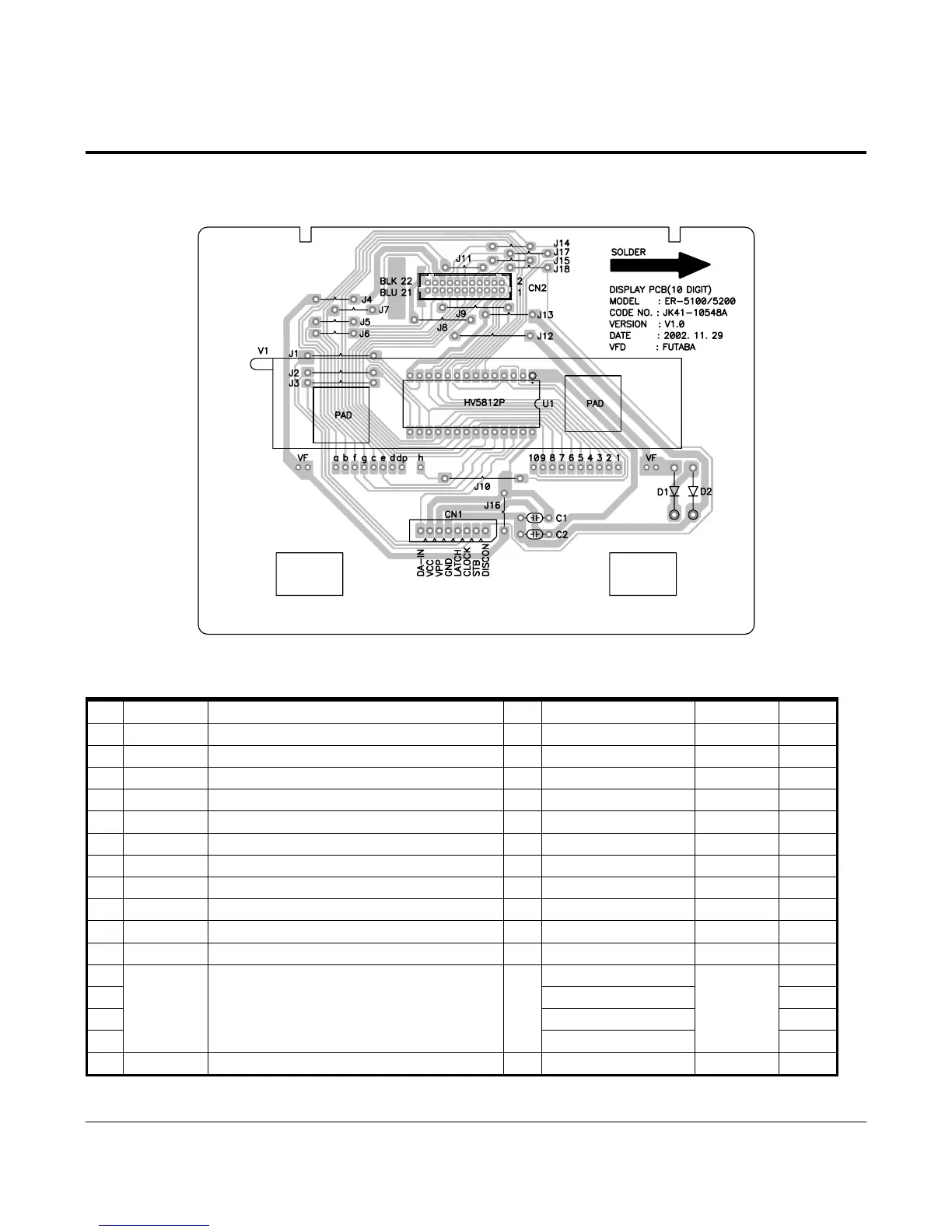

10-6 Display Layout
10-6-1 Front Display (VFD 10Digit)
10-6-1-(a) Component Side View
10-6-1-(b) Parts List (Front Display)
No. Parts No. Description / Specification Q`ty Design- Location Serviceable Remark
- JK92-01230A PBA SUB-DISPLAY:ER-5100/5200,STD 1 ASSY Y
- 3711-001133 CONNECTOR-HEADER:BOX,8P,1R,2.5mm,STRAIGH 1 CN1 Y
- 3711-002002 CONNECTOR-HEADER:-,22P,2R,2mm,STRAIGHT,S 1 CN2 Y
- JK07-00005A DISPLAY VFD-DC10G:FUTABA,10-LT-50GK 1 FUTABA VFD/10 DIGIT Y
- JK39-00034A CONNECT WIRE-350 DISPLAY:ER-350,FLAT,UL1 1 DISPLAY TO MAIN Y
- JK73-10207A RPR-PAD:ER-220N,SPONGE,-,BLK,- 2 PAD(T5.0) Y
- 1003-001381 IC-VFD:HV5812P,DIP,28P,540MIL,-,-,ST,PLA 1 U1 Y
- JK94-00052A PHANTOM AU JK92-01230A 1 AUTO N
- JK41-10548A PCB-DISPLAY:ER-5100/5200,FR-1,1L,T1.6 1 FUTABA VFD/10 DIGIT Y
- 0402-000129 DIODE-RECTIFIER:1N4003,200V,1A,DO-41,TP 1 D1 Y
- 0402-000208 DIODE-RECTIFIER:EK-04,40V,1.5A,DO-41 1 D2 Y
- JP1,JP2,JP3,JP4,JP5,JP6,
- JP7,JP8,JP9,JP10,JP11,
- JP12,JP13,JP14,JP15,JP16
-
JC39-40511A CBF HARNESS:ML-80,JUMPER,AWG22,52mm,SILV 18
JP17,JP18
Y
- 2202-000632 C-CERAMIC,MLC-AXIAL:100nF,20%,50V,Z5U,TP 2 C1,C2 Y
