10 PCB Layout and Parts List
SAM4S ER-5200 Series 10-7

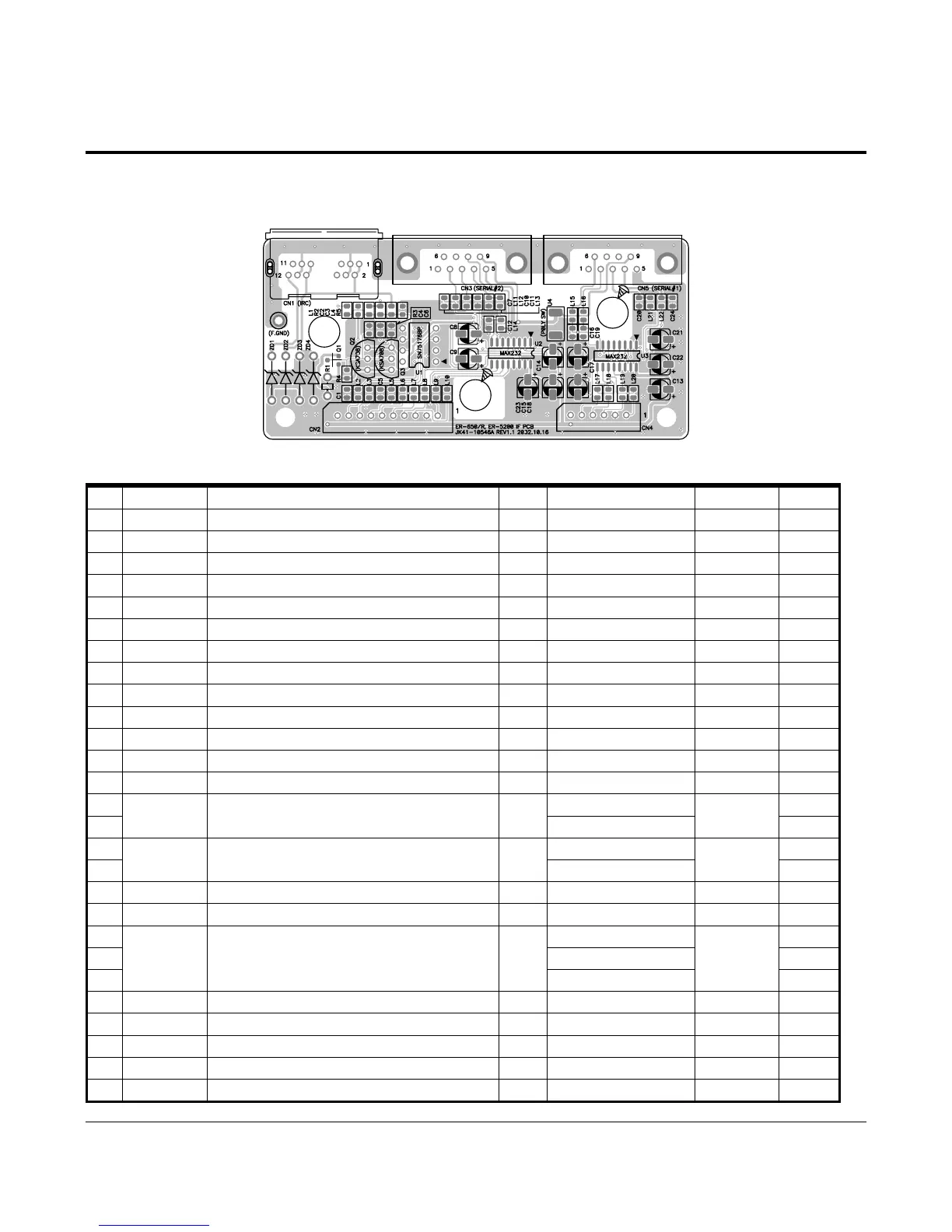

10-3 RS-232C and IRC PCB Layout
10-3-1 Serial I/F with IRC Type (PCB:JK41-10546A)
10-3-1-(a) Component Side View
10-3-1-(b) Parts List
No. Parts No. Description / Specification Q`ty Design- Location Serviceable Remark
- JK92-00948C PBA SUB-I/F 232/IRC:ER-52/5500,BASIC,WOR 1 ASSY Y
- JK39-40541A CBF HARNESS-MAIN:ER-4615,1R,UL1015,220mm 1 F.GND Y
- 1006-000259 IC-LINE TRANSCEIVER:75176A,DIP,8P,300MIL 1 U1 Y
- 3701-000232 CONNECTOR-DSUB:9P,2R,FEMALE,ANGLE,AUF 2 CN3,CN5 Y
- 3711-003359 CONNECTOR-HEADER:BOX,10P,1R,2.5mm,STRAIG 1 CN2 Y
- 3711-001054 CONNECTOR-HEADER:BOX,6P,1R,2.5mm,STRAIGH 1 CN4 Y
- 3722-000001 JACK-MODULAR:12P/2C,-,AU,GRAY,- 1 CN1 Y
- 0403-000141 DIODE-ZENER:1N4735A,6.2V,5%,1W,DO-41,TP 4 ZD1,ZD2,ZD3,ZD4 Y
- 2001-001291 R-CARBON: 1OHM,5%,1/2W,AA,TP,3.5X9.5MM 1 R1 Y
- 0501-000294 TR-SMALL SIGNAL:KSA708-Y,PNP,800mW,TO-92 2 Q2,Q3 Y
- JK94-00026C PHANTOM AU JK92-00948C 1 N
- 1006-000133 IC-DRIVER/RECEIVER:232,SOP,16P,150MIL,DU 2 U2,U3 Y
- 2203-000192 C-CERAMIC,CHIP:100nF,+80-20%,50V,Y5V,TP, 2 C4,C6 Y
- C7,C10,C11,C12,C16,C1,
-
2203-000938 C-CERAMIC,CHIP:0.47nF,5%,50V,NP0,TP,2012 8
C20,C24
Y
- C8,C9,C13,C14,C15,C17,
-
2402-000170 C-AL,SMD:1uF,20%,50V,GP,TP,4.3x4.3x5.4, 10
C18,C21,C22,C23
Y
- 2203-000495 C-CERAMIC,CHIP:2.2nF,10%,50V,X7R,TP,2012 2 C2,C3 Y
- 2203-000784 C-CERAMIC,CHIP:0.33nF,5%,50V,NP0,TP,2012 2 C1,C5 Y
- L2,L3,L5,L6,L7,L8,L9,L10,
- L11,L12,L13,L14,L15,L16,
-
3301-000317 CORE-FERRITE BEAD:AB,2x1.25x0.9mm,-,- 20
L17,L18,L19,L20,L21,L22
Y
- 0501-000279 TR-SMALL SIGNAL:KSA1182-Y,PNP,150mW,SOT- 1 Q1 Y
- 2007-000468 R-CHIP:1KOHM,5%,1/10W,DA,TP,2012 1 R3 Y
- 2007-000872 R-CHIP:4.7KOHM,5%,1/10W,DA,TP,2012 3 R2,R4,R5 Y
- 2007-001013 R-CHIP:51OHM,5%,1/10W,DA,TP,2012 2 L1,L4 Y
- JK41-10546A PCB-I/O:ER-650/5200,FR-4,2L,T1.6,97*46mm 1 Y
