10 PCB Layout and Parts List
10-8 SAM4S ER-5200 Series
10-3 RS-232C and IRC PCB Layout
10-3-2 Serial I/F without IRC Type (PCB:JK41-10645B)

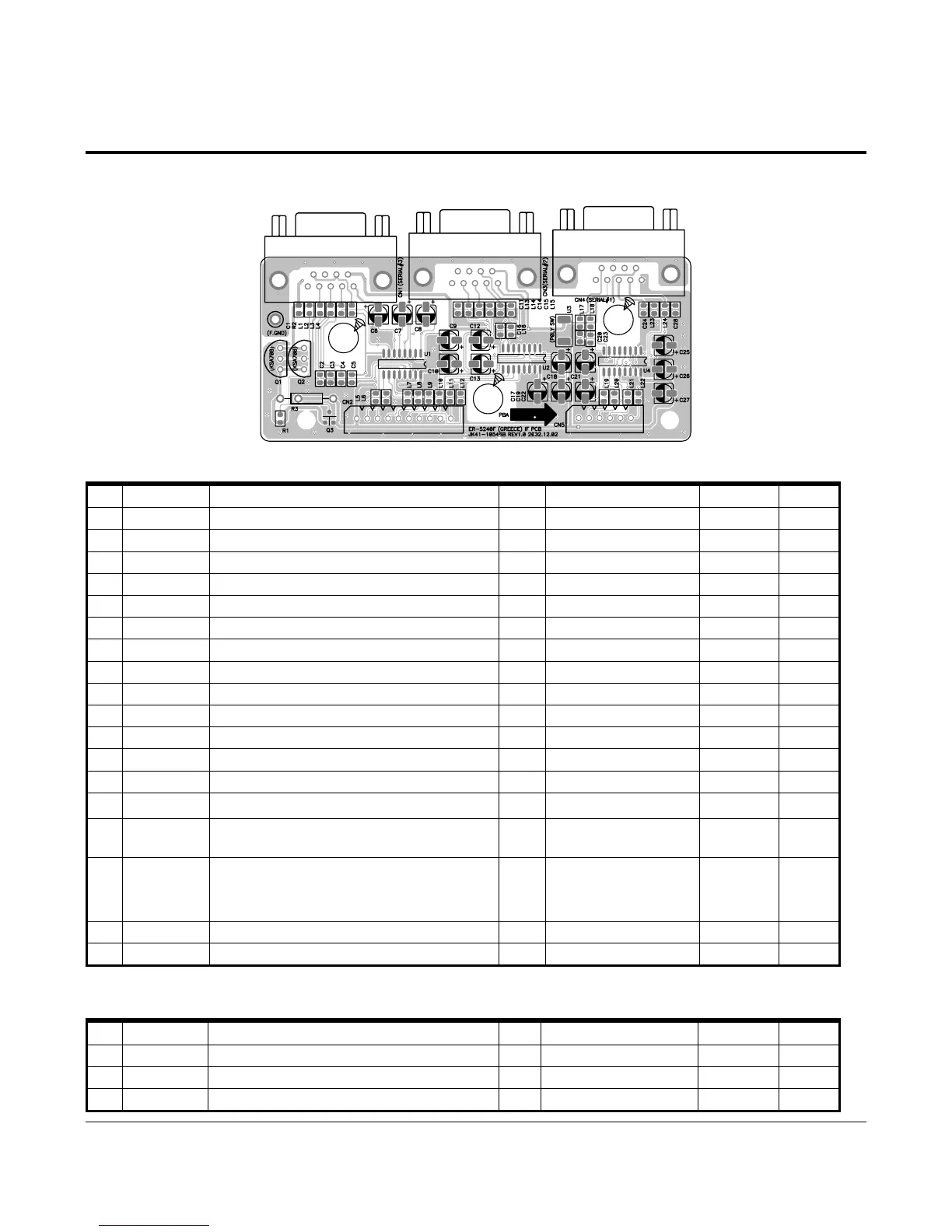

10-3-2-(a) Component Side View
10-3-2-(b) Parts List
No. Parts No. Description / Specification Q`ty Design- Location Serviceable Remark
- JK92-00948E PBA SUB-I/F 232*3:ER-5240F,GREECE 1 ASSY Y
- JK39-40541A CBF HARNESS-MAIN:ER-4615,1R,UL1015,220mm 1 F.GND Y
- 3701-000232 CONNECTOR-DSUB:9P,2R,FEMALE,ANGLE,AUF 3 CN1,CN3,CN4 Y
- 3711-003359 CONNECTOR-HEADER:BOX,10P,1R,2.5mm,STRAIG 1 CN2 Y
- 3711-001054 CONNECTOR-HEADER:BOX,6P,1R,2.5mm,STRAIGH 1 CN5 Y
- 2001-001291 R-CARBON: 1OHM,5%,1/2W,AA,TP,3.5X9.5MM 1 R3 Y
- 0501-000294 TR-SMALL SIGNAL:KSA708-Y,PNP,800mW,TO-92 2 Q1,Q2 Y
- JC68-10564A LABEL(P)-PROTECTOR:SLB-3108H,ART,-,100(S 1 CODE NO. LABEL Y
- JK94-00026E PHANTOM AU JK92-00948E 1 N
- 1006-000133 IC-DRIVER/RECEIVER:232,SOP,16P,150MIL,DU 3 U1,U2,U4 Y
- 2007-000468 R-CHIP:1KOHM,5%,1/10W,DA,TP,2012 1 R2 Y
- 2007-000872 R-CHIP:4.7KOHM,5%,1/10W,DA,TP,2012 1 R1 Y
- 2203-000192 C-CERAMIC,CHIP:100nF,+80-20%,50V,Y5V,TP, 1 C1 Y
- 2203-000938 C-CERAMIC,CHIP:0.47nF,5%,50V,NP0,TP,2012 12
C2,C3,C4,C5,C11,C14,C15,
C16,C20,C23,C24,C28
Y
- 2402-000170 C-AL,SMD:1uF,20%,50V,GP,TP,4.3x4.3x5.4, 15
C6,C7,C8,C9,C10,C12,C13,
C17,C18,C19,C21,C22,C25,
C26,C27
Y
- 3301-000317 CORE-FERRITE BEAD:AB,2x1.25x0.9mm,-,- 24
L1,L2,L3,L4,L5,L6,L7,L8,L9,
L10,L11,L12,L13,L14,L15,1
6,
L17,L18,L19,L20,L21,L22,
L23,L24
Y
- 0501-000279 TR-SMALL SIGNAL:KSA1182-Y,PNP,150mW,SOT- 1 Q3 Y
- JK41-10546B PCB-I/O:ER-5240F,FR-4,2L,T1.6,97*46mm 1 Y
10-3-3 Serial I/F PBA Configuration
No. Parts No. Description / Specification Q`ty Design- Location Serviceable Remark
- JK92-00948B PBA SUB-I/F 232*1:ER52/5500 1 SERIAL 1 PORT Y
- JK92-00948C PBA SUB-I/F 232/IRC:ER52/5500 1 SERIAL 2 PORT & IRC Y
- JK92-00948F PBA SUB-I/F 232*2:ER52/5500 1 SERIAL 2 PORT Y
