9 Exploded Views and Parts List
SAM4S ER-5200 Series 9-19
9-4 Key Board
9-4-3 Key Board (160Key)

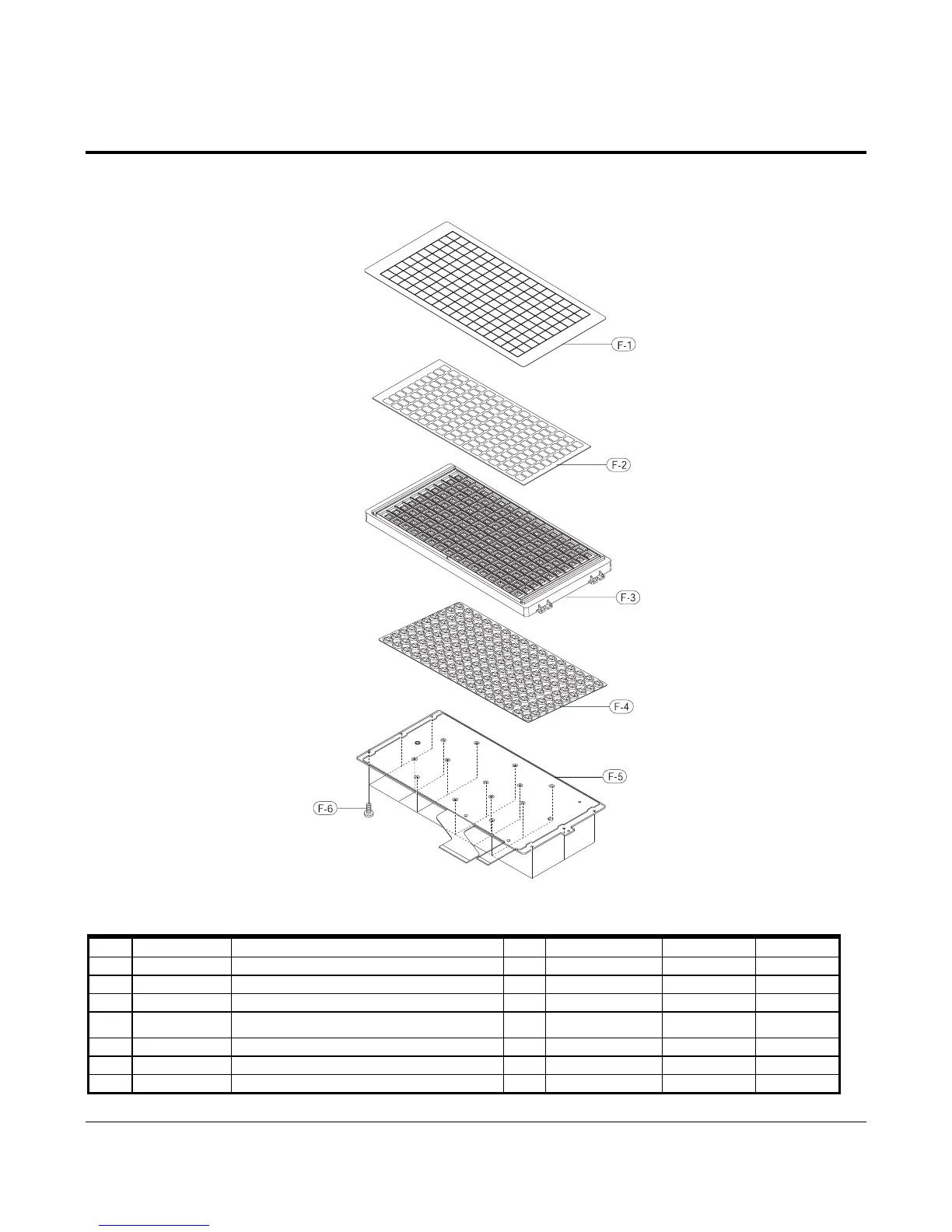

9-4-3-(a) Exploded View
Figure9-13 Key Board (160 Key)
9-4-3-(b) Parts List
No. Parts No. Description / Specification Q`ty Design-Location Serviceable Remark
F JK59-30016A UNIT-KEYBOARD,RUBBER-FLAT,160KEY 1 Y
F-1 JK73-20216A REX-WATER-PROOF:SILICON,160KEY 1 Y
F-2 JK68-40012N LABEL-SHEET:ER-5200(CRS),PC T0.125,R-FLAT 1 Y
F-3 JK81-20018A PMO-HOUSING:HIPS(V0) IV,RUBBER,160KEY 1
Y
F-4 JK81-20019A RUBBER-KEY,SILICON,160KEY 1 Y
F-5 JK81-20020A ASSY-FPC,RUBBER,160KEY 1 Y
F-6 JK81-20005A SCREW-TAP,M2.6*6, 19 Y
