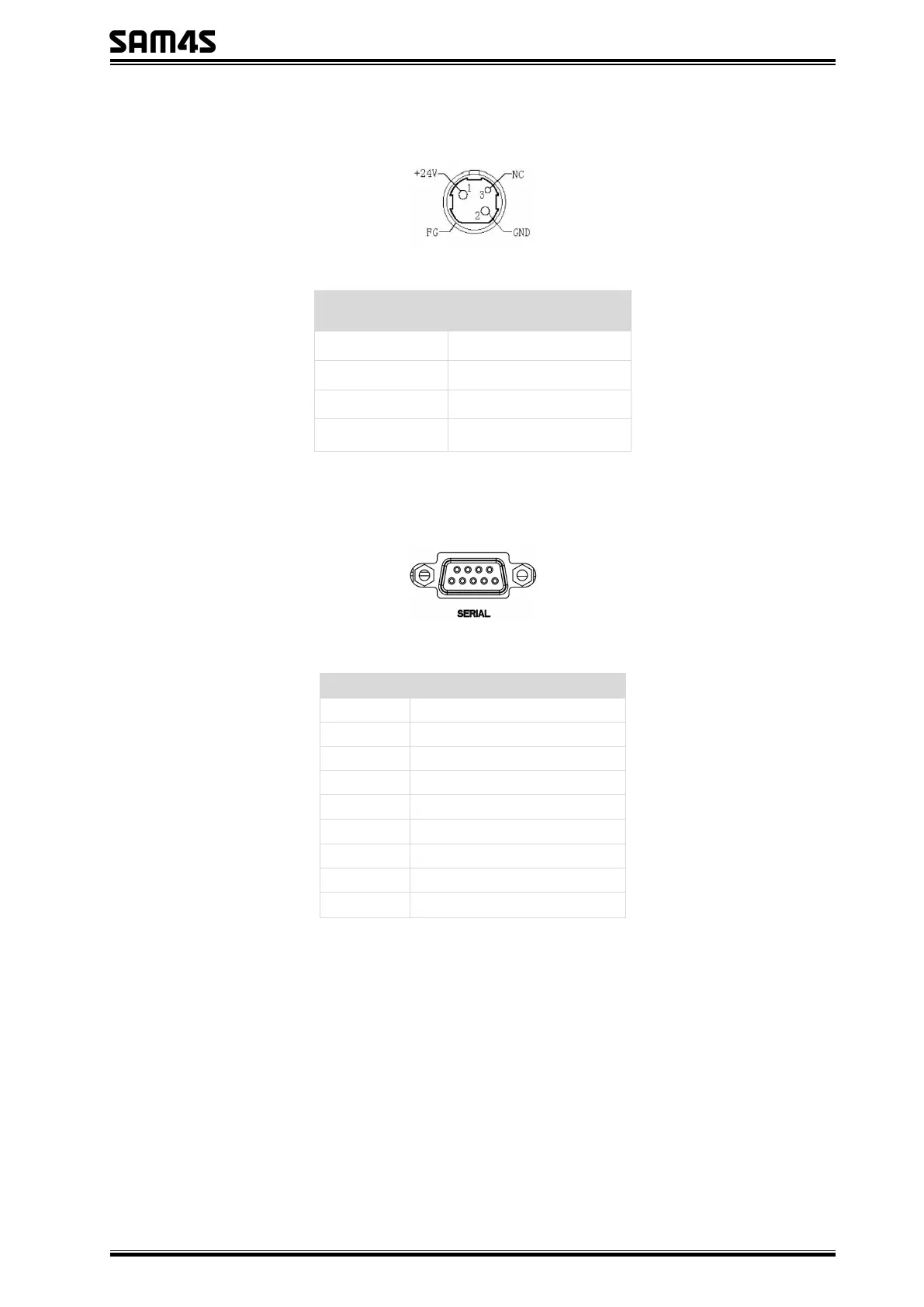

HCUBE-102S User Manual
24
5.3 Power Port Connector
Figure 5.3
PIN NO.
SIGNAL NAME
1
+24V
2
GND
3
N.C
SHELL
F.G
5.4 Serial Interface
Figure 5-4
PIN NO.
SIGNAL NAME
1
-
2
TXD
3
RXD
4
-
5
GND
6
DTR
7
-
8
RTS
9
-
