6 Installation

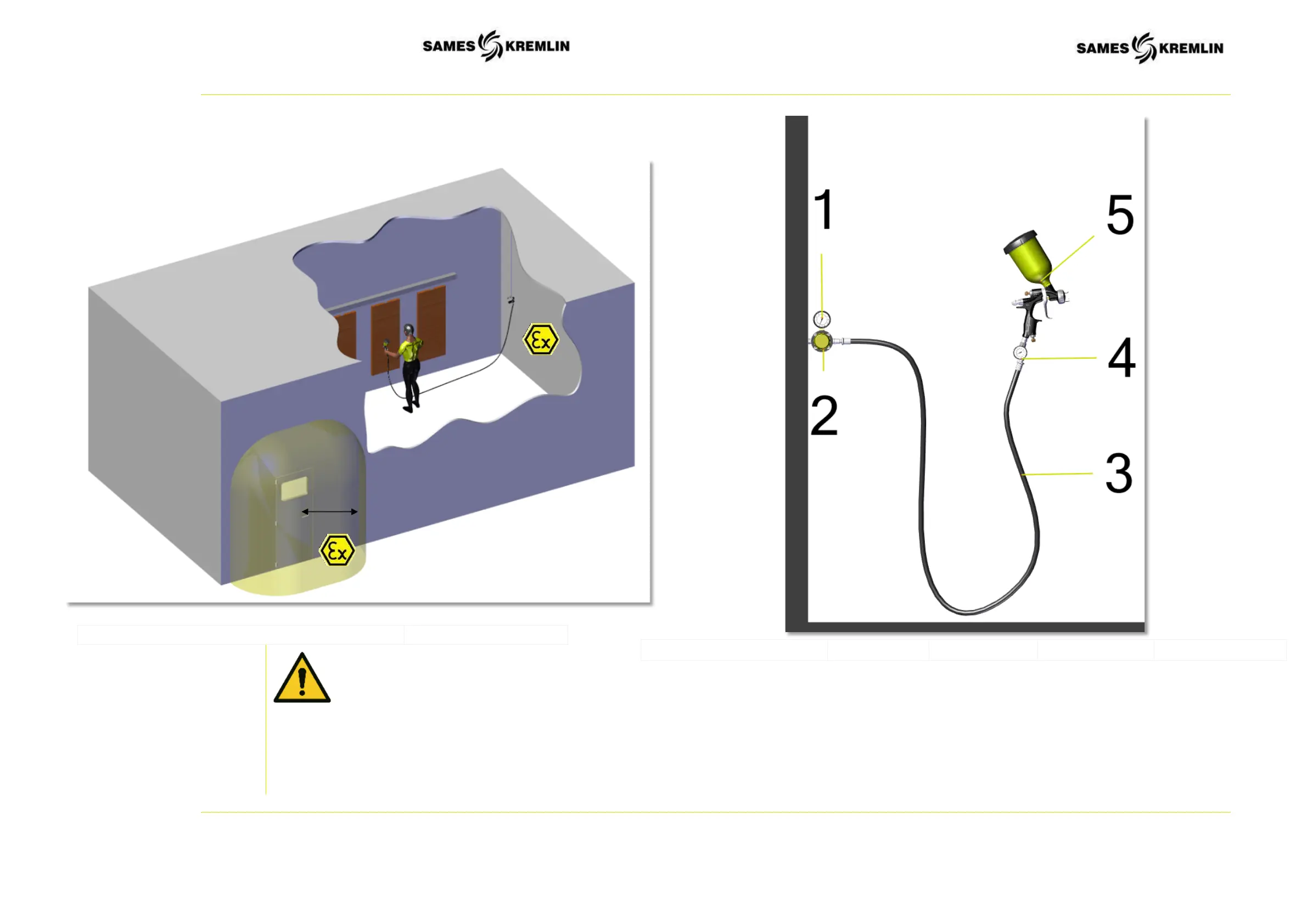

6.1 General Installation Diagram
A- Explosive area 1 (A1) or area 2 (A2): paint booth B - Non-Explosive Zone
The distance of 1 meter mentioned in this diagram is given only as an indication and could not engage the responsibility of SAMES KREMLIN.
The exact delimitation of the areas is the express responsibility of the user, and this according to the products used, the environment of the equipment and the conditions of use.
This distance of 1 meter can thus be adapted if the analysis carried out by the user requires it.
Using an antistatic quality hose, connect the gun to an air pressure regulator capable of supplying a minimum of 2 bar, a maximum of 6 bar.
1 - Pressurized air supply 2 - air regulator 3 - Antistatic air hose 4 - Pressure gauge 5 - Pneumatic gun
