SAMES KREMLIN FPro G - Installation Diagram - Air Pressure Adjustment

33

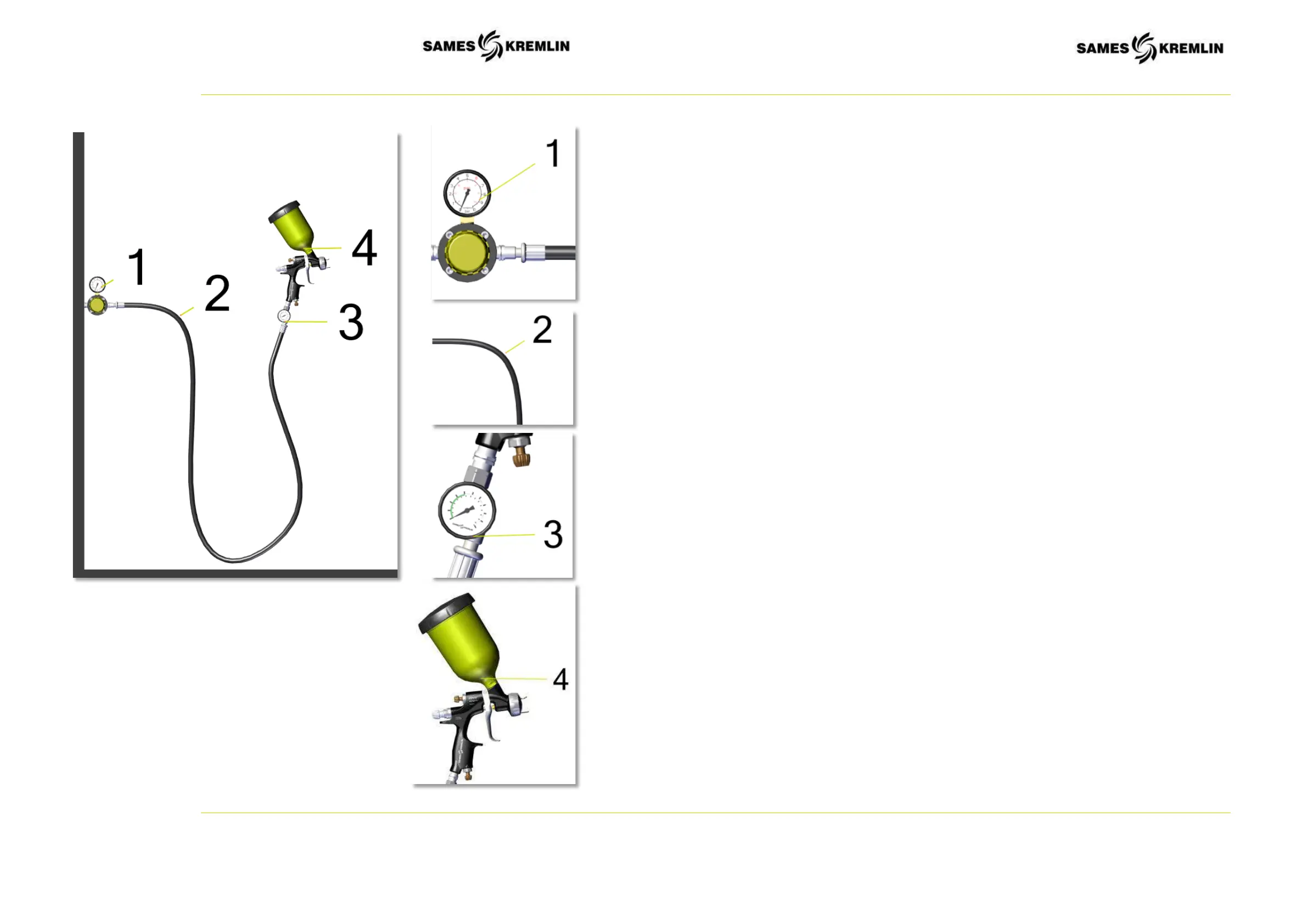

6.2 Installation Diagram - Air Pressure Adjustment with or without Gauge at Gun Handle
1- Air pressure regulator and wall pressure gauge PO
2-Air hose
3 - Pressure measured at the gun grip during operation (air needle open)
4 - Gun FPro G
