SAMES KREMLIN FPro G - Exploded View of the FPro G Gun

84

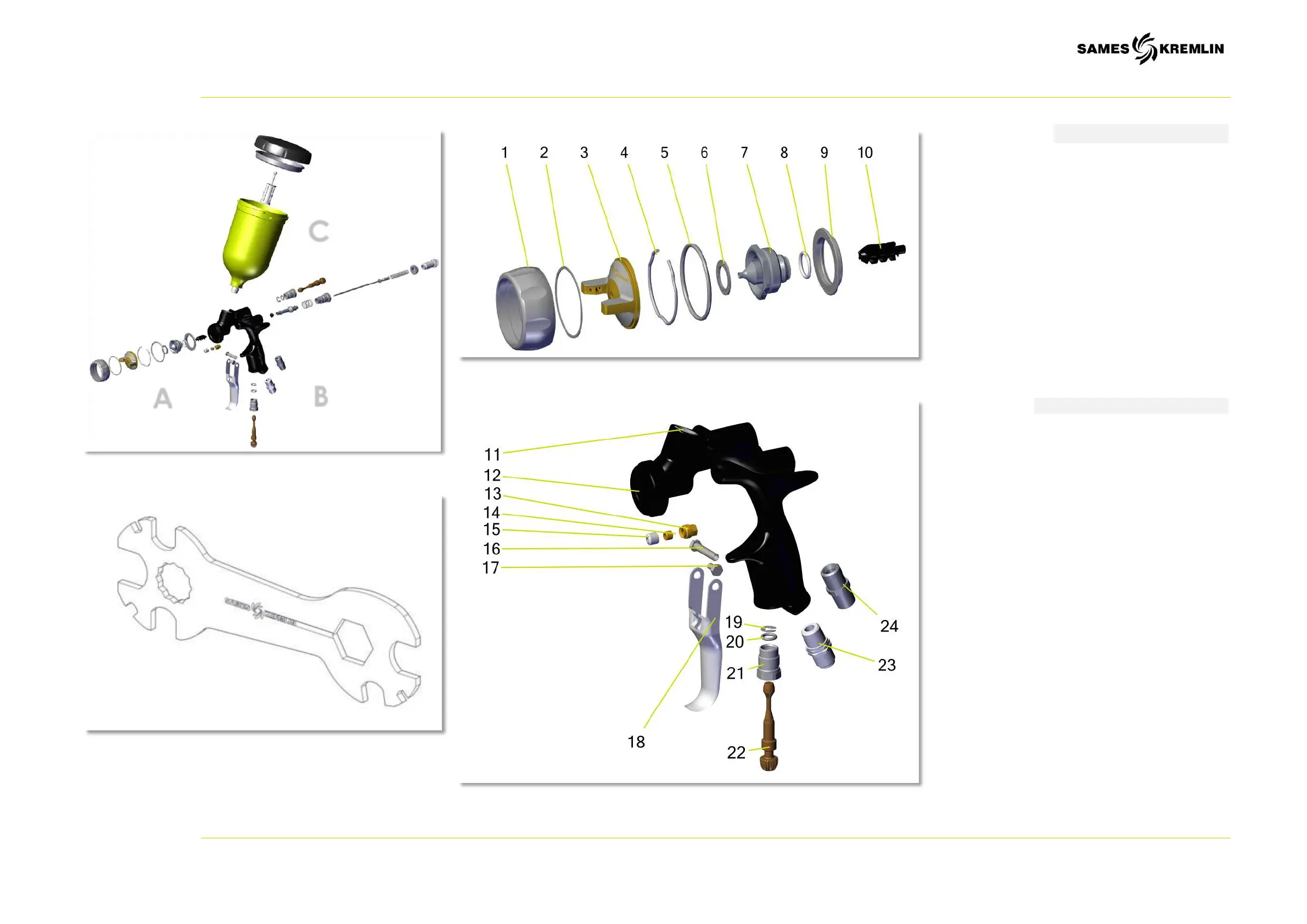

12.2 Exploded view of the FPro G gun
Section A
Section B
Section A
Designations
1
Air cap ring
2
Friction seal
3
Air cap
4
Retaining ring
5
Air cap ring’s o-ring seal
6
Distribution washer
7
Nozzle
8
Nozzle’s o-ring seal
9
Distribution ring
10
Vortex
Section B
Designations
11
Cup connection
12
Gun body FPro G GSP
13
Packing holder
14
Teflon bearing
15
Seat
16
Trigger axle
17
Stainless steel screw H M4X8
18
Trigger
19
Circlip
20
O-ring PTFE
21
Needle liner
22
Short air needle
23
Connection M R1/4 M ¼ NPS
24
Connection M R1/4 - M G 1/4 BSP
