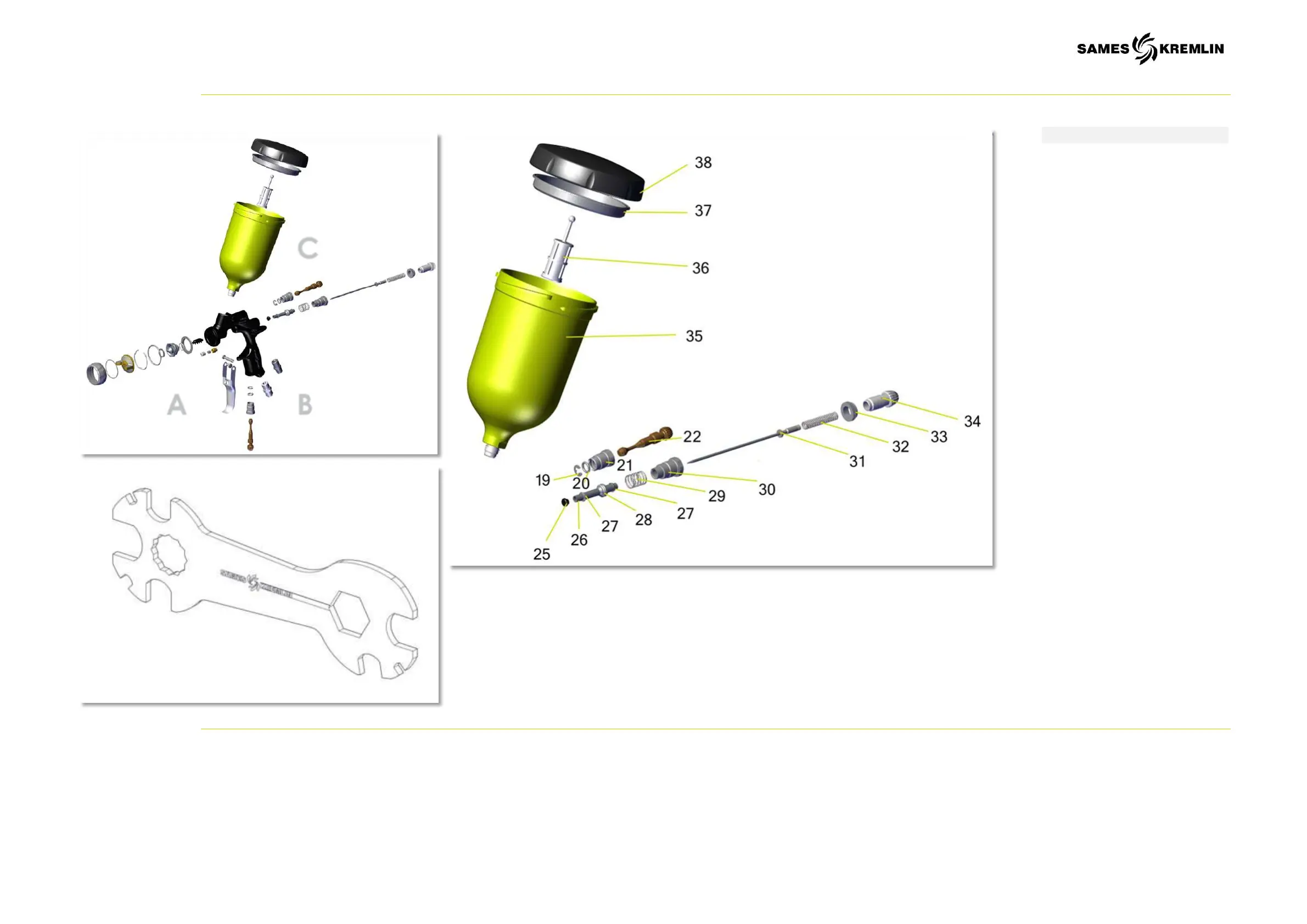

3.2 Exploded view of the FPro G gun (continued)
Section C
Section C
Designations
19
Steel Circlip
20
PTFE Seal
21
Needle sleeve
22
Short air needle
25
Valve actuator
26
One-piece valve body
27
Valve seal x2
28
Valve seal HDPE 300
29
Air valve spring FPro G
30
Rear liner
31
Needle
32
Needle spring FPro G
33
Locking nut M12x100
34
Magnetic needle stop
35
Cup body
36
Filter
37
Anti-drip mambrane
38
Cup lid 0.6L
