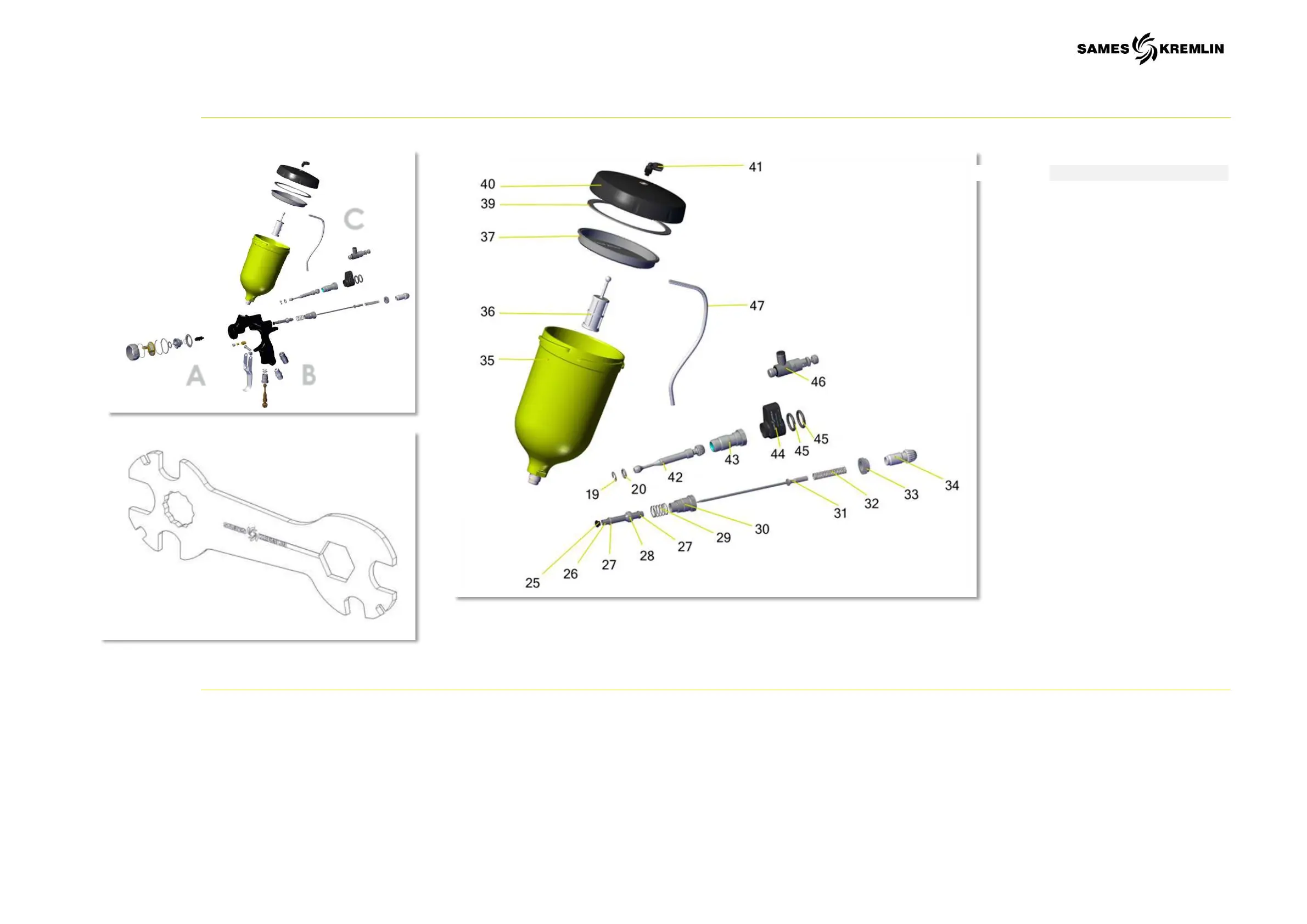

3.3 Exploded view of the FPro GSP Gun (continued)
Section C
Section C
Designations
19
Steel circlip
20
PTFE Seal
25
Valve actuator
26
One-piece valve body
27
Valve seal x2
28
Valve seal HDPE 300
29
Air valve spring FPro G
30
Sleeve
31
Needle
32
Needle spring FPro G
33
Locking nut M12x100
34
Magnetic needle stop
35
Cup body
36
Filter
37
Anti-drip membrane
39
0.6L Cup seal
40
Cup lid 0.6L GSP
41
Elbow M5 T2,5X4
42
GSP air needle
43
GSP needle sleeve
44
Ring kit GSP FPro G
45
Seals NBR BLACK 80SH x2
46
Regulator 1 BAR 1/8G Ø4
47
Hose Ø4 KIT GSP
C
A
B
