Samlexpower Evolution EVO-2212 - 2.4 REMOTE CONTROL EVO-RC (FIG 2.4) [OPTIONAL]

26 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 27
SECTION 2 | Components & Layout
1
2
7
8
6
3
5
9
4
Fault
RJ-45
Plug
11
1. LCD Screen - 2 rows of 16 characters each
2. ON/OFF Key
3. Green LED “Status”
4. Red LED “Fault"
5. Navigation Key “Back”
6. Navigation Key “Up”
7. Navigation Key “Down”
8. Navigation Key “Enter”
9. SD Card Slot - FAT16/32 format; Up to 16GB
10. RJ-45 Jack (At the back-not shown)
11. RJ-45 Data Cable (Straight Wired), 10 meter/33
feet length {Fig 2.4(b)}

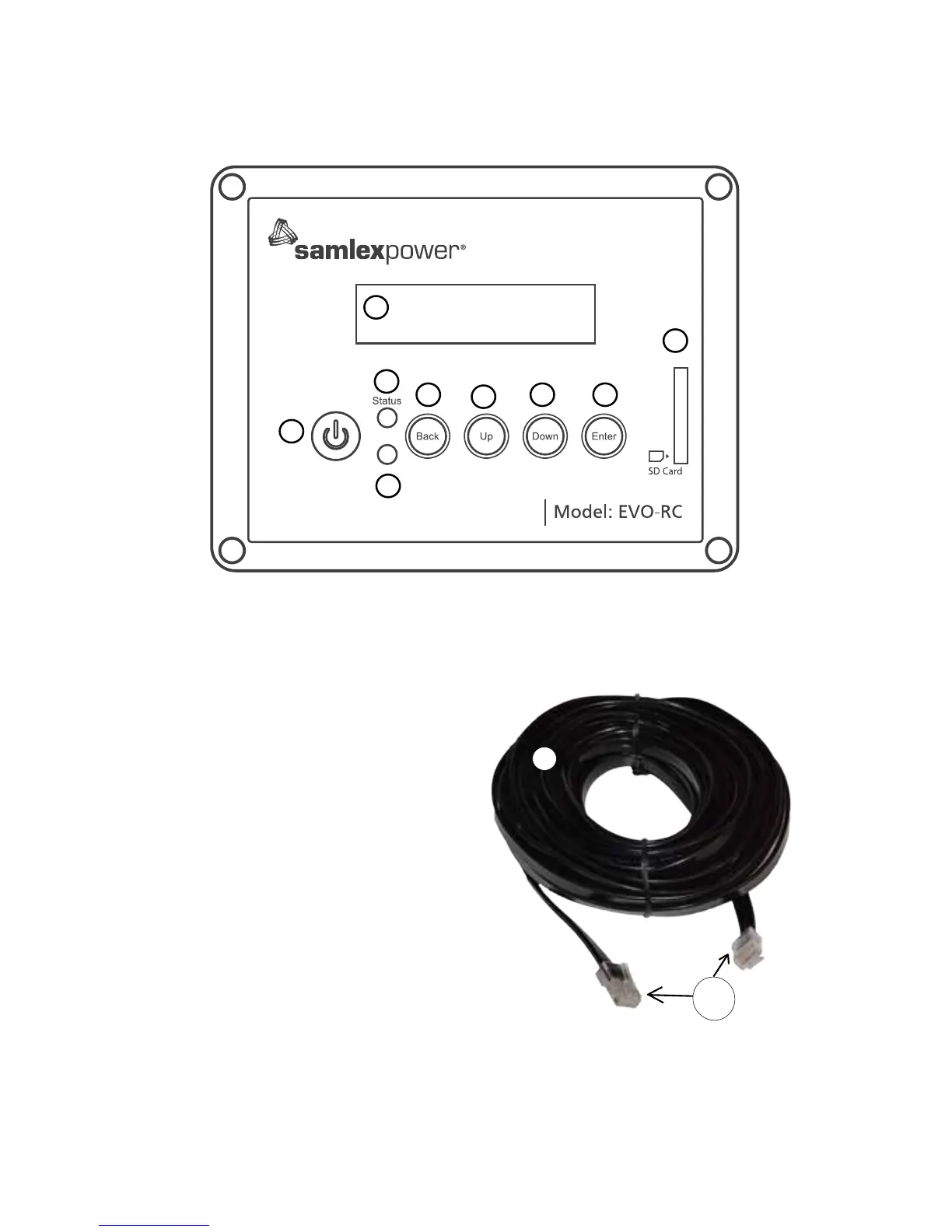

2.4 REMOTE CONTROL EVO-RC (FIG 2.4) [OPTIONAL]
Fig 2.4(a) Optional Remote Control EVO-RC
Fig 2.4(b) Cable for Remote Control
