EB 8015 EN
3-7
Design and principle of operation
T
able3-3:
W
eights for T
ype3241 V
alve
V
alve
DN
15
20
25
32
40
50
65
80
100
125
150
200
250 (cast
iron)
250
300
W
eight
kg
6
7.5
8
12
14
18
29
34
52
81
108
430
468
858
920

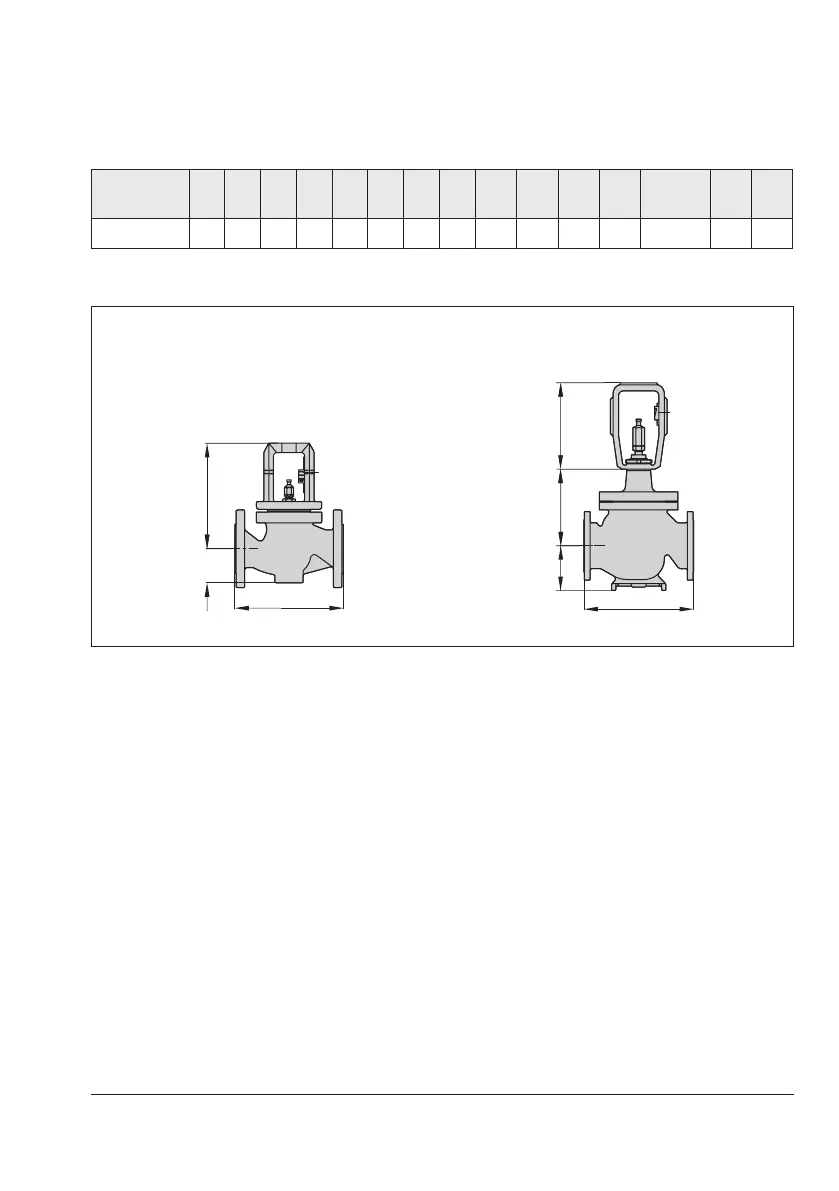

Dimensional drawings
H1
H2
L
H8
H4
H2
L
T
ype3241 · DN15 to 150
T
ype3241 · DN200 to 300
20
22
Table of Contents
Table of Contents
3
Safety Instructions and Measures
5
Notes on Possible Severe Personal Injury
8
Notes on Possible Personal Injury
9
Notes on Possible Property Damage
11
Warnings on the Device
12
Markings on the Device
13
Valve Nameplate
13
Actuator Nameplate
14
Material Numbers
14
Label When an Adjustable Packing Is Installed
14
Design and Principle of Operation
15
Versions
17
Additional Fittings
18
Valve Accessories
18
Technical Data
19
Shipment and On-Site Transport
25
Accepting the Delivered Goods
25
Removing the Packaging from the Valve
25
Transporting and Lifting the Valve
25
Transporting the Valve
26
Lifting the Valve
27
Storing the Valve
29
Installation
31
Installation Conditions
31
Preparation for Installation
32
Installing the Device
33
Mounting the External Anti-Rotation Fixture
34
Mounting the Actuator Onto the Valve
38
Installing the Valve into the Pipeline
40
Testing the Installed Valve
40
Leak Test
42
Travel Motion
43
Fail-Safe Position
43
Pressure Test
43
Start-Up
45
Operation
47
Normal Operation
48
Manual Operation
48
Malfunctions
49
Troubleshooting
49
Emergency Action
50
Servicing
51
Periodic Testing
53
Preparing the Valve for Service Work
56
Mounting the Valve after Service Work
56
Service Work
56
Replacing the Gasket
57
Replacing the Packing
58
Replacing the Seat and Plug
60
Ordering Spare Parts and Operating Supplies
62
Decommissioning
63
Removal
65
Removing the Valve from the Pipeline
66
Removing the Actuator from the Valve
66
Repairs
67
Returning Devices to SAMSON
67
Disposal
69
Certificates
71
Annex
81
Tightening Torques, Lubricants and Tools
81
Spare Parts
81
After-Sales Service
84
