Samson 3241 Series User Manual

EB 8015 EN 3-9
Design and principle of operation

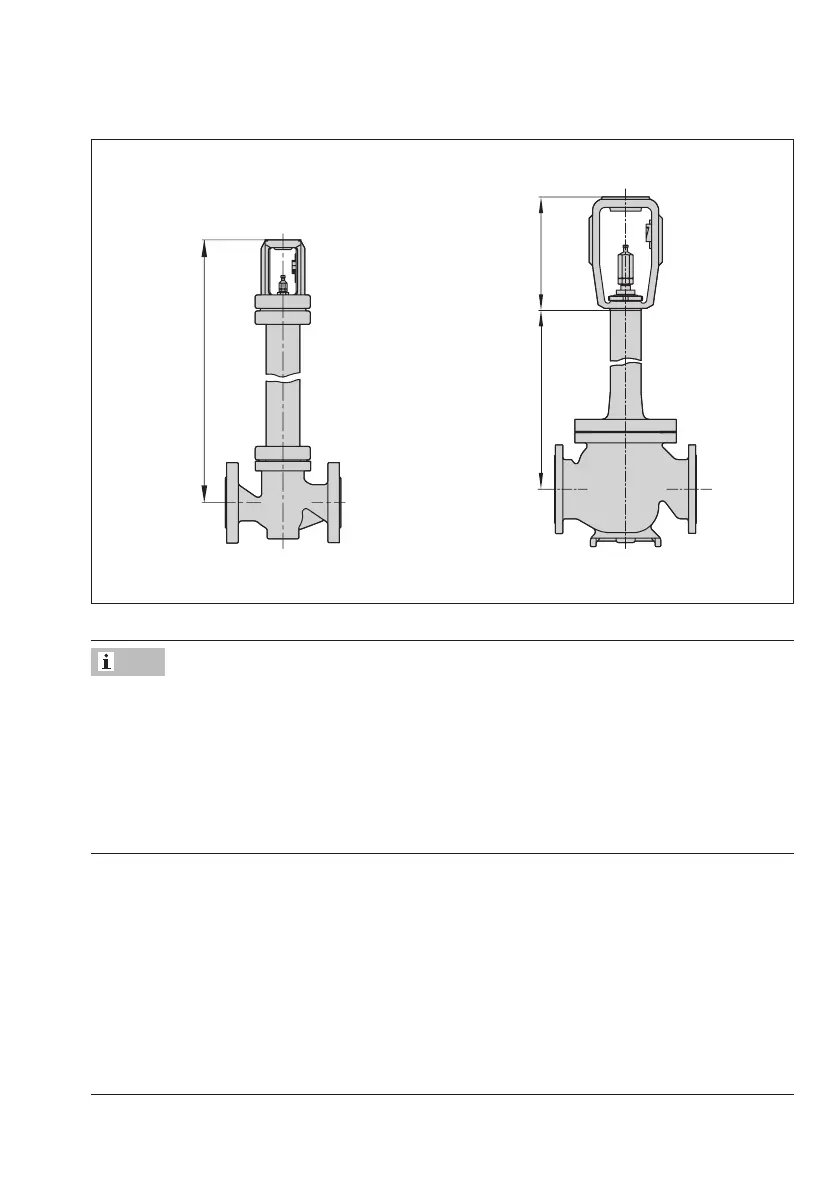

Dimensional drawings
H4
H8H4
Type3241 with insulating section or
bellows seal · DN15 to 150
Type3241 with insulating section or
bellows seal · DN200 to 300
Refer to the following data sheets for more dimensions and weights:
uT8015 for valves with bellows seal, insulating section or heating jacket
The associated actuator documentation applies to actuators, e.g. for SAMSON pneumatic
actuators:
uT8310-1 for Type3271 or Type3277 Pneumatic Actuators up to 750cm² actuator area
uT8310-2 for Type3271 Actuator with 1000cm² actuator area and larger
uT8310-3 for Type3271 Actuator with 1400-60cm² actuator area
