Samsung AR5000 - Space Requirements for Outdoor Unit

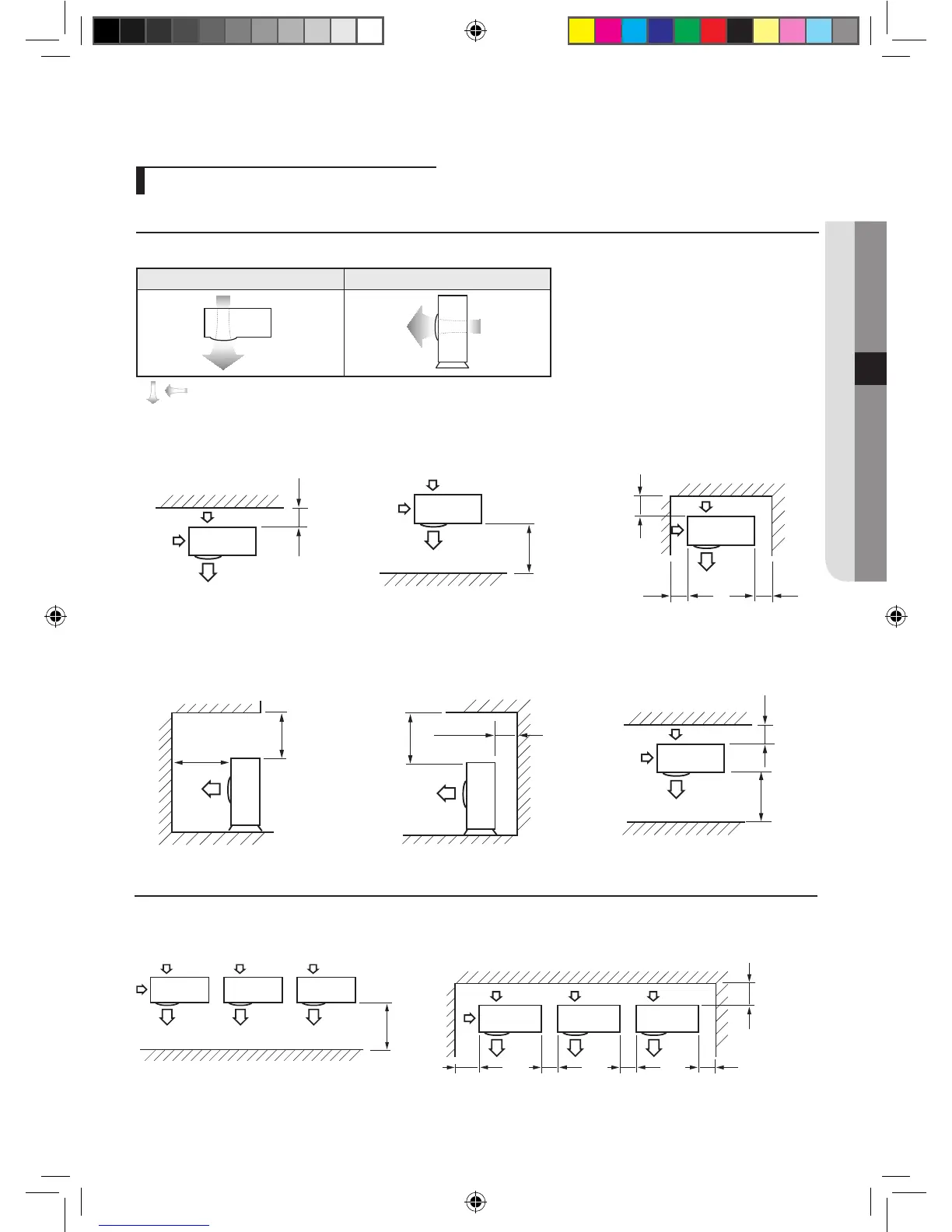

Space Requirements for Outdoor Unit
When installing 1 outdoor unit
300 or more
 When the air outlet is opposite the
wall
1500 or more
 When the air outlet is towards the
wall
300 or more
150 or more 600 or more
 When 3 sides of the outdoor unit are
blocked by the wall
1500 or more
2000 or more
 The upper part of the outdoor unit
and the air outlet is towards the wall
500 or more
300 or more
 The upper part of the outdoor unit
and the air outlet is opposite the
wall
 When the walls are blocking front
and the rear side of the outdoor unit
300 or more
1500 or more
Top view Side view
Air outlet Air intake
Air intake
Air outlet
 Figure Description

, Air flow direction.
(Unit:mm)
When installing more than 1 outdoor unit
(Unit:mm)
1500 or more
 When the air outlet is towards the wall  When 3 sides of the outdoor unit are blocked by the wall
300 or more
300 or more 600 or more 600 or more 600 or more
English-31
INSTALLATION05
