Evacuating the indoor unit
• TheremainingairintheRefrigerationcycle,whichcontainsmoisture,
may cause malfunction on the compressor.
• Alwayscontacttheservicecenteroraprofessionalinstallationagency
for product installation.
• Topreventdirtorforeignsubstancesfromgettingintothepipesduring
installation, do NOT remove the caps completely until you are ready to
connect the pipes.
Thelengthofthepipecanbe:
 •Extendedupto:seetablepage30
 •Shortenupto:seepage30
Ifyouneedapipelongerthan4or5meters:
• Youmustaddrefrigeranttothepipes;otherwise,theindoorunitmayfreeze.

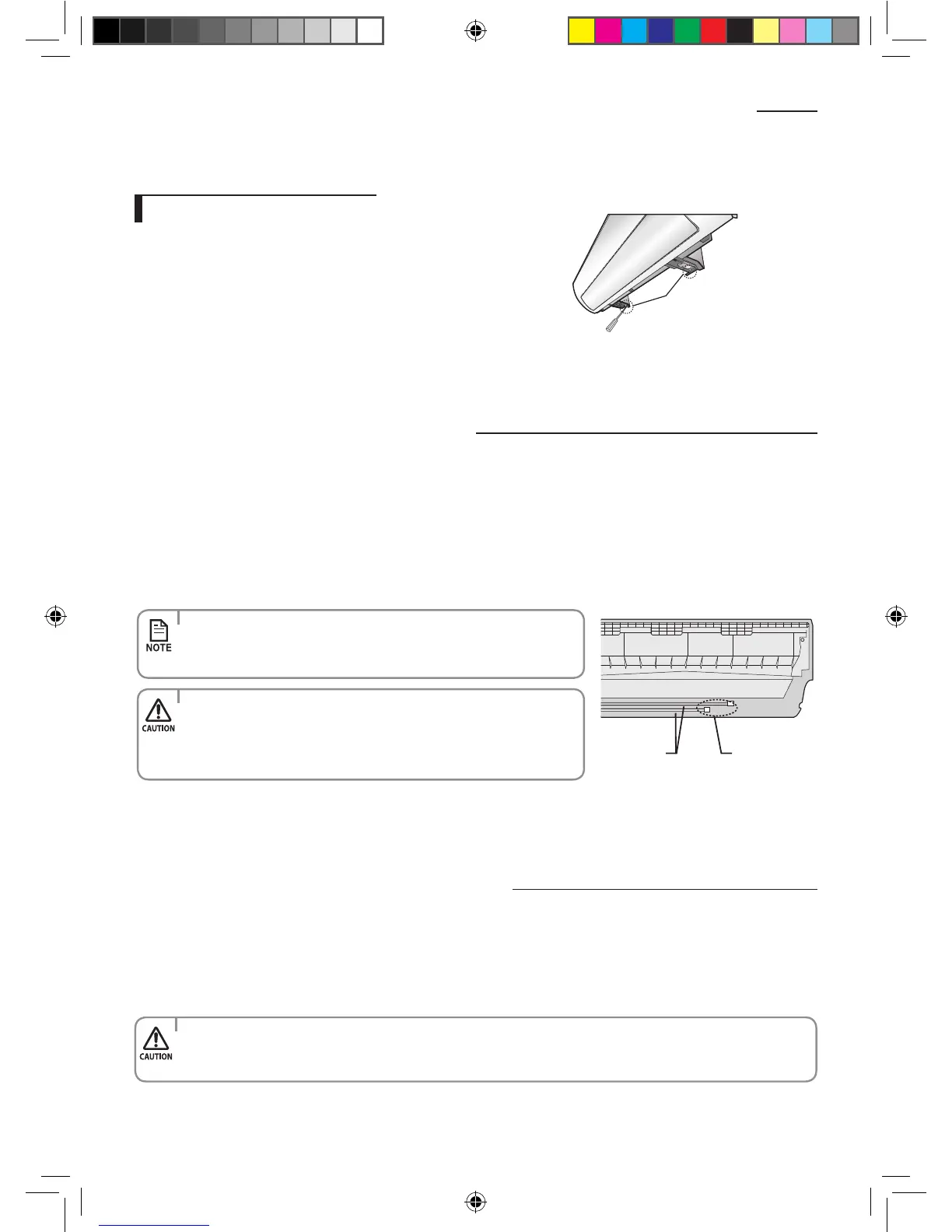

Cutting or extending the pipe
1. Unscrew the caps at the end of each pipe.

All inert gas exhausts from the indoor unit.
The indoor unit is supplied with inert gas (nitrogen).
Before installing the unit, check if nitrogen gas ow out of indoor unit.
Ifthisoneisn’ttrue,DONOTINSTALLTHEUNITsinceleakagecouldbeinsidetheindoorunit.
Unscrew the
caps
Pipes
Assembling the hanger screw

Use 2 screws to x the indoor unit as shown in the picture.
Screw(M4x10)
Installing and connecting the assembly pipe of the indoor unit
English-40
