Installing and connecting the drain hose of the indoor unit

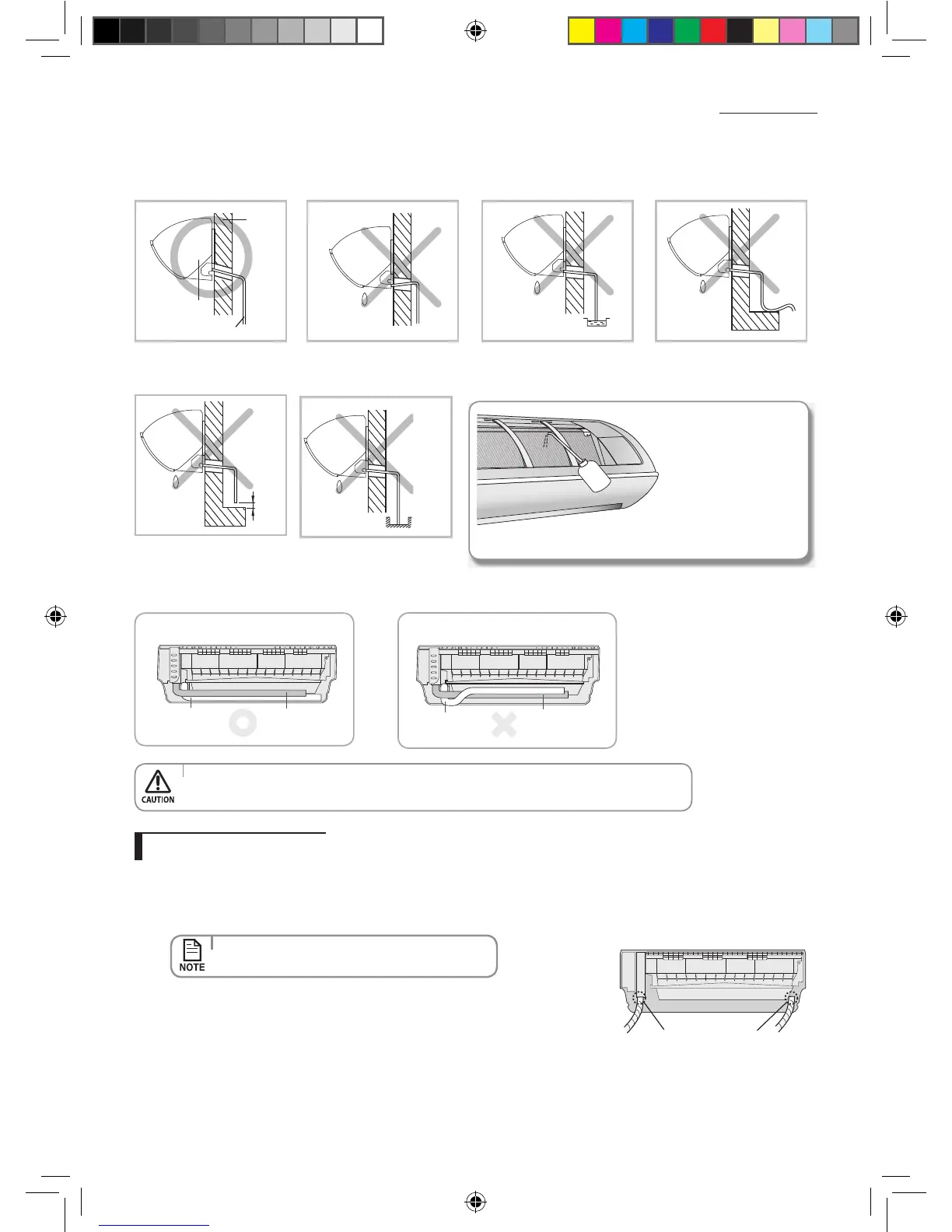

The drain hose must NOT
slant upwards.
The end of the drain hose
must NOT be placed under
water.
Keep a clearance of at least
5cm between the end of the
drain hose and the ground.
When installing the drain hose for the indoor unit, check if condensation draining is adequate.
Whenpassingthedrainhosethroughthe65mmholedrilledinthewall,checkthefollowings:
Drain hose installation
1. If necessary, connect the 2 meter extension drain hose to the drain hose.
2. If you use the extension drain hose, insulate the inside of the extension drain hose with a shield.
3. Fit the drain hose into 1 of 2 drain hose holes, then x the end of the drain hose tightly with a clamp.
4. WhenextendingtheDrainHose,holdtheendofDrainHoseandExtendedHose,
rotateandinsertthedrainhoseintoExtendedhosefor40~45 mm. Make sure the
two hoses are rmly connected, there is no water leakage.
5. ConnecttheDrainHoseafterusingFoamInsulationtowraptheExtendedHose.Then,Usevinyltapetowrapthe
each side of connection by 20 mm .
• Ifyoudonotusetheotherdrainhosehole,
block it with a rubber stopper.
Drain hose hole
Wall
Indoor unit
Drain hose
The drain hose must not
be bent.
5cm
less
Do not place the end of the
drain hose in a hollow.
Ditch
After completing the
installation of the drain
hose, pour water into
the drain pan to check
whether the hose is well
drained.
• Don’t tie drain hose to the assembly pipe which may lead to water leakage.
1) Correct connection
Pipe
Drain hose
2) Incorrect connection
Pipe
Drain hose
