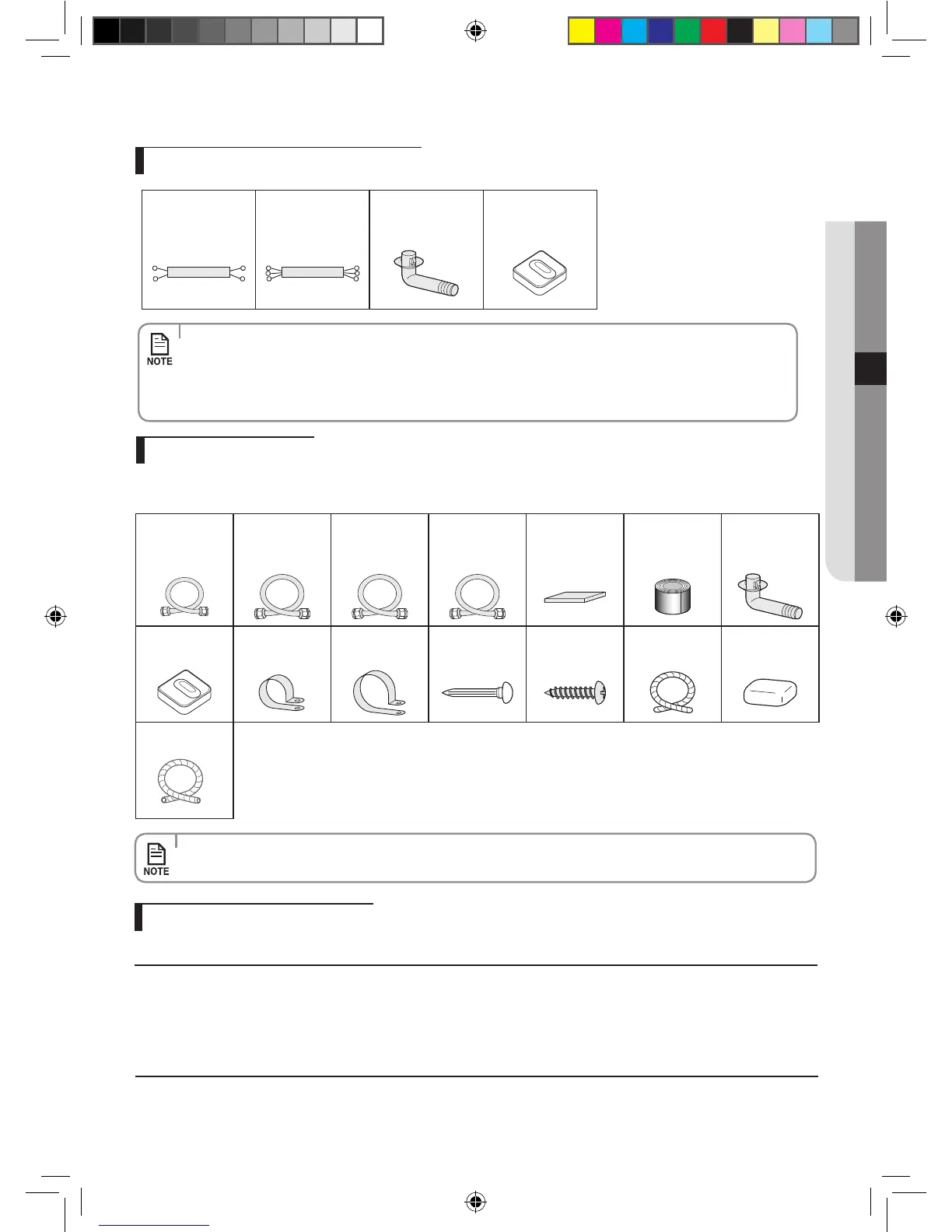

Samsung AR5000 - Optional Accessories; Tools Required for Installation

Accessories in the outdoor unit case
• Thearenutsareattachedtotheendofeachpipeofanevaporatororaserviceport.
Use the nuts when connecting the pipes.
• Theassemblycableisoptional.Ifitisnotsupplied,usethestandardcable.
• Thedrainplugandrubberlegareonlyincludedwhentheairconditionerissuppliedwithouttheassembly
pipe as seen in the picture below.
2-wire
Assembly Cable (1)
ARHP
3-wire
Assembly Cable (1)
Drain Plug (1)
ARHP
Rubber Leg (4)
Tools required for installation
General Tools
•VacuumPump(Backwardowingprevention) •ManifoldGauge •StudFinder
•TorqueWrench •PipeCutter •Reamer •PipeBender •SpiritLevel
•ScrewDriver •Spanner •Drill •LWrench •MeasuringTape
Tools for test operations
•Thermometer •ResistanceMeter •Electroscope
Optional accessories
The following connection accessories are optional. If they are not supplied, you should obtain them before installing the air
conditioner.
• Iftheseaccessoriesaresupplied,theywillbeintheaccessorybox.
Insulated
Assembly Pipe,
Ø6.35mm (1)
Insulated Assembly
Pipe, Ø9.52mm (1)
 09 
Insulated Assembly
Pipe, Ø12.70mm (1)
 12/18 
Insulated Assembly
Pipe, Ø15.88mm (1)
 24 
PET3FoamTube
Insulation (1)
Vinyl Tapes (2)
Drain Plug (1)
ARHP
Rubber Legs (4) Pipe Clamps A (3) Pipe Clamps B (3) Cement Nails (6)
M4 x 25 Tapped
Screws (6)
Drain Hose,
length 2m (1)
Putty 100g (1)
Foam
Insulation(1)
English-33
INSTALLATION05
