Reverse Side
―
The colour and shape of parts may differ from what is shown. Specifications are
subject to change without notice to improve quality.
RJ45 USB USB(PC)AUDIO OUT RS232C IN HDMI INDC 14V
SD CARD
PoE+/RJ45

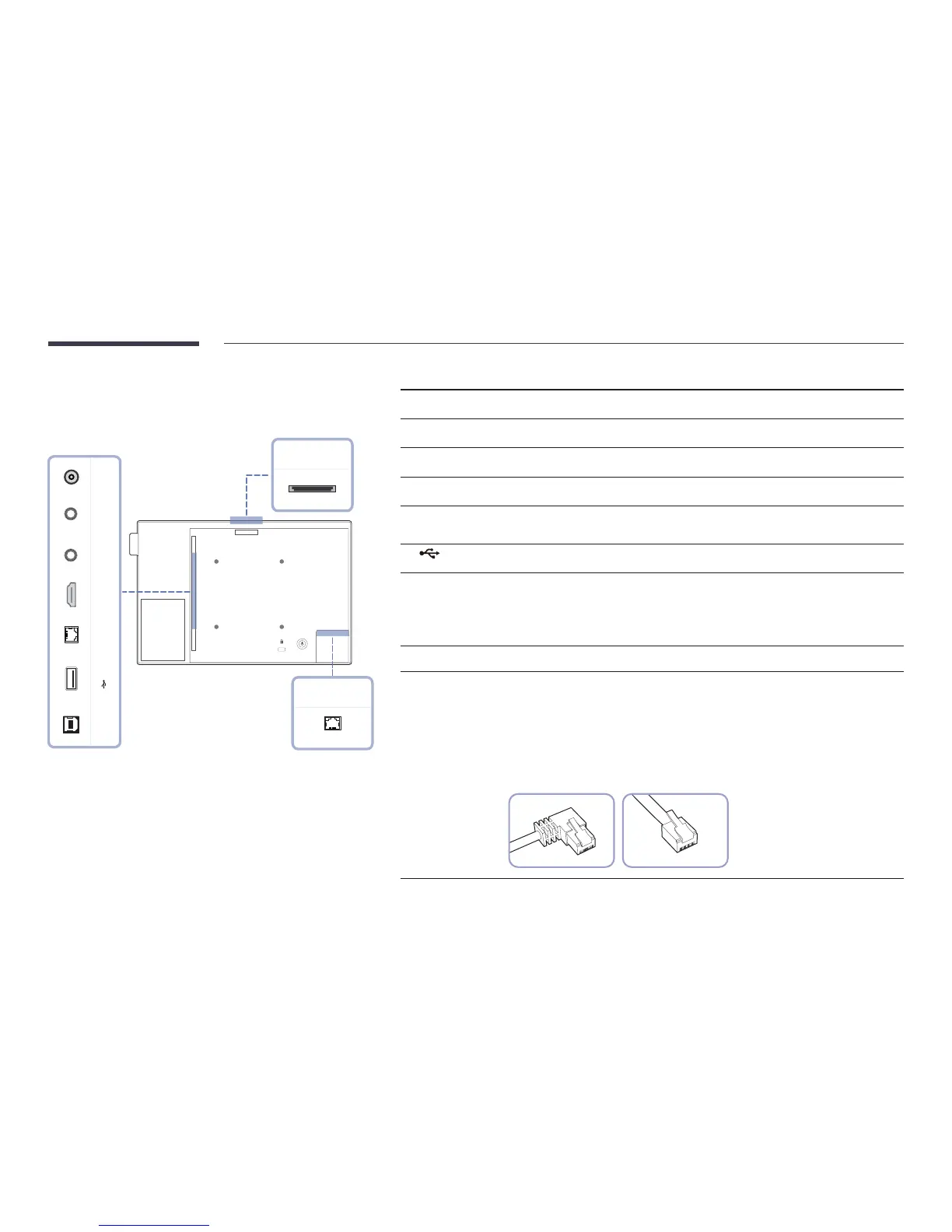

Port Description
DC 14V
Connects to the DC power adapter.
AUDIO OUT
Connects to the audio of a source device.
RS232C IN
Connects to MDC using an RS232C-Stereo cable.
HDMI IN
Connects to a source device using an HDMI cable.
RJ45
Connects to MDC using a LAN cable.
―
Model DB10E-T is only supported.
USB
Connect to a USB memory device.
USB(PC)
Connect to your PC via a USB 2.0 upstream cable.
―
The product can be connected only to a desktop, laptop or tablet PC.
―
The USB 2.0 upstream cable is sold separately.
―
Model DB10E-T is only supported.
SD CARD
Connect to an SD memory card.
PoE+/RJ45
Connects to a PSE(Power Sourcing Equipment) using a LAN cable.
A malfunction can occur if you insert or remove the power adapter while power is being supplied
to the PoE+(Power over Ethernet) port on the product from the PSE (Power Sourcing Equipment).
Connects to MDC using a LAN cable.
―
Model DB10E-POE is only supported.
―
To install the monitor using the STATND BAR, purchase and use the type of LAN cable shown in
the picture below.
To Next Page
