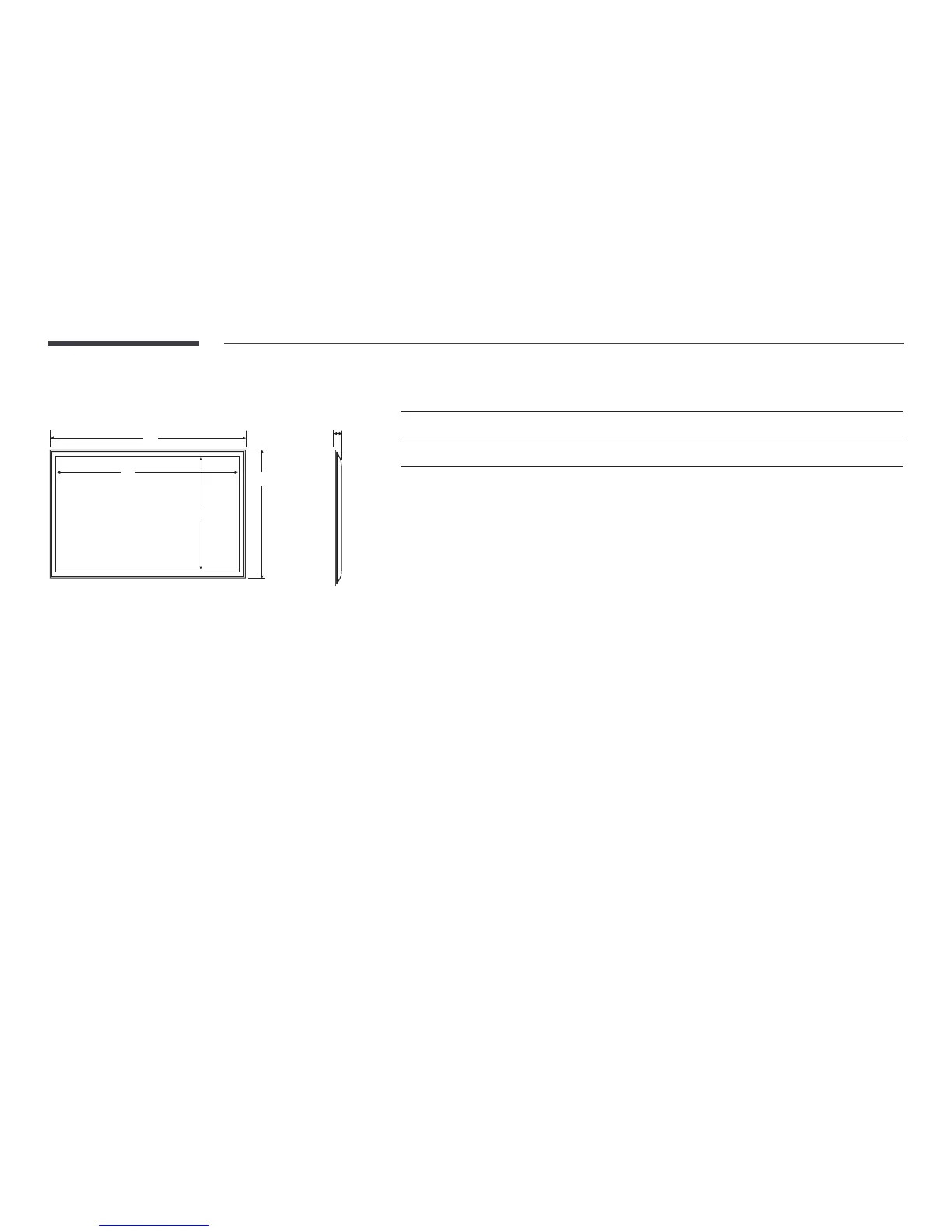

Dimensions

Unit: mm (inches)

Model name

3 4

DB10E-T 246.8 (9.72) 218.6 (8.61) 137.0 (5.39) 165.2 (6.50) 27.9 (1.10)

DB10E-POE 246.8 (9.72) 218.6 (8.61) 137.0 (5.39) 165.2 (6.50) 27 (1.06)

―

All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice.

Refer to the dimensions prior to performing installation of your product. Not responsible for typographical or printed errors.
