Samsung DB10E-TPOE

To Next Page

To Previous Page

•

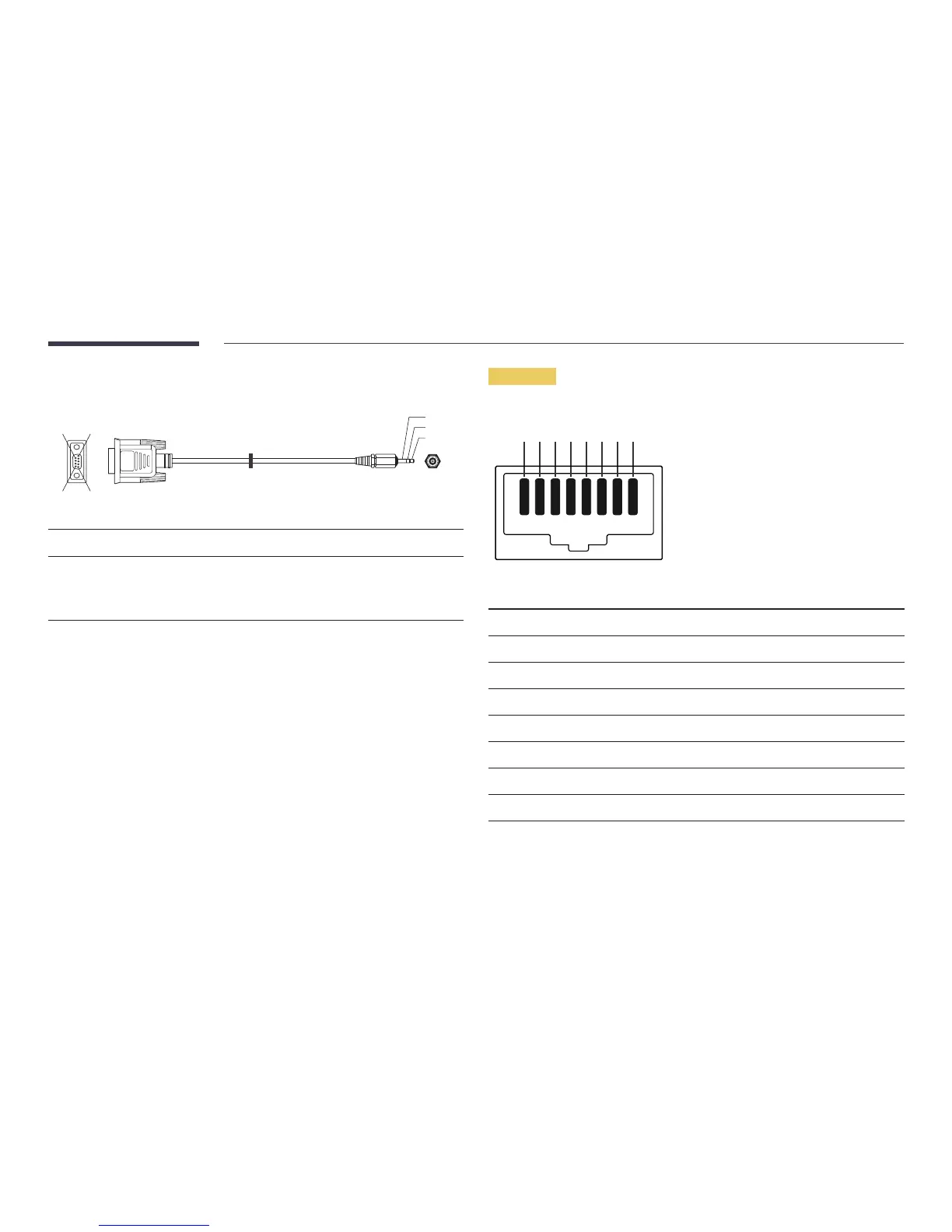

Connector : RJ45

Direct LAN cable (PC to HUB)

RJ45 RJ45 MDC

HUB

P1P2

Signal

P1 P2 Signal

TX+

1 <--------> 1 TX+

TX-

2 <--------> 2 TX-

RX+

3 <--------> 3 RX+

RX-

6 <--------> 6 RX-

Cross LAN cable (PC to PC)

RJ45

P1 P2

Signal

P1 P2 Signal

TX+

1 <--------> 3 RX+

TX-

2 <--------> 6 RX-

RX+

3 <--------> 1 TX+

RX-

6 <--------> 2 TX-
