12 _ Removal and Reassembly
Part Figure Description

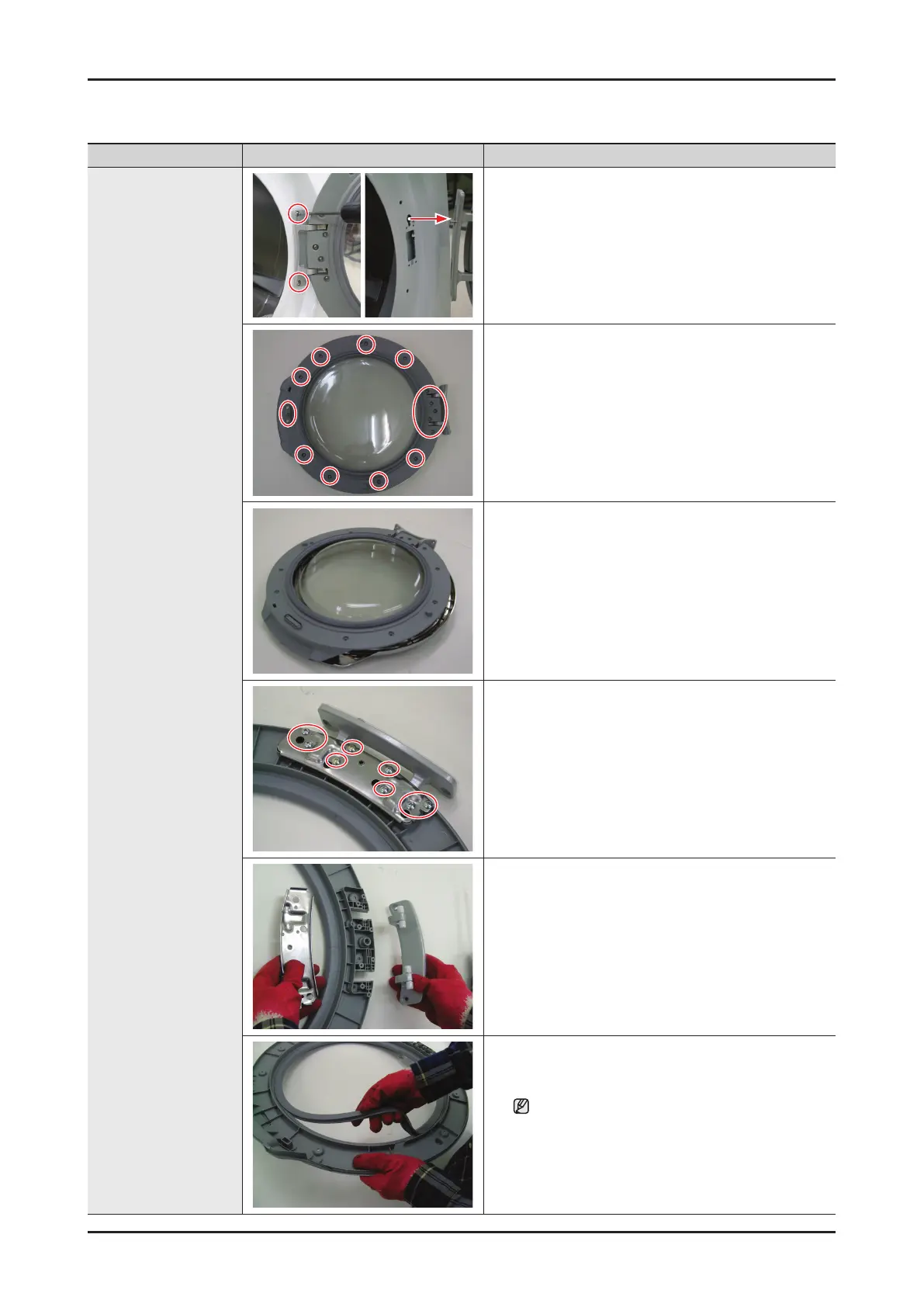

Door Removal
1. Door Opening
2. Remove 2 Screw from the Frame panel
3. Separate the temporary fixation part of the
assembly door.
4. Remove 15 screw from the Holder Glass
5. Remove the Door cover
6. Remove 8 screw from the Support-Hinge
7. Remove the Support-Hinge, Hinge
8. Remove the Door Seal
A. Be careful not to scratch the door cover.
B. Be careful of the damage to the door glass.
C. Check the door seal condition after the
assembly.
