3. Disassembly and Reassembly
3-6 Removing The Latch-Door & Switch-Door Plunger
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
CAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp edges may be
present, and you can cut yourself if you are not careful.

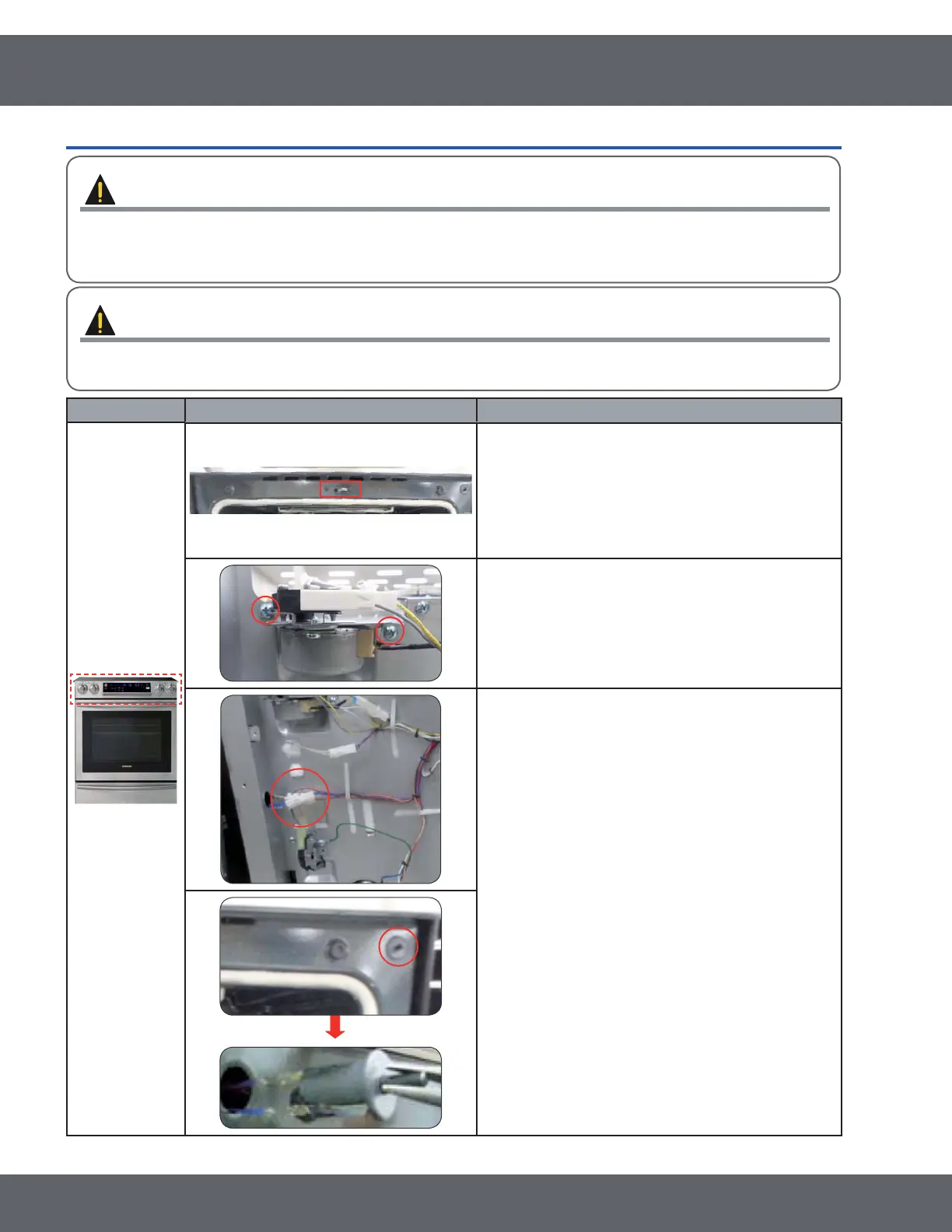

Parts Explanation Photo Explanation
Latch-Door
& Switch-
Door Plunger
1. Turn off the electrical supply going to the range.
2. Open the oven door.
3. Raise the cooktop (see page 14 for the
procedure).
4. To remove the Latch-Door:
a) Remove the 2 screws from the front of cavity.
b) Remove two screw from Cover-Back Main
Guard and remove latch-door
5. To remove the Switch-Door Plunger
a) Remove the Cover-Back Guard Wire.
(see page 10 for the procedure).
b) Release the wire from Cable Clamp.
c) Remove the Switch-Door Plunger from the
range. Remove the switch carefully with a
pair of pliers and using a slight up and down
motion while pulling the switch out.
* Reassembly of All part is the reverse order of disassembly.
