3. Disassembly and Reassembly

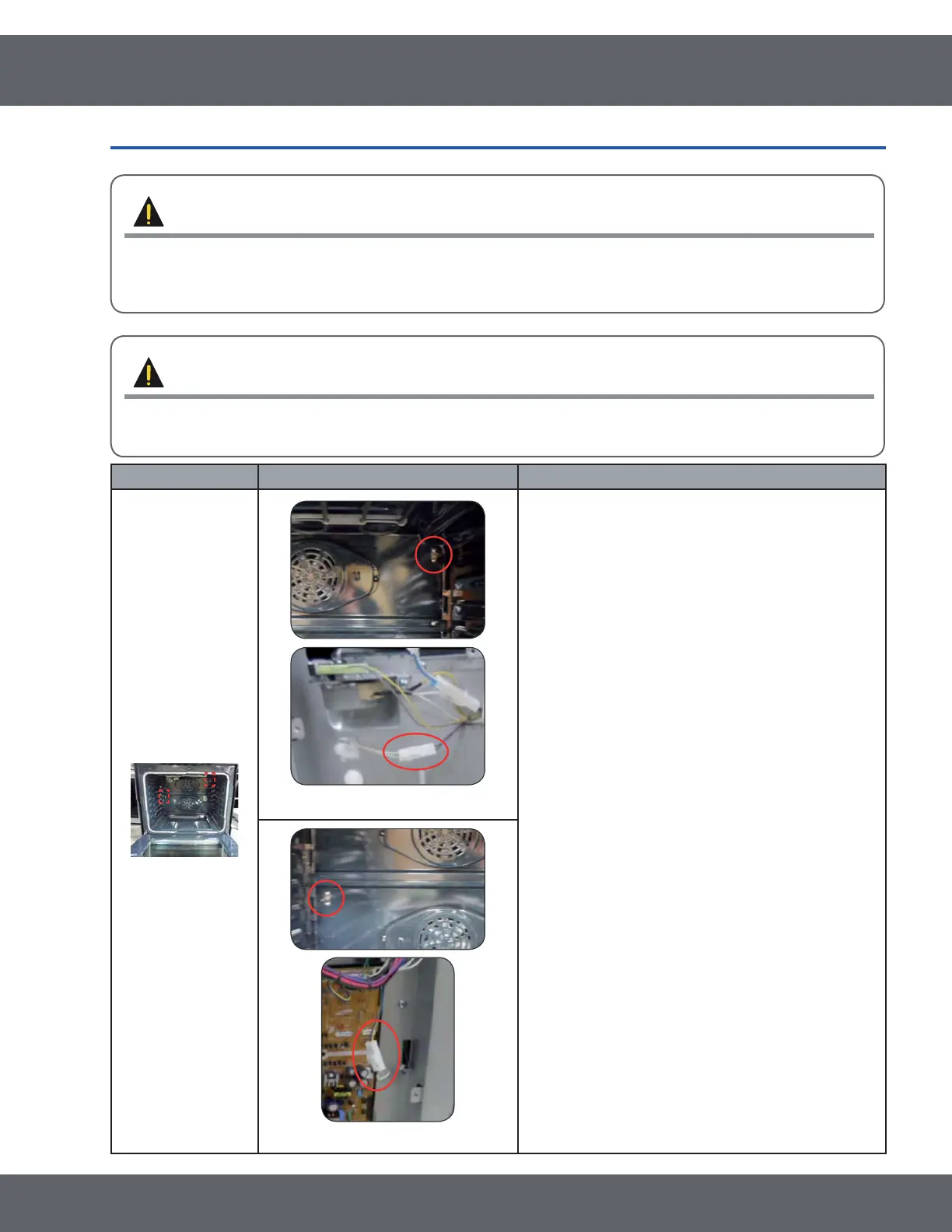

3-11 Removing Sensor-Thermistor
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
PRECAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp edges may
be present, and you can cut yourself if you are not careful.
Parts Explanation Photo Explanation
Sensor-Thermistor
Upper Sensor
1. Turn off the electrical supply going to the range
and remove the oven from its mounting location.
2. Remove oven door and racks from inside the
oven.
3. Unscrew Sensor-Thermistor.
4. Remove Cover-Back Main Wire and disconnect a
wire from Sensor-Thermistor.
5. Replace the Sensor-Thermistor.
Lower Sensor
* Reassembly of All part is the reverse order of disassembly.
