Samsung FER710DRS - Removing Convection Element, Fan-Convection and Motor-Convection

17
3. Disassembly and Reassembly
5HPRYLQJ&RQYHFWLRQ(OHPHQW)DQ&RQYHFWLRQDQG0RWRU&RQYHFWLRQ

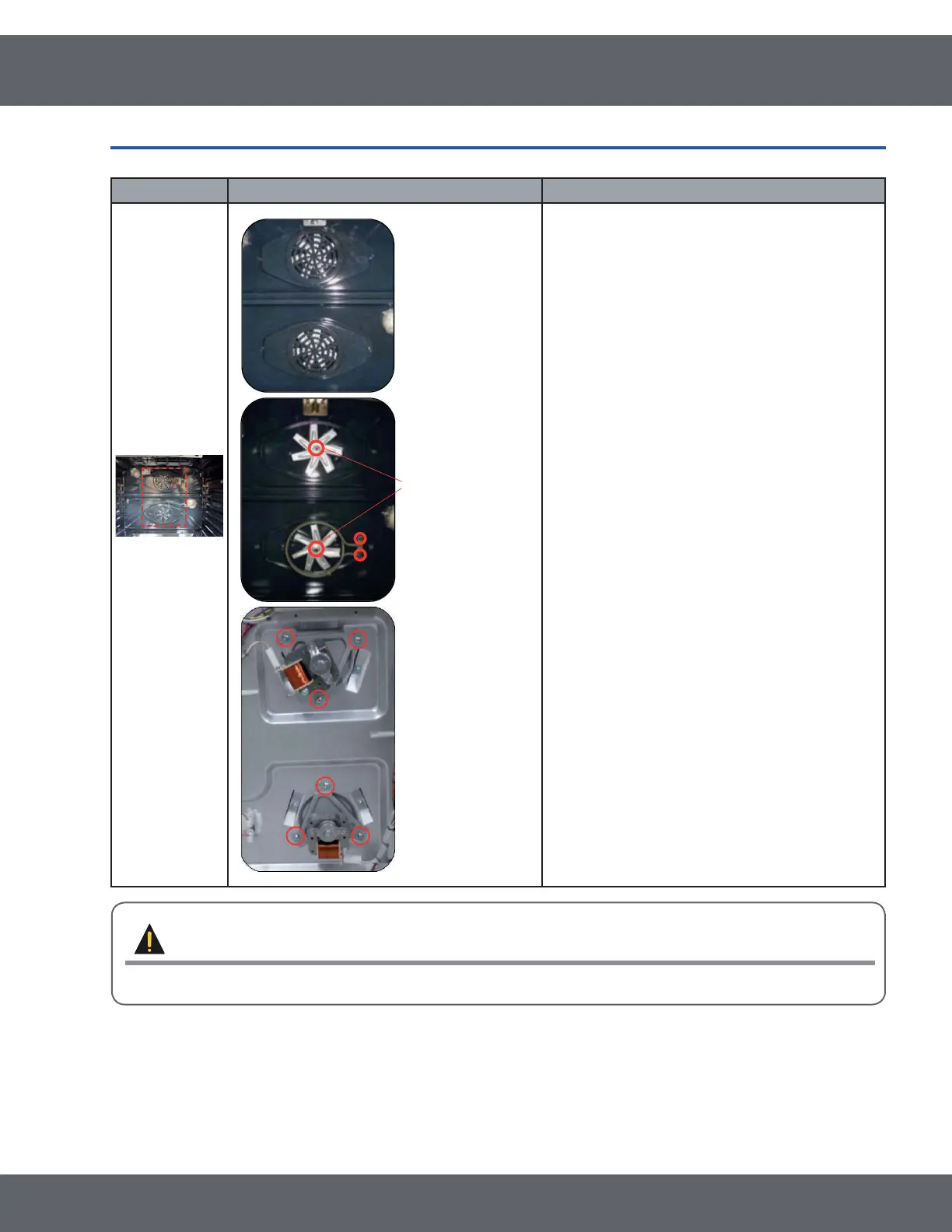

Parts Explanation Photo Explanation
Convection
Element, Fan-
Convection
, Motor-
Convection
1. Disconnect power and remove oven racks.
2. Pull the range out of its mounting location so
that you can access the rear of the unit.
3. Remove Cover-Back Main Wire from the unit.
(See step 3 on page 10 for procedure)
4. Remove oven door. (See Page 29 on page
for procedure)
5. Unscrew 2 screws and remove Cover-Casing.
6. Unscrew 2 screws and remove Bracket-
Convection
Heater to remove Heater-Convection.
7. Unscrew nut of Fan-Convection, and 2 Fan-
Convection.
8. Unscrew 3 points and disconnect a Motor-
Convection
wire and disconnect Heater-Convection wire.
* Reassembly of All part is the reverse order of disassembly.
CAUTION
Be careful not to bend the Fan-Convection(Blade)
Bracket convection
heater
