3. Disassembly and Reassembly

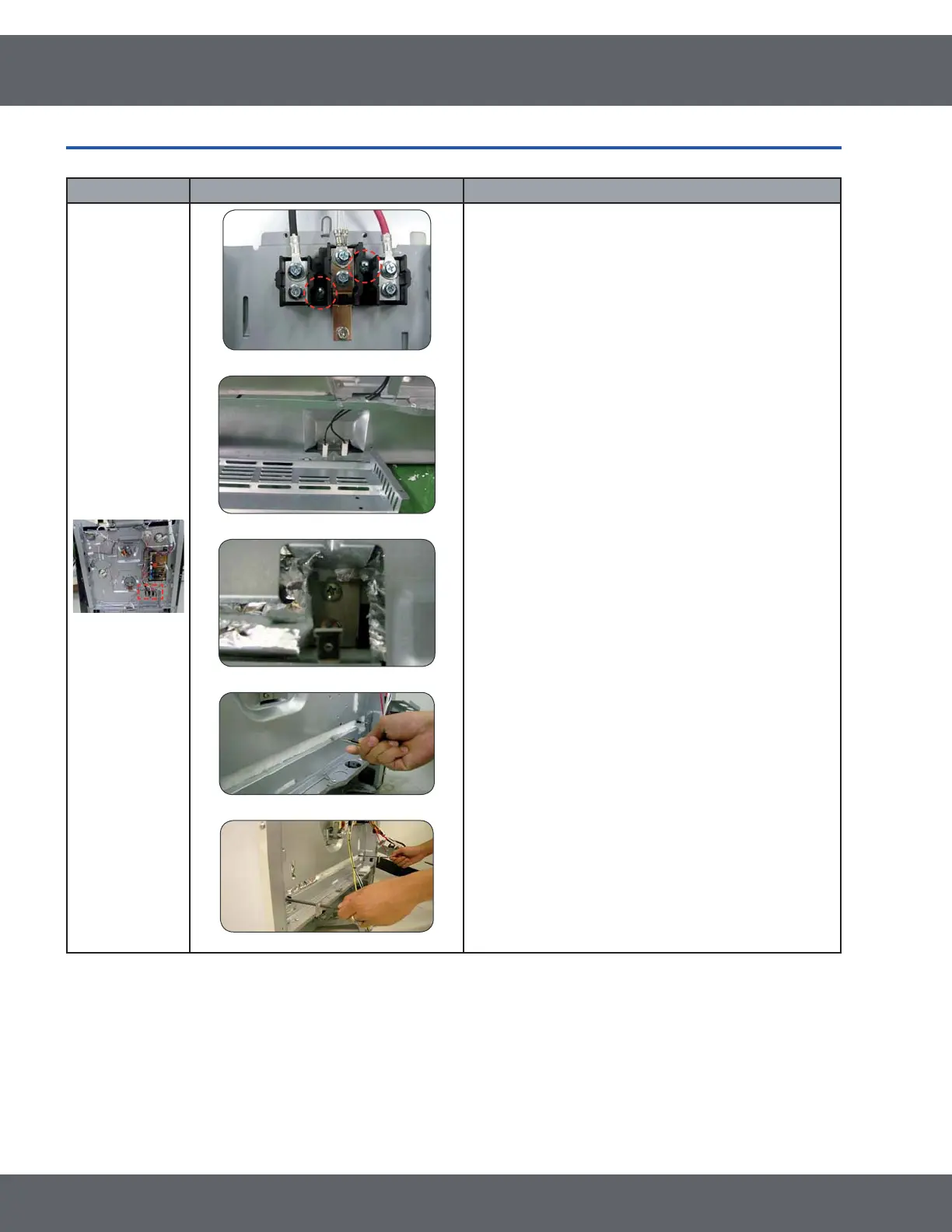

3-8 Removing Heater-Bake
Parts Explanation Photo Explanation
Heater-Bake
1. Unplug range or disconnect power.
2. Pull the range out of its mounting location so that
you can access the rear of the unit.
3. Remove Cover-Back Main Wire.
(See step 3~4 on page 10 for procedure)
4. Remove Terminal-Block and Bracket-Cover
Access(with Adiabatic-Terminal) by unscrew
3 points.
5. Disconnect the two wires from the warming drawer
heating element.
6. Remove the duct By unscrew 4 points.
7. Remove the two screws securing the Heater-Bake.
8. Cut the insulation on the lower side.
9. Carefully pull out Heater-Bake and replace it.
* Reassembly of All part is the reverse order of disassembly.
