3. Disassembly and Reassembly
3-15 Removing Handle-Door and Glass-Inner (Continued)

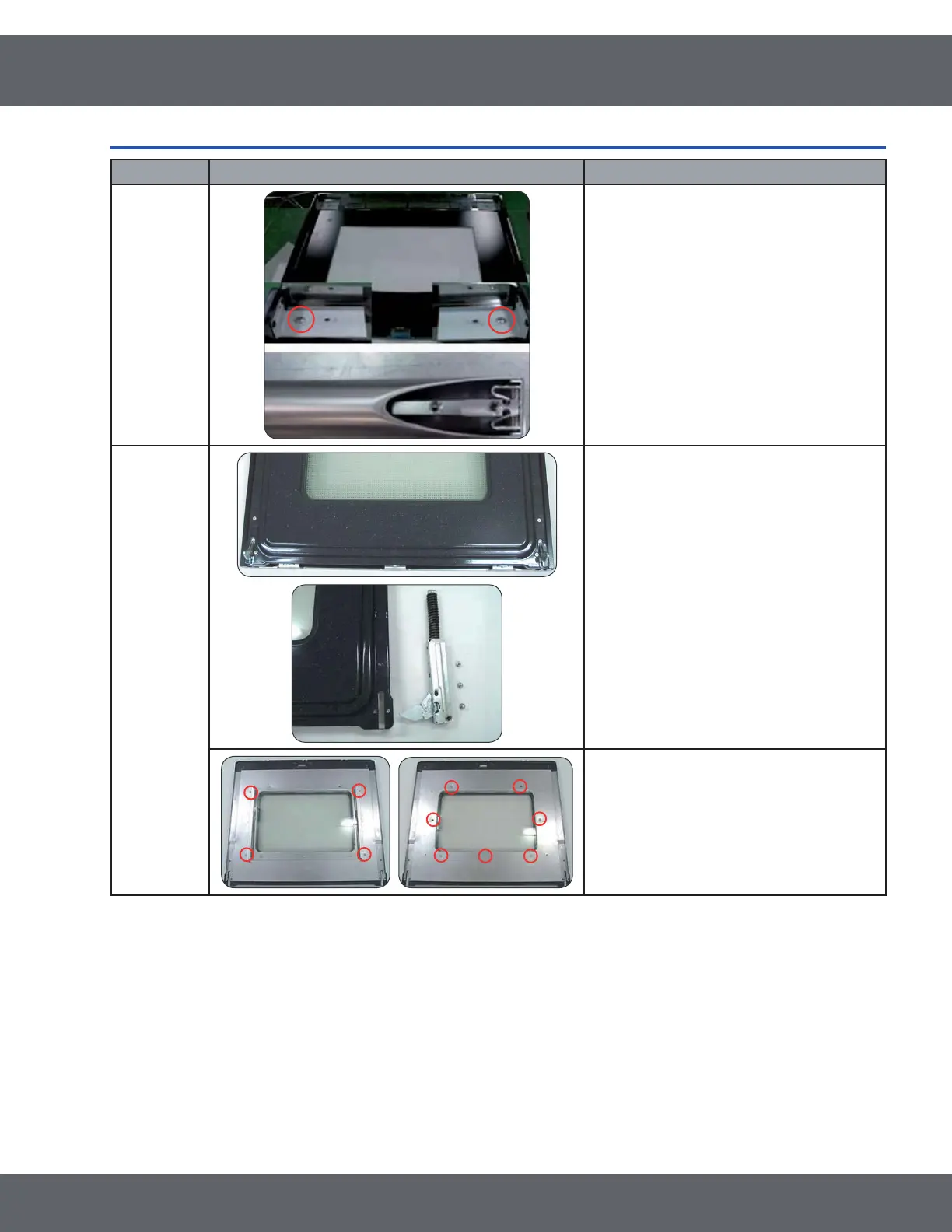

Parts Explanation Photo Explanation
Handle
Door
To remove Handle-Door
1. Remove 2 screws to remove Handle-
Door
Glass-Inner
To remove Glass-Inner
1. Remove 6screws from rear side of door
to remove 2 Hinge-Door.
2. Remove 4screws ro remove Glass-
Inner Sub Assembly
3. 5HPRYHVFUHZVURUHPRYH%DIÀH
Door
