2-5. IER-F + IER-F L-Type Installation
• When the Frame F Lv3 is used, repeat JIG fastening and screw fastening from top to bottom.
• After fastening the Frame F to the wall with screws, for detaching the JIG F from the Frame F,
Remove a JIG F from the L Support and then remove another JIG F.
* Otherwise, be careful because deformation may happen to the JIG F or L Support.

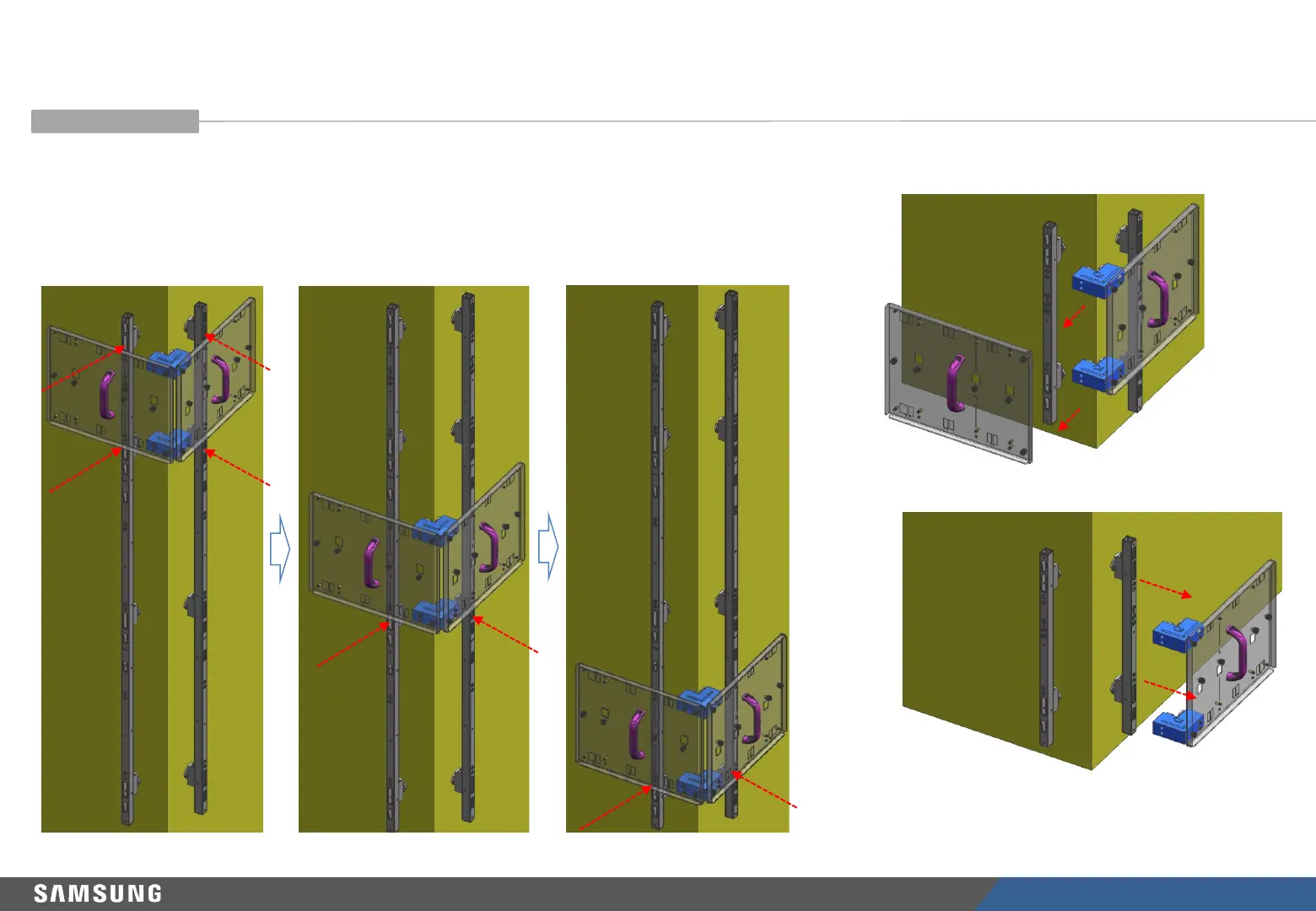

Fig 19. Frame F’s Lv3 L-type Installation Order
Fig 20. L-type JIG Disassembly Order
