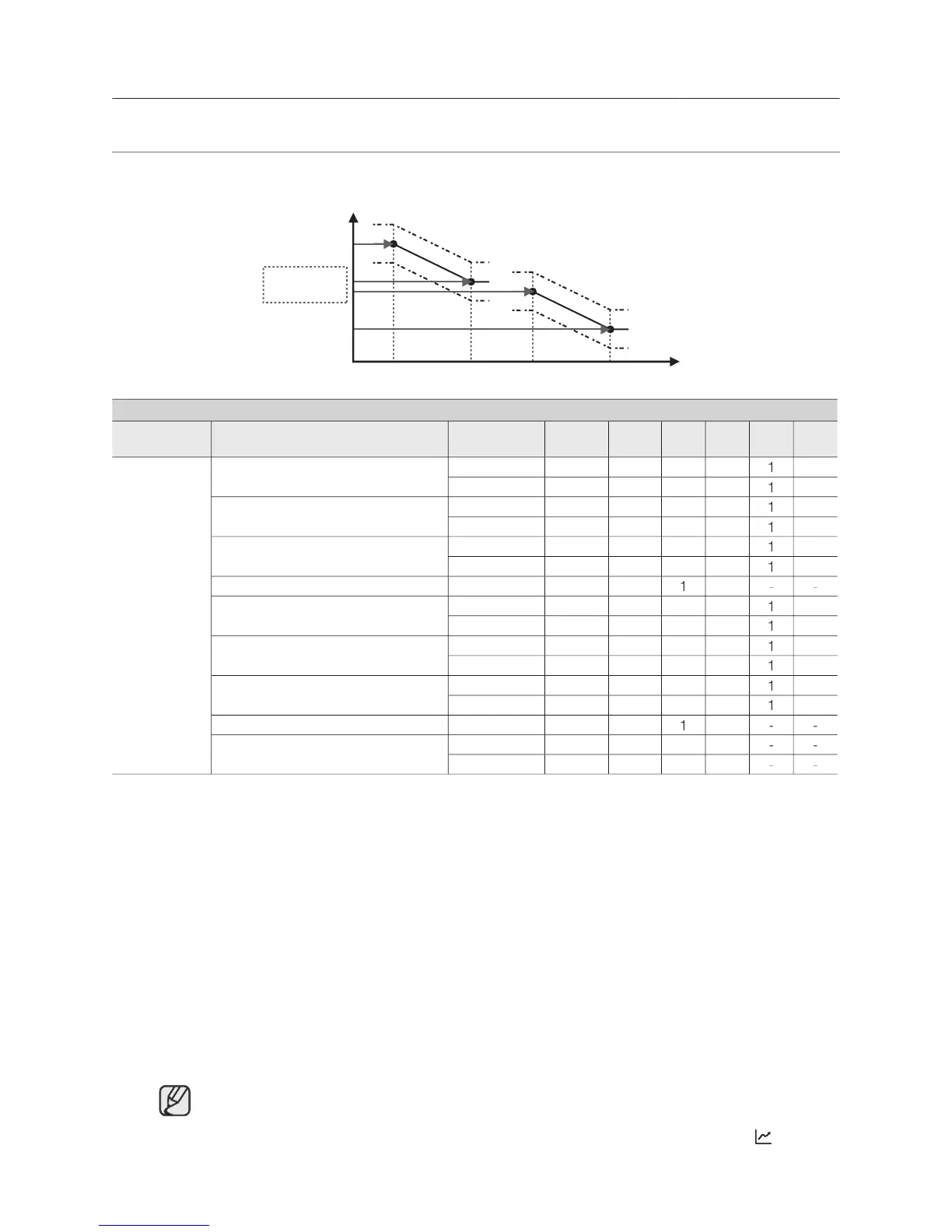

FIELD SETTING MODE
Water Law & Room Thermostat : Code 20
✴✴
Ts
Heating WL
Cooling WL
Shift Value

①
①
②
②
Ta


#2021/2031
#2022/2032
#2061/2071
#2062/2072
#2011 #2012 #2051 #2052
Floor FCU
Field Setting Value
Main Menu &
Code
Sub Menu Function
Description
Sub
Code
Default
Min
Max
Step
Unit
Water Law
Code 20
✴✴
Outdoor Temp for Water Law
(Heating)
Point
➀
✴✴
11
-10
-20
5
1
˚C
Point
➁
✴✴
12
15
10
20
1
˚C
Water Out Temp for WL1 Heating
(WL1-Floor)
Point
➀
✴✴
21
40
40
55
1
˚C
Point
➁
✴✴
22
25
17
37
1
˚C
Water Out Temp for WL2 Heating
(WL2-Fan Coil Unit)
Point
➀
✴✴
31
50
40
55
1
˚C
Point
➁
✴✴
32
35
17
37
1
˚C
Heating Water Law for Auto Mode
WL Type
✴✴
41
1(WL1)
1
2(WL2)
-
-
Outdoor Temp for Water Law
(Cooling)
Point
➀
✴✴
51
30
25
35
1
˚C
Point
➁
✴✴
52
40
35
45
1
˚C
Water Out Temp for WL1 Cooling
(WL1-Floor)
Point
➀
✴✴
61
25
18
25
1
˚C
Point
➁
✴✴
62
18
5
18
1
˚C
Water Out Temp for WL2 Cooling
(WL2-Fan Coil Unit)
Point
➀
✴✴
71
18
18
25
1
˚C
Point
➁
✴✴
72
5
5
18
1
˚C
Cooling Water Law for Auto Mode
WL Type
✴✴
81
1(WL1)
1
2(WL2)
-
-
External Thermostat Application
#1(Floor)
✴✴
91
0(No)
0
1(Yes)
-
-
#2(FCU)
✴✴
92
0(No)
0
1(Yes)
-
-
Water Law for Heating
•
Outdoor air temperature range : Lower limit
➀
(#2011, Default -10˚C, Range : -20 ~ 5˚C),
Upper limit
➁
(#2012, Default 15˚C, Range : 10 ~ 20˚C)
- With this default settings, the water outlet temperature by heating water law can be
changed within the outdoor temperature range of -10 ~ 15˚C.
•
Water out temperature range for floor/FCU applications respectively :
Upper limit
➀
(#2021/2031, Default 40/50˚C, Range : 40 ~ 55˚C), Lower limit
➁
(#2022/2032,
Default 25/35˚C, Range : 17 ~ 37˚C)
- With this default settings, the water outlet temperature by heating water law can be
changed within the range of 25/35 ~ 40/50˚C.
•
Type of water law for according to heating devices(floor/FCU) : #3041(Default “1”(WL1 for
floor)), “2”(WL2 for FCU or radiator)
• The #2 DIP switch in the wired remote controller should be set to “OFF”(Default) to
control the water outlet temperature.
• The operation mode of the wired remote controller should be set to “AUTO”(
) to use
the weather dependent water law scheme.
