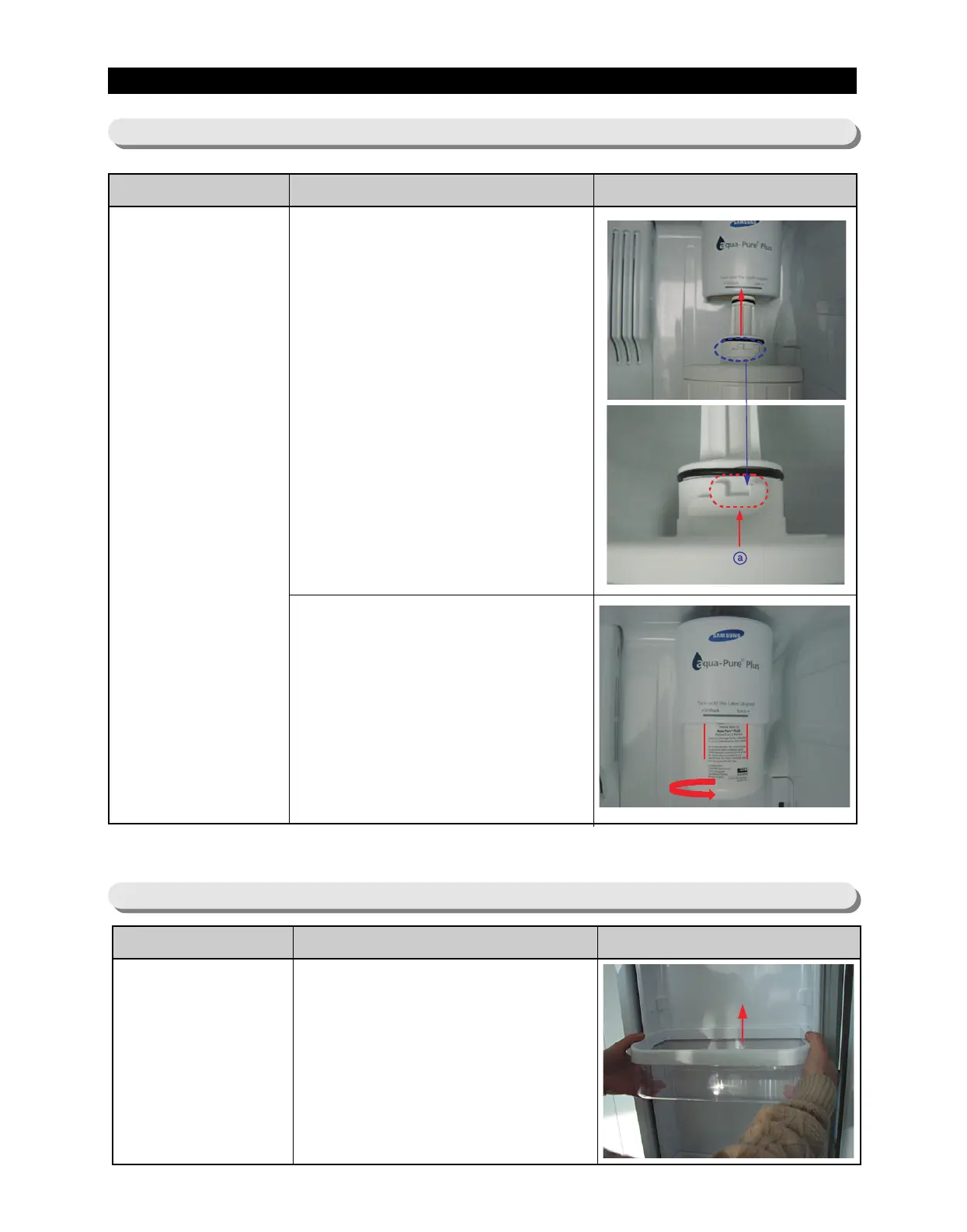

DISASSEMBLY AND REASSEMBLY

3-14) Water Filter (Reassembly)

3-15) Gallon Door Bin

Gallon Door Bin

Part Name How To Do Descriptive Picture

1. Remove the gallon door bin by

lifting it up.

(Refer to the picture)

Water

Filter

Part Name How To Do Descriptive Picture

1. Place the part of (ⓐ) arrow (that

is indicating in the picture) in the

middle of the front filter cover

and push it up.

2. Turn the water filter

counterclockwise until central

horizontal line of filter cover and

both ends of water filter label

are made all of the same width.

(Refer to the picture.)
