TROUBLESHOOTING
1. Water is automatically supplied to the Ice Maker by temperature & time and Ice Maker Dispenses cubed or
crushed ice.
2. Power is applied to the one end of wires. Be careful when disassembling and shall refer to its exploded diagram
in any case.
3. Ice Maker operation shall be checked after pressing the Ice Maker testing switch.
(Freezer Ice Maker) It is not possible to check when the power is disengaged.
4. We recommend that TWO PEOPLE check the PCB and Ice Maker because hey are located at front and rear
side each.
5. Be careful! The Ice Maker Heater can cause personal injury like burn.

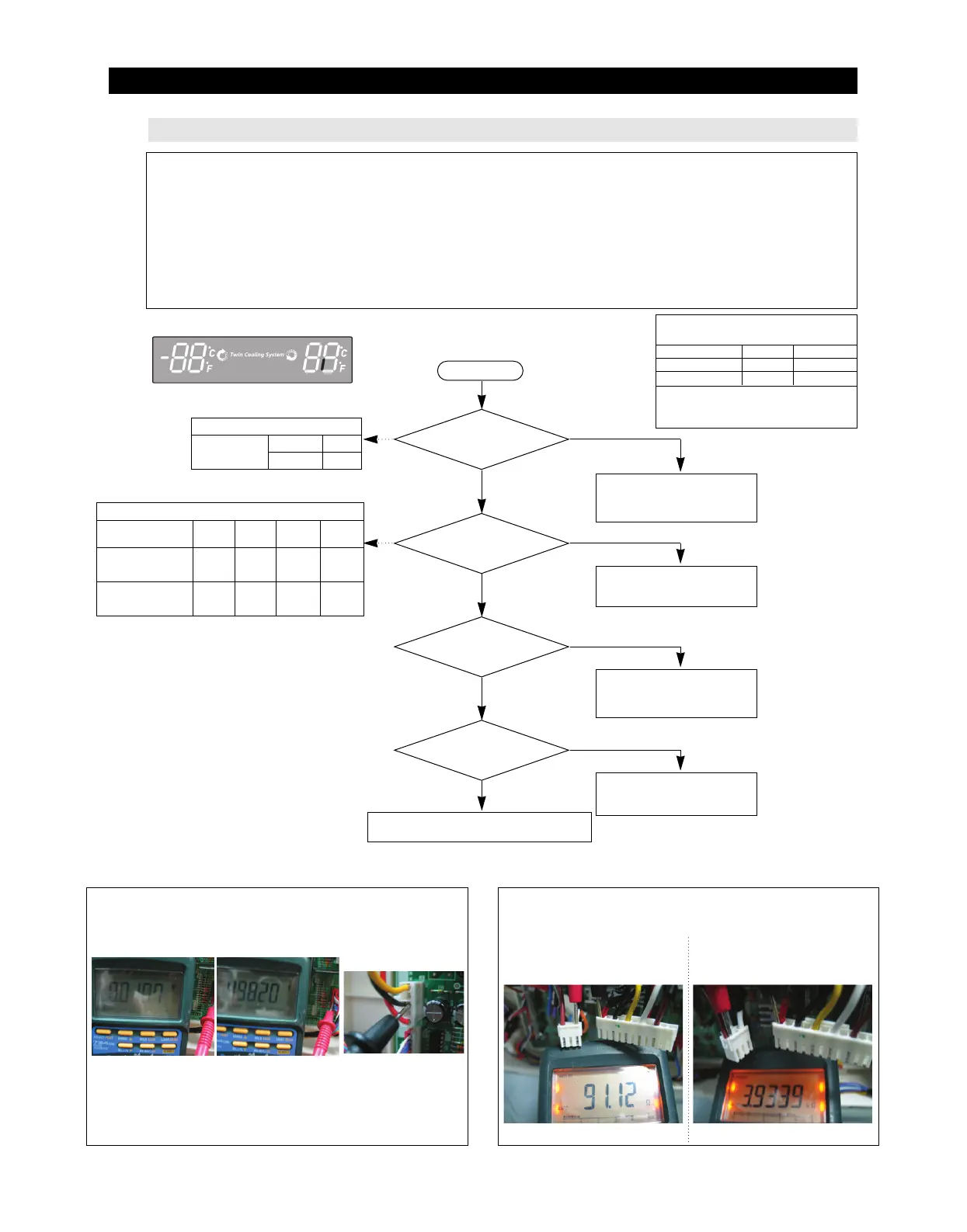

4-2-4. If Ice Maker does not operate
☞ Checking Method of ICE Maker Voltage
With typical PCB Ground CN1-”3”(Black) and
1) Test Switch operation (press selected) : CN90-”5” (Gray) shall be DC 0V.
Test Switch ready ; CN90-”5” (Gray) shall be less than DC 5V.
☞ Checking Method of ICE Maker Voltage
With typical PCB Ground CN1-”3”(Black) and
2) IC02 MICOM #27 voltage ; Ready(0V) → Rotate (4.9V) → Before
complete(4.9V) → Return(0V)
* MICOM #27 voltage is same as Connector CN90-”7”(Purple)
3) IC02 MICOM #28 voltage ; Ready(0V) → Rotate (0V) → Before
complete(4.9V) → Return(0V)
* MICOM #28 voltage is same as Connector CN90-”6”(Blue)
1)Test Switch operating 1)Test Switch ready
typical PCB Ground
CN1-"3"(Black)
Displays ERROR Code
2¢(-17¡) is recommended 38¢(3¡) is recommended
Start
1) Replace the Ice Maker Kit
2) Check/Replace the Main PCB
input signal
(Micom IC02 Pin #29 - “0V”)
Does Ice Maker
rotate when pressing the Ice Maker
testing switch(over 1.5 sec)?
No
1) Check the wiring connections.
2) Replace Ice Maker Kit
3) Replace MAIN PCB
Is the input voltage of IC02
MICOM #27, 28 normal?
No
1) Replace the Water Valve
* Refer to the operation
condition of Water Valve
2) Replace the Main PCB
Is the water supplied in 6
minutes (After sensing ice bucket
fully)?
No
1) Repair the Ice Maker Sensor
* Refer to the solution “If Ice
Maker Sensor has trouble”
No trouble with PCB and temperature sensor,
Check the bad wiring connections.
Is the Ice Maker Sensor unit normal?
No
Operating Condition when motor rotates
Operating Status of Micom(IC02)
Heater operates differently according to
the conditions.
Test Mode operation will be 30 sec.
Operation
5V
5V
Ready
0V
0V
Motor Load (#10)
Heater Load (#9)
MICOM(IC02) Operation Status
#29
(Test Switch)
Operation
5V
Ready
0V
MICOM(IC02) Operation Status
#27
(Blade Ice Scoop)
#28
(Guide Ice Full)
Ready Rotation
Before
Complete
Returning
0V 4.9V 4.9V 0V
0V 0V 4.9V 0V
☞ Check the ICE Maker Heater & Motor Resistance
Resistance value can be changed according to the Voltage and
Perfermance changes.
1) Measuring the Ice Maker Heater
resistance values
CN70-”1” (Red) & CN72-”3” (White)
Resistance value : 91(364)Ohm± 7% Resistance value : 3.93(11.76)KOhm± 7%
CN70-”1” (Red) & CN72-”1” (Brown)
2) Measuring the Ice Maker Motor
resistance values
Yes
Yes
Yes
Yes
