3-21) Ice-Maker
DISASSEMBLY AND REASSEMBLY
Ice Maker

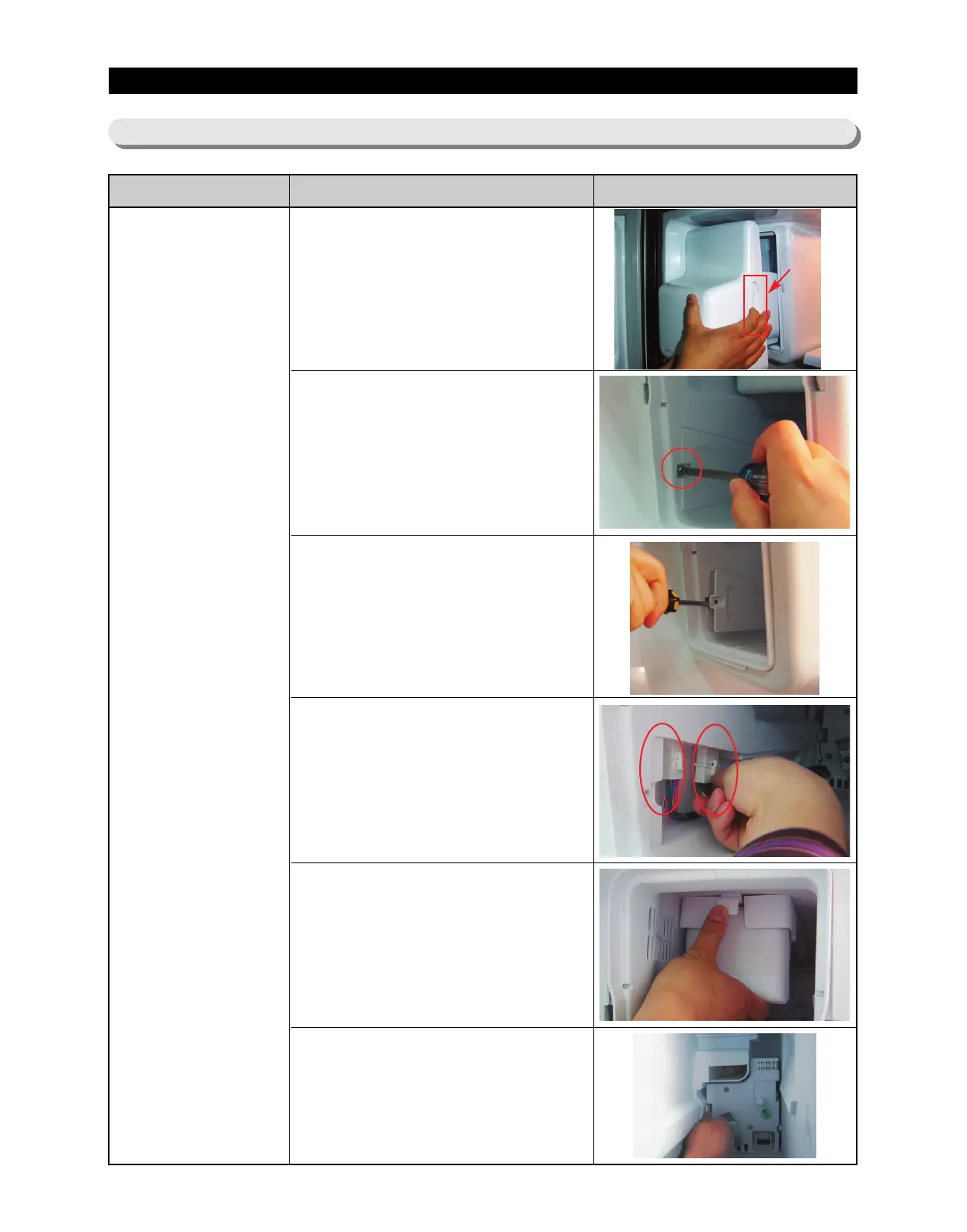

Part Name How To Do Descriptive Picture
2. Remove 1 screw of the Cover
1. Pull the Ice-Bucket lever and out
3. Disassemble the cover with a
flat-blade(-) screwdriver and pull
it out.
4. Disengage the 2 housing
connector.
5. Push hook and pull the Ice-
Maker out.
6. To disassemble, push the tab
and pull the case-auger and the
motor out.
