DISASSEMBLY AND REASSEMBLY
3-16) Vertical Hinged Section
Vertical Hinged
Section

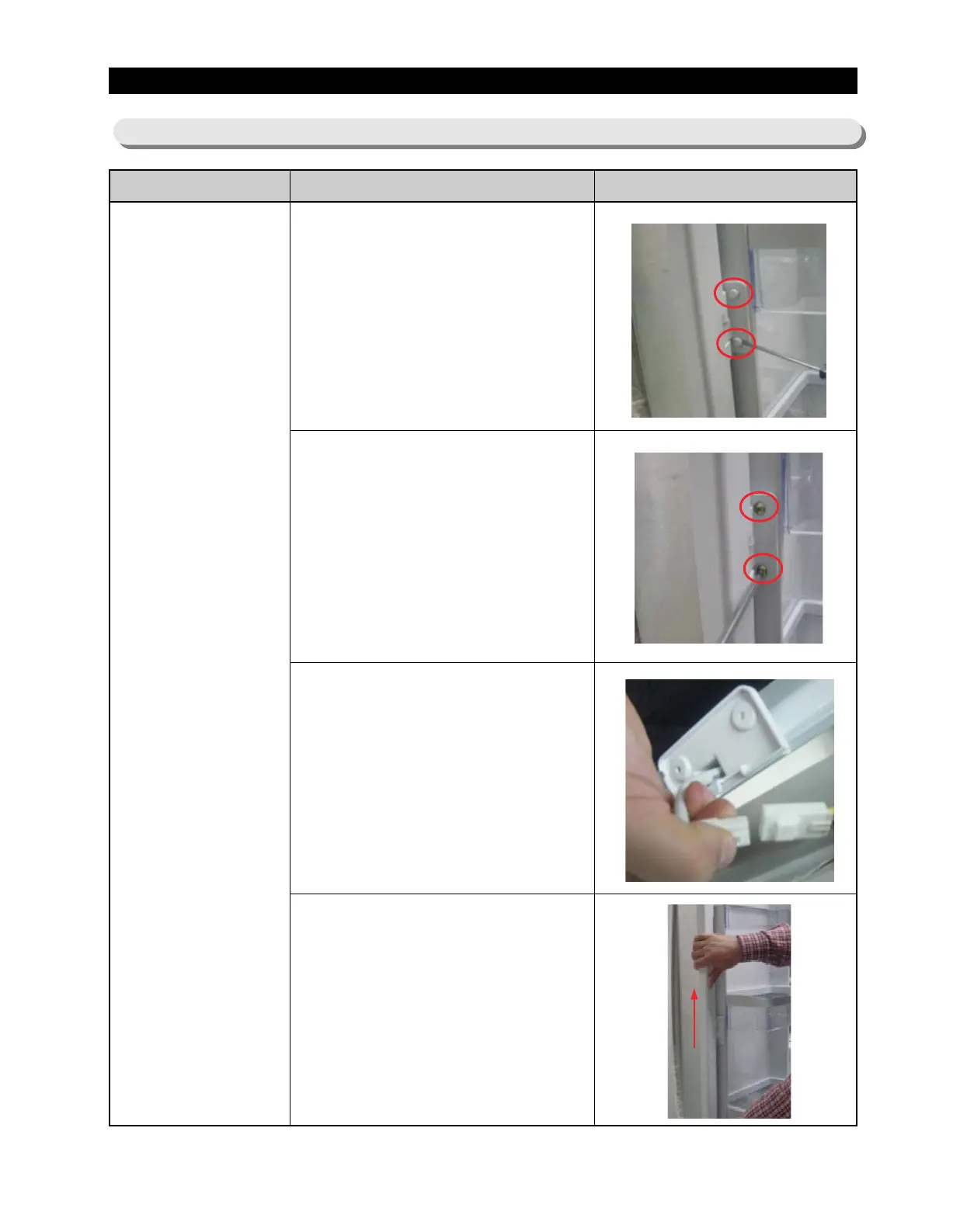

Part Name How To Do Descriptive Picture
1. Remove 2 screw cap parts with
a flat-blade(-) screwdriver.
(Refer to the picture)
2. Unscrew 2 screws.
3. Disengage the internal housing
connector of the vertical hinge.
4. Remove the vertical hinged
section by lifting the vertical
hinge up.
(Refer to the picture)
