English English _ 83
FUNCTIONAL DESCRIPTION
Alarm Output
Main Menu/Alarm Setting/Alarm Output
Setting 1,2 :
1, 2, Motion, and Support Device indicate
alarm input ports, Motion Detection, and
support device input. A total of 4 alarms,
Motion Detection, and support devices can be
set up to output alarms. 1 alarm output port
can be used for more than 2 alarm inputs and
Motion Detection.
Timer 1,2 :
Enables selecting an Alarm Output method.
On : Retains an alarm output for a set
duration from a minimum of 1 second
to a maximum of 60 minutes upon the
alarm occurrence.
Momentary : Retains an alarm output only
until the alarm is canceled.

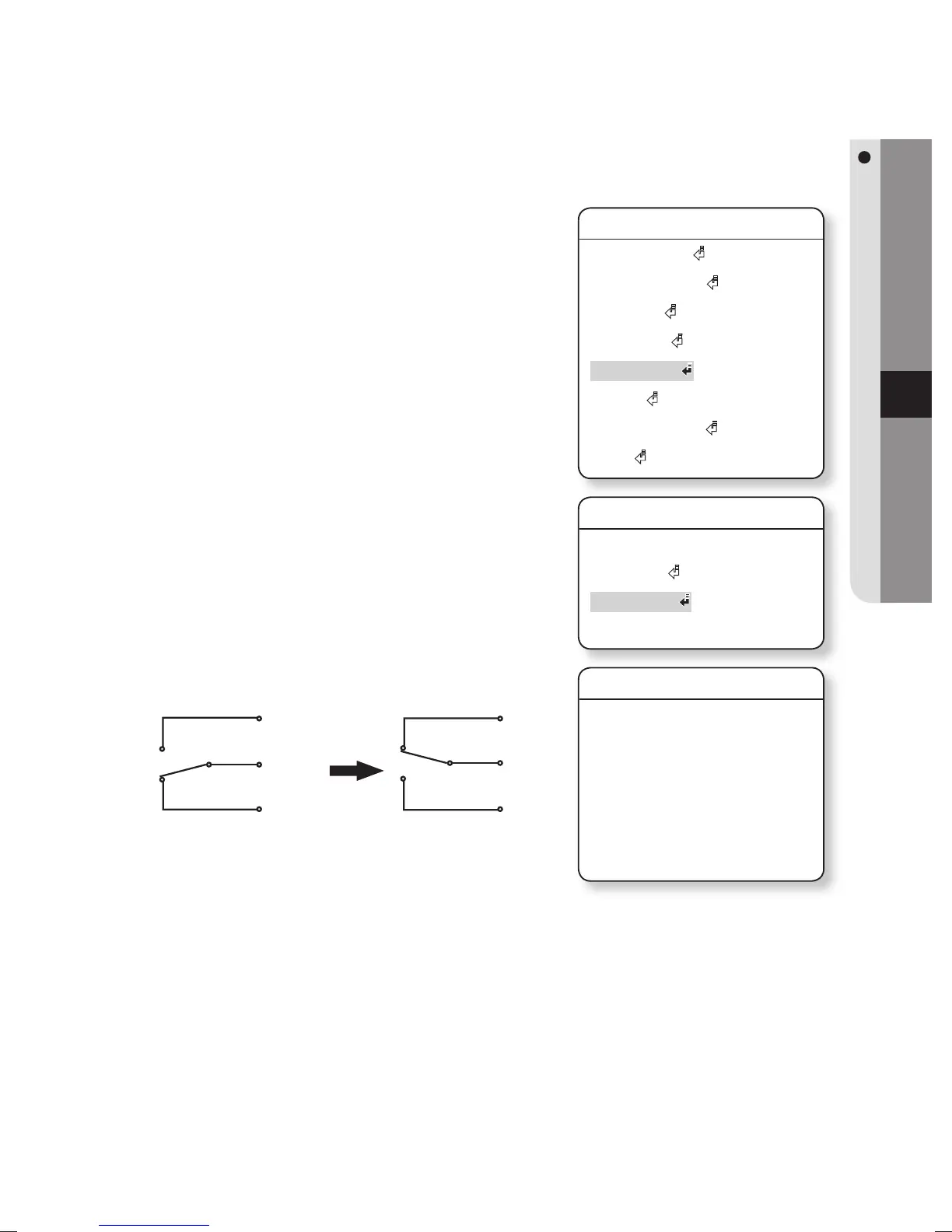

The Alarm Output is equipped with a relay
circuit. The operation of the alarm output port
is as shown in the diagram below.
Connecting the power connector and GND incorrectly to the NC/NO and COM ports
may cause a short circuit and fi re, damaging the camera.
The maximum power capacity of the built-in relay is 30VDC/2A, 125VAC/0.5A, and
250VAC/0.25A. Operating the camera beyond the capacity may decrease the
camera’s lifespan and damage it.
►
•
•
-
-
❋
M
Main Menu
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Password Setting
Status
Alarm Setting
Alarm Enable OFF
Alarm Input
Alarm Output
MD Dwell Time OFF
Alarm Output
Setting 1
þ
1
þ
2
þ
MD
þ
AUX
Setting 2
þ
1
þ
2
þ
MD
þ
AUX
Timer 1 OFF
Timer 2 OFF
OUT Off 1
OUT Off 2
NO
COM
NC
Alarm Out OFF
NO
COM
NC
Alarm Out ON
